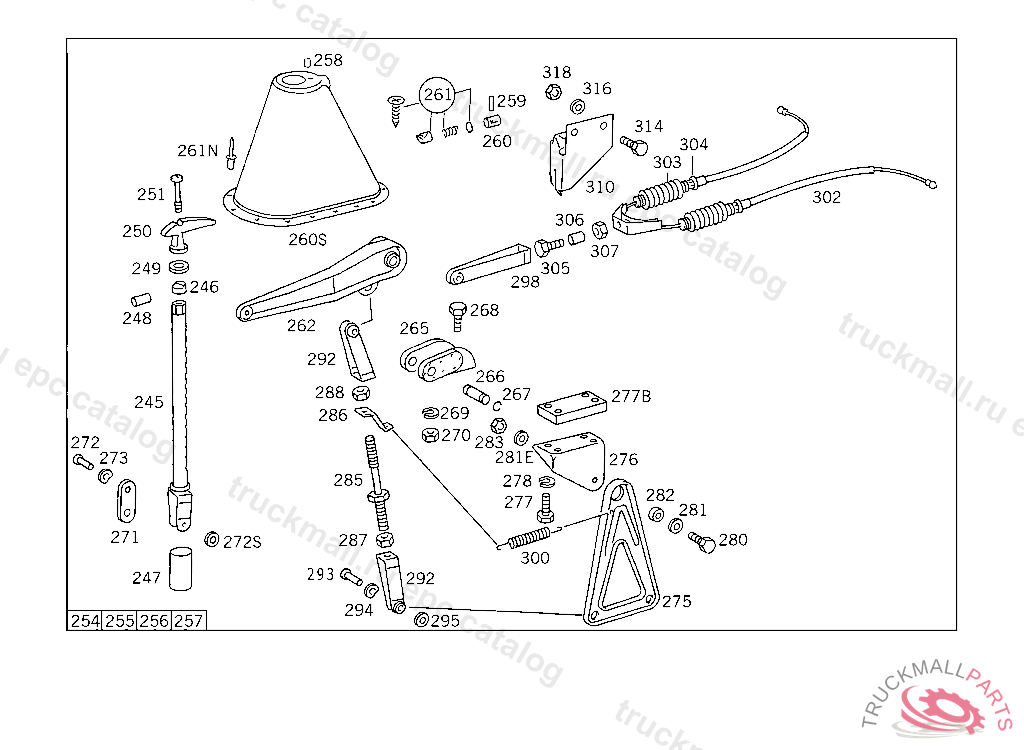

Поз.
Артикул
Описание
245
RATCHET ROD
245
RATCHET ROD
245
RATCHET ROD PISTOL-GRIP HAND BRAKE,001674
245
RATCHET ROD PISTOL-GRIP HAND BRAKE,001675
246
SPACER RING , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
247
PROTECTIVE CAP , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
248
GROOVED PIN , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
249
DAMPING RING
250
HANDLETO 341 420 00 88
250
HANDLE PISTOL-GRIP HAND BRAKE,001674
251
SCREW , TO BE ADAPTED DURING ASSEMBLY
251
SCREW PISTOL-GRIP HAND BRAKE,001674
251
SCREW
254
PROTECTIVE PLATE
255
PAWL , Replaced By: A3145860142
256
DRUCKFEDER. SPRING , Replaced By: A3145860142
257
PLATE , Replaced By: A3145860142
258
GROOVED PIN AS REQUIRED
259
GROOVED PIN
260
PLUG , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
265
BEARING BRACKET BRAKE LEVER,556499
265
BEARING BRACKET HAND BRAKE LEVER, UP TO CHASSIS 556499 EXCEPT FOR 553795,555902,556120
265
BEARING BRACKET BRAKE LEVER,309.070-091 000239309.170-191 001555
266
PIN BRAKE LEVER TO BEARING BRACKET,001674
266
PIN BRAKE LEVER TO BEARING BRACKET, UP TO CHASSIS 556499 EXCEPT FOR 553795,555902,556120
266
PIN BRAKE LEVER TO BEARING BRACKET,556499
267
SNAP RINGTO 000 431 94 14,000 431 96 14
268
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
268
SCREW PIPE CLAMP
268
SCREW , Replaced By: N304017008021
269
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
269
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
270
NUT , Replaced By: N910113010000
270
NUT STRAP TO BRACKET
271
CONNECTOR HAND BRAKE ROD TO HAND BRAKE LEVER,019560
272
PIN HAND BRAKE ROD TO HAND BRAKE LEVER,001674
272
PIN ,556500 ALSO INSTALLED ON 553210,556146
272
PIN
272
PIN HAND BRAKE ROD TO HAND BRAKE LEVER,019631 UP TO CHASSIS 556499 EXCEPT FOR 553795,555902,556120
272
PIN , Replaced By: N001444008210
275
LEVER (INTERMEDIATE LEVER),HAND BRAKE LINKAGE,001675 - 246593
275
LEVER PISTOL-GRIP HAND BRAKE
276
CONSOLE , 556499 EXCEPT FOR 553210,556146
276
CONSOLE INTERMEDIATE LEVER, UP TO CHASSIS 556499 EXCEPT FOR 553795,555902,556120
277
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
277
SCREW PIPE CLAMP
277
SCREW , Replaced By: N304017008053
277
SCREW , Replaced By: N304017008021
280
SCREW , Replaced By: N304017010002
280
SCREW BRACKET TO SIDE MEMBER
280
SCREW BRACKET TO FRAME SIDE MEMBER
281
WASHER , Replaced By: N009021010209
281
WASHER BRACKET TO COVERING
283
NUT STRAP TO BRACKET
283
NUT , Replaced By: N910113010000
285
PULL ROD BRAKE LINKAGE
285
ROD FRONT,001067-001674
285
PULL ROD BELT TIGHTENER
285
ROD FRONT,001066
286
CONNECTOR BRACKET
287
NUT BATTERY CABLE
287
NUT BRACKET TO SUPPORT AND TO END PIECE
288
NUT L.H. THREAD
292
END PIECE
293
PIN , 556499 EXCEPT FOR 553210,556146
294
SPRING WASHER SHIFTING ROD TO BRACKET
294
SPRING WASHER , Replaced By: N000137010205
295
WASHER , Replaced By: N000125010532
295
WASHER RADIATOR TO RUBBER MOUNTING
298
END PIECE HAND BRAKE, UP TO CHASSIS 556499 EXCEPT FOR 553795,555902,556120
300
SPRING RELEASE SPRING, UP TO CHASSIS 556499 EXCEPT FOR 553795,555902,556120
302
BRAKE CABLE3975 MM, 154487 556499 EXCEPT FOR 553210,556146
302
BRAKE CABLE ,001674
302
BRAKE CABLE , Replaced By: A3094201685
303
CUP ,156767 UP TO CHASSIS 556499 EXCEPT FOR 553795,555902,556120
304
THIMBLE , 154487 556499 EXCEPT FOR 553210,556146
305
SCREW BRACKET TO FRAME SIDE MEMBER
306
SPACER TUBE BRAKE CABLE TO FORK, 556499 EXCEPT FOR 553210,556146
307
NUT STRAP TO BRACKET
307
NUT , Replaced By: N910113010000
310
BRACKET RIGHT
310
BRACKET LEFT
314
SCREW BRACKET TO CROSS CONNECTION STRUT
314
SCREW PIPE CLAMP
314
SCREW , Replaced By: N304017008021
314
SCREW , Replaced By: N304017008034
316
WASHER , Replaced By: N000125008443
316
WASHER EXHAUST MUFFLER TO STRAP
318
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
318
NUT , Replaced By: N913004008001
999
NUT , 309.170-173,181-183,190,191 FROM CHASSIS 011044
999
NUT , Replaced By: N913002006009
999
NUT OIL TANK TO BRACKET
999
NUT AIR CLEANER ELEMENT
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT LICENSE PLATE TO BRACKET
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
999
RIVETED NUT REFRIGERANT LINE TO CAB REAR PANEL
999
SCREW FITTING , Replaced By: A4039971172
999
NUT. UNION NUT LINE CONNECTION
999
UNION NUT FUEL HOSE
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
BANJO UNION HEATING CONNECTION,K 169122
999
CLAMP ,K 147121, Replaced By: N000000000319
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
CLAMP , Replaced By: N000000000667
999
PIN HAND BRAKE LEVER 11X25,556500 ALSO INSTALLED ON 553210,556146
999
PIN ROD TO LEVER 11X36, FROM CHASSIS 556500 ALSO INSTALLED ON 553795,555902,556120
999
GROOVED PIN ,001674
999
CUTTING RING. GLAND LINE CONNECTION
999
GLAND , Replaced By: A0019901967
999
SCREW-IN FITTING LINE CONNECTION TO TRANSMISSION
999
WASHER STRUT TO CROSS MEMBER
999
TAPPING SCREW LINE MOUNTING,145737 ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701. EXCEPT FOR 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138.
999
SEAL RING FUEL LINE TO FEED PUMP
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
999
SHEET METAL SCREW , UP TO CHASSIS 150881
999
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
999
SCREW , Replaced By: A0029903712
999
SCREW , Replaced By: N000000001146
999
SCREW
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW PLATE TO VALVE M 6X70
999
SCREW REAR EXHAUST PIPE TO CLAMP
999
SCREW PUMP TO BRACKET
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW CLAMP TO EXHAUST PIPE
999
SCREW
999
SPRING WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
999
CLAMP FUEL HOSE TO FUEL LINE,063636
999
PULL ROD ,001066
999
TURNBUCKLE BELT TIGHTENER
999
RIVET BRACKET TO CAB FLOOR
999
NUT HEATING PIPE TO BRACKET
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
999
PIN PUSH ROD TO BRAKE PEDAL AND TO INTERMEDIATE LEVER
999
PIN PULL ROD TO INTERMEDIATE LEVER,001674
999
SCREW
999
NUT LINE CONNECTION
999
NUT BALL PIVOT TO LEVER
999
NUT TACHOGRAPH TO BRACKET
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREWTO 000 431 94 14,000 431 96 14
999
SCREW , Replaced By: A0099900101
999
SCREW , Replaced By: N000933008337
999
SCREW , Replaced By: N304017006016
999
SCREW , Replaced By: N304017006020
999
SCREW COVER PLATE TO BRACKET
999
SCREW BRACKET TO BELL HOUSING
999
SCREW , Replaced By: N304014010004
999
SCREW STRAP TO BRACKET
999
SCREWM 8X40
999
SCREW , Replaced By: N304014006005
999
LOCK RING
999
LOCK RING
999
WASHER , Replaced By: N000125010532
999
WASHER , Replaced By: N000125008443
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
COTTER PINROCKINGER TYP 260 G140
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
SCREW ,374026
999
UNION NUT LINE CONNECTION
999
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
999
SCREW CLAMP MOUNTING M 6X16
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE
999
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
999
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
999
PIN BELT TIGHTENER
999
FITTING FROM INTAKE MANIFOLD TO VACUUM LINE, FROM IDENT NO.002799-360785
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: A3604300143
999
CLAMP , Replaced By: N916016008200
999
LINE FROM MASTER CYLINDER TO INTERMEDIATE PIECE 1850 MM
999
LINE FROM BRAKE POWER REGULATOR TO BRAKE PRESSURE RELIEF 1200 MM
999
LINE FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE 1100 MM
999
SPACER TUBE (INTERMEDIATE LEVER),HAND BRAKE LINKAGE,001674
999
SPRING ,556500 ALSO INSTALLED ON 553210,556146
999
REPAIR KIT , Replaced By: A3144200092
999
NUT PISTOL-GRIP HAND BRAKE,001674
999
HOSE , Replaced By: A3109970282
999
GROMMETD6/32
999
BRACKET
999
SUPPORT BRAKE BOOSTER ASSEMBLY, FROM CHASSIS012115530029
999
SUPPORT , Replaced By: A3104301139, +001A3104200781
999
LINE FROM INTAKE MANIFOLD,OR VACUUM PUMP,TO BRAKE BOOSTER, FROM IDENT NO. 003865-145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
999
CONNECTOR HAND BRAKE LEVER,556500 ALSO INSTALLED ON 553210,556146
999
BUSHING LEVER TO CONSOLE
999
BEARING BODY ,556500 ALSO INSTALLED ON 553210,556146
999
CUP , FROM CHASSIS 556500 ALSO INSTALLED ON 553795,555902,556120 UP TO CHASSIS 558850,FROM CHASSIS SEE UNIT MICROFICHE 741.203
999
SPHERICAL PIECE ,556500 ALSO INSTALLED ON 553210,556146
999
ROD , FROM CHASSIS 556500 ALSO INSTALLED ON 553795,555902,556120
