Поз.
Артикул
Описание

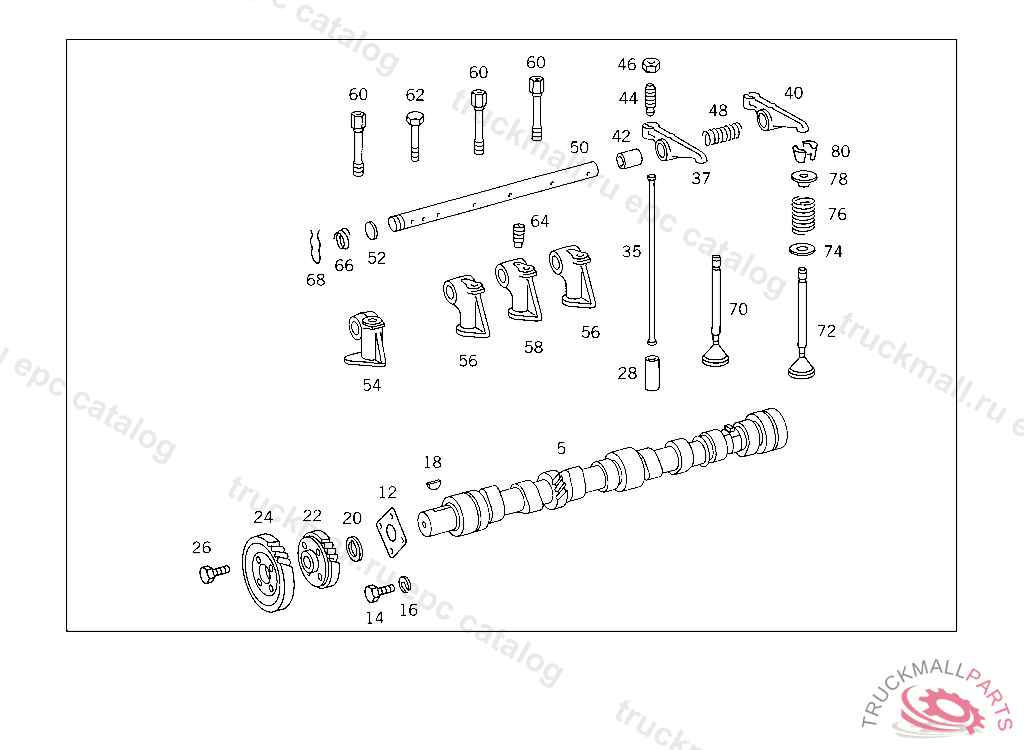

5
CAMSHAFT , UP TO ENGINE 128148,FROM ENGINE 128149 SEE SA B83 158
12
THRUST WASHER CAMSHAFT FIXING, 340.930 FROM ENGINE 085456 ONLY APPLICABLE TO ENGINES WITH CAMSHAFT DRIVEN INJECTION TIMING DEVICE
12
THRUST WASHER ,104742, 340.919/002-007/010-014 INAPPLICABLE TO ENGINES WITH CAMSHAFT DRIVEN INJECTION TIMING DEVICE
12
THRUST WASHER , Replaced By: A3120520262
14
SCREW COVER PLATE TO COVER PLATE
14
SCREW , Replaced By: A3529900704
14
SCREW COVER PLATE TO COVER PLATE
16
LOCK WASHER RAIL TO BATTERY SUPPORT
18
WOODRUFF KEY CRANKSHAFT
20
SPACER RING ,104742, 340.919/002-007/010-014 INAPPLICABLE TO ENGINES WITH CAMSHAFT DRIVEN INJECTION TIMING DEVICE
22
DRIVE GEAR
24
CAMSHAFT GEAR
26
SCREW LINES TO BRACKET
28
VALVE TAPPET REPAIR SIZE I 28.18 MM-28.19 MM
28
VALVE TAPPET REPAIR SIZE II 28.48 MM-28.49 MM
28
VALVE TAPPET REPAIR SIZE I 28.18 MM-28.19 MM
28
VALVE TAPPET REPAIR SIZE III 28.73 MM,28.74 MM
28
VALVE TAPPET STANDARD 27.98 MM,27.99 MM,729031
28
VALVE TAPPET REPAIR SIZE III 28.73 MM - 28.74 MM
28
VALVE TAPPET , Replaced By: A3440547301
28
VALVE TAPPET , Replaced By: A3440547201
28
VALVE TAPPET , Replaced By: A3440547101
28
VALVE TAPPET , Replaced By: A3440547001
28
VALVE TAPPET , Replaced By: A3520540801
28
VALVE TAPPET , Replaced By: A3520540701
28
VALVE TAPPET , Replaced By: A3520540601
28
VALVE TAPPET , Replaced By: A3520540501
28
VALVE TAPPET REPAIR SIZE II 28.48 MM-28.49 MM
28
VALVE TAPPET STANDARD 27.98 MM-27.99 MM
35
PUSH ROD , Replaced By: A3520540205
35
PUSH ROD
35
PUSH ROD
37
ROCKER ARMNO. 1, NO. 3, NO. 5, NO. 7
37
ROCKER ARM LEFT NO.1,NO.3,NO.5,NO.7
40
ROCKER ARMNO.2,NO.4,NO.6,NO.7
40
ROCKER ARMNO. 2, NO. 4, NO. 6, NO. 8
42
BUSHINGTO 352 050 06 34,352 050 10 33
42
BUSHINGTO 366 050 05 33,04 34
44
BALL PIN ROCKER ARM
46
NUT , Replaced By: A4229900051
46
NUT
48
SPRING LONG,ROCKER ARM SPACING
50
ROCKER ARM SPINDLE
52
EXPANSION PLUG LATERAL P.T.O. WITH REVERSE SPEED
54
ROCKER ARM BRACKET , Replaced By: A3520550610
54
ROCKER ARM BRACKET OIL SUPPLY NO.1
56
ROCKER ARM BRACKET , Replaced By: A3520550410
56
ROCKER ARM BRACKETNO.2,5,6
58
ROCKER ARM BRACKET , Replaced By: A3520550210, +001N000417006001
58
ROCKER ARM BRACKETNO.3
60
SCREW , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 177596, Replaced By: A3669900104
60
SCREW ROCKER SHAFT TO CYLINDER HEAD
62
SCREW , Replaced By: A0029903804
64
HEADLESS SETSCREW PLANET GEAR, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
66
SPRING
68
SPRING
70
INTAKE VALVE , Replaced By: A3520500026
72
EXHAUST VALVE
72
EXHAUST VALVE , Replaced By: A3660500627
72
EXHAUST VALVE , Replaced By: A3660500027
74
WASHER
74
WASHER VALVE SPRING
76
VALVE SPRING
76
VALVE SPRING
78
SPRING RETAINER
80
VALVE COLLET
80
VALVE COLLET
999
CLAMP
