Поз.
Артикул
Описание

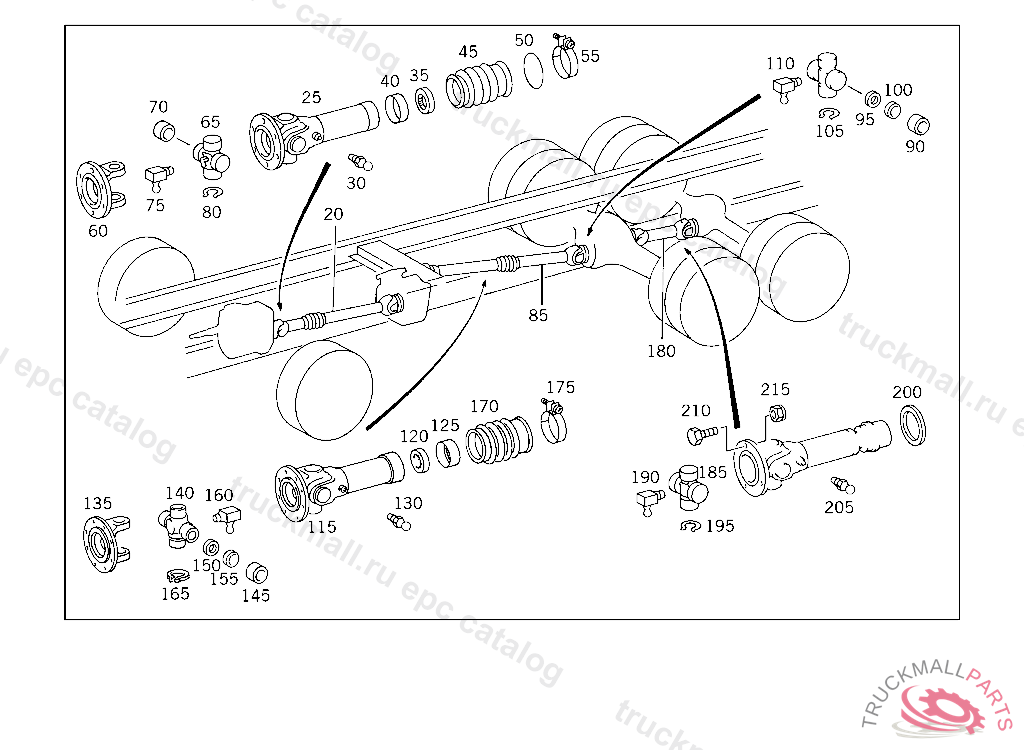

20
PROPELLER SHAFT REAR,FROM TRANSMISSION TO TRANSFER CASE
20
PROPELLER SHAFT FROM TRANSMISSION TO TRANSFER CASE 1866 MM
20
PROPELLER SHAFT REAR,FROM TRANSMISSION TO TRANSFER CASE
25
UNIVERSAL JOINT YOKE REAR PROPELLER SHAFT
30
GREASE NIPPLE , Replaced By: N071412008102
35
SEAL RING , PROPELLER SHAFT WITH BOOT
40
SPACER RING
45
BOOT
45
BOOT REAR PROPELLER SHAFT
50
WIRE RING , WITH BOOT
55
LOOM TIE. CLAMP
60
DRIVE FLANGE
65
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
65
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
70
BEARING BUSHING
75
GREASE NIPPLE
75
GREASE NIPPLE
80
SNAP RING2.500 MM
80
SNAP RING2.525 MM
80
SNAP RING2.500 MM
80
SNAP RING2.700 MM
80
SNAP RING2.625 MM
80
SNAP RING2.725 MM
80
SNAP RING2.700 MM
80
SNAP RING2.650 MM
80
SNAP RING2.650 MM
80
SNAP RING2.600 MM
80
SNAP RING2.550 MM
80
SNAP RING2.675 MM
80
SNAP RING2.600 MM
80
SNAP RING2.750 MM
80
SNAP RING2.550 MM
80
SNAP RING2.575 MM
80
SNAP RING2.750 MM
85
PROPELLER SHAFT FROM TRANSFER CASE TO REAR AXLE I 1406 MM
90
BEARING BUSHING UNIVERSAL JOINT CROSS
95
GASKET REAR PROPELLER SHAFT, NOT USED
100
SEAL HOLDER REAR PROPELLER SHAFT, NOT USED
105
LOCK1.725 MM
105
LOCK1.825 MM
105
LOCK1.700 MM
105
LOCK1.775 MM
105
LOCK1.750 MM
105
LOCK1.800 MM
110
GREASE NIPPLE
110
GREASE NIPPLE
115
UNIVERSAL JOINT , Replaced By: A3354100728
115
UNIVERSAL JOINT
120
GASKET
125
SEAL HOLDER
130
GREASE NIPPLE , Replaced By: N071412008102
135
DRIVE FLANGE
140
UNIVERSAL JOINT CROSS WITH BUSHINGS
145
LOCK AS REQUIRED 1.85 MM
145
BEARING BUSHING UNIVERSAL JOINT CROSS
150
GASKET REAR PROPELLER SHAFT, NOT USED
155
SEAL HOLDER REAR PROPELLER SHAFT, NOT USED
160
GREASE NIPPLE
160
GREASE NIPPLE
165
LOCK1.750 MM
165
LOCK1.775 MM
165
LOCK1.800 MM
165
LOCK1.700 MM
165
LOCK1.825 MM
165
LOCK1.725 MM
170
BOOT
175
CLAMP. LOOM TIE90-110
175
LOOM TIE. CLAMP
175
LOOM TIE
180
PROPELLER SHAFT FROM REAR AXLE I TO REAR AXLE II
185
UNIVERSAL JOINT CROSS , Replaced By: A3854100531
190
GREASE NIPPLE
190
GREASE NIPPLE
195
LOCK RING AS REQUIRED 1.75 MM
195
LOCK AS REQUIRED 1.70 MM
195
LOCK , Replaced By: N000472048000
195
LOCK , Replaced By: A0069941441
195
LOCK , Replaced By: A0069941241
195
LOCK , Replaced By: A0069940841
195
LOCK , Replaced By: A0069940641
200
SEAL RING
205
GREASE NIPPLE , Replaced By: N071412008102
210
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
210
SCREW , Replaced By: N308676012013
210
SCREW , Replaced By: A3609903001
215
NUT ALTERNATOR TO SUPPORT
999
BEARING RING , INTERMEDIATE BEARING, BALL BEARING WITH LOCK
999
UNIVERSAL JOINT
999
PROPELLER SHAFT
999
PROPELLER SHAFT
999
NUT FOLLOWER FLANGE TO PROPELLER SHAFT
999
BALL BEARING
999
BRACKET INTERMEDIATE BEARING
999
BRACKET INTERMEDIATE BEARING
999
PROPELLER SHAFT FROM PROPELLER SHAFT BEARING TO REAR AXLE I 1530 MM, 401,402,403,420,424,431,432,433,441,445 FROM CHASSIS 588186
999
PROPELLER SHAFT
999
PROPELLER SHAFT FROM PROPELLER SHAFT BEARING TO REAR AXLE I 1650 MM, 401,402,403,420,424,431,432,433,441,445 FROM CHASSIS 588186
999
PROPELLER SHAFT FROM REAR AXLE I TO REAR AXLE II 716 MM, 401,402,403,420,424,431,432,433,441,445 FROM CHASSIS 588186
999
CENTERING FLANGE INTERMEDIATE BEARING NO.1
999
REINFORCEMENT BRACKET TO CROSS MEMBER,024208
999
RUBBER MOUNTING INTERMEDIATE BEARING NO.1
999
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
999
UNIVERSAL JOINT REAR PROPELLER SHAFT
999
UNIVERSAL JOINT
