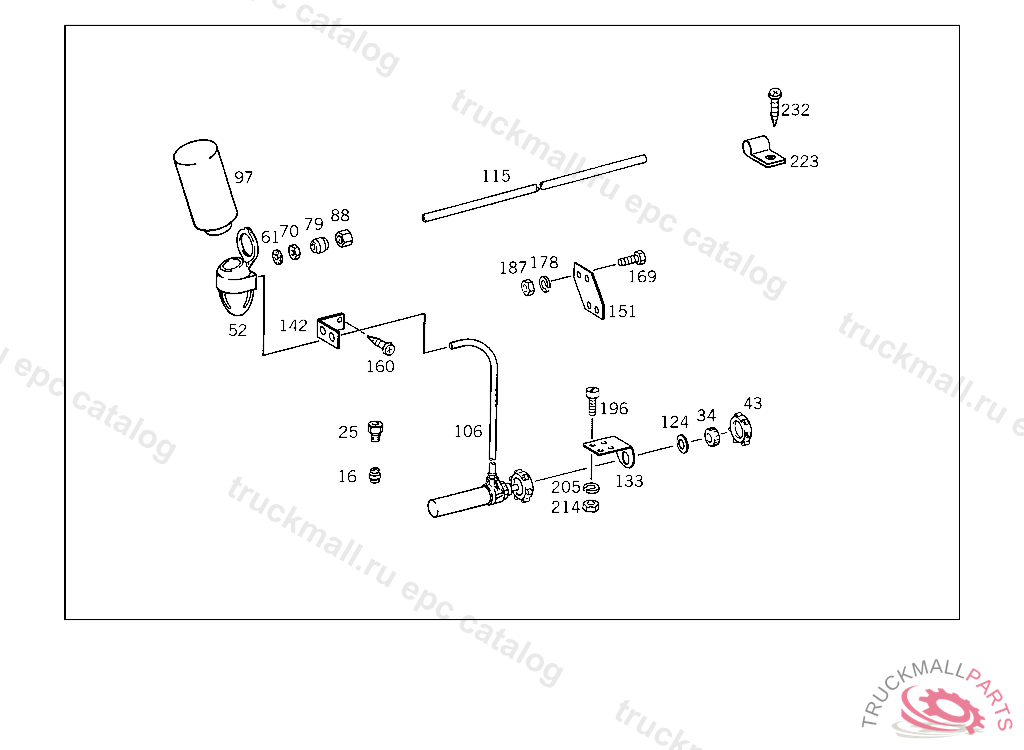

Поз.
Артикул
Описание
7
PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 162440, Replaced By: A0005502383
16
SEAL CONE , Replaced By: A0005550618
25
SCREW CONNECTION
34
NUT , Replaced By: A0005550372
43
HANDLE , Replaced By: A0005550440
52
PRIMER CAPSULE , Replaced By: A0005501404
61
TOOTHED WASHER , Replaced By: N006797008120
61
TOOTHED WASHER LEVER TO AIR SPRING VALVE,K 186867
70
NUT
79
SEAL CONE , Replaced By: A0005550618
88
NUT , Replaced By: A0009949454
88
NUT REPAIR KIT
97
FILLING CYLINDER PRIMING FUEL
106
HOSE FROM HAND PUMP TO PRIMER CAPSULE
106
HOSE FROM HAND PUMP TO PRIMER CAPSULE
115
HOSE FROM PRIMER CAPSULE TO SPRAY NOZZLE
115
HOSE FROM PRIMER CAPSULE TO SPRAY NOZZLE
124
WASHER , ON SPECIAL REQUEST
133
BRACKET STARTER PILOT PUMP TO WINDOW SILL
142
BRACKET STARTER PILOT PUMP TO WINDOW SILL
151
BRACKET PRIMER CAPSULE
160
SHEET METAL SCREW STARTER PILOT PUMP TO WINDOW SILL
169
SCREW SCREENING PLATE TO BRACKET,K 142858
178
LOCK WASHER RAIL TO BATTERY SUPPORT
187
NUT , Replaced By: N304032008006
196
SCREW CONTROL UNIT
205
LOCK WASHER PLUG SOCKET
214
NUT TACHOGRAPH TO BRACKET
223
CLAMP , Replaced By: N916016008200
223
CLAMP ,K 147121, Replaced By: N000000000319
232
SHEET METAL SCREW PRIMER-CAPSULE-TO-INTAKE-ELBOW FUEL LINE
