Mercedes A3520530320 - ПРУЖИНА КЛАПАНА

OM 355/5 345.972

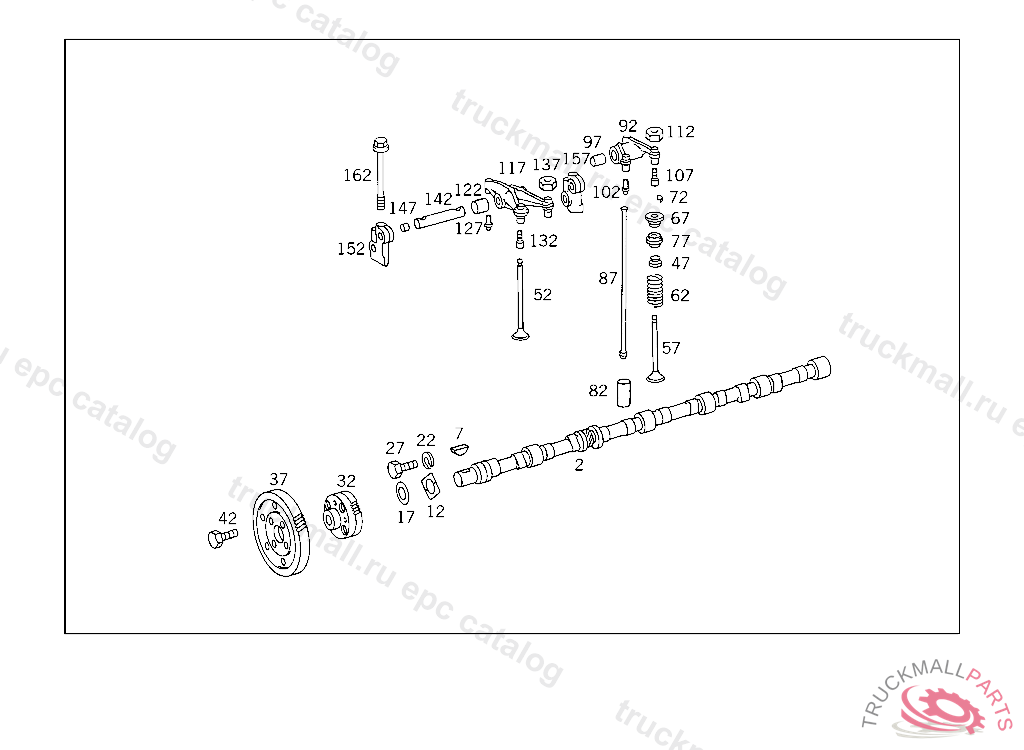

05 TIMING ENGINE - 001 TIMING

Поз.
Артикул
Описание
2
A3450510001
CAMSHAFT
7
N006888006006
WOODRUFF KEY CRANKSHAFT
12
A3460520162
THRUST WASHER
17
A3460770052
SPACER WASHER
22
N912004008100
LOCK WASHER RAIL TO BATTERY SUPPORT
27
N000912008047
SCREW HYDRAULIC CLUTCH TO ENGINE, 021,023 UP TO CHASSIS 086009
32
A3460770014
DRIVE GEAR
37
A3460520001
CAMSHAFT GEAR
47
A3520530296
BOOT INTAKE TO 352 05312 29-15 29
52
A3460530005
EXHAUST VALVE SEE ALSO GROUP 05
57
A3460530001
INTAKE VALVE SEE ALSO GROUP 05
62
A3520530320
VALVE SPRING
67
A3220530125
SPRING RETAINER
72
A3430537027
VALVE COLLET
72
A3120530127
VALVE COLLET
77
A3450537025
SPRING RETAINER. SPACER RING
77
A3260530325
SPACER RING
82
A3460540201
VALVE TAPPET
82
A3450547301
VALVE TAPPET REPAIR SIZE III 34.73 MM
82
A3450547201
VALVE TAPPET REPAIR SIZE II 34.48 MM
82
A3450547101
VALVE TAPPET REPAIR SIZE I 34.18 MM
82
A3550540101
VALVE TAPPET
82
A3450547001
VALVE TAPPET
87
A3260540605
PUSH ROD INTAKE
87
A3260540705
PUSH ROD EXHAUST
87
A3450547105
PUSH ROD INTAKE
87
A3450547205
PUSH ROD EXHAUST
92
A3460500033
ROCKER ARM INTAKE VALVE
97
A3460550250
BUSHING
102
A3260550221
BALL PIN
107
A3550500120
SET SCREW
107
A3260500220
SET SCREW
112
A3269900151
NUT
117
A3460500034
ROCKER ARM EXHAUST VALVE
122
A3460550250
BUSHING
127
A3260550221
BALL PIN
132
A3550500120
SET SCREW
132
A3260500220
SET SCREW
137
A3269900151
NUT
142
A3450507031
ROCKER ARM SPINDLE
147
A3269970520
EXPANSION PLUG
152
A3260550210
ROCKER ARM BRACKET FRONT
157
A3260550310
ROCKER ARM BRACKET REAR
162
A3269900001
SCREW ROCKER ARM BRACKET TO CYLINDER HEAD
999
A3220530420
VALVE SPRING
