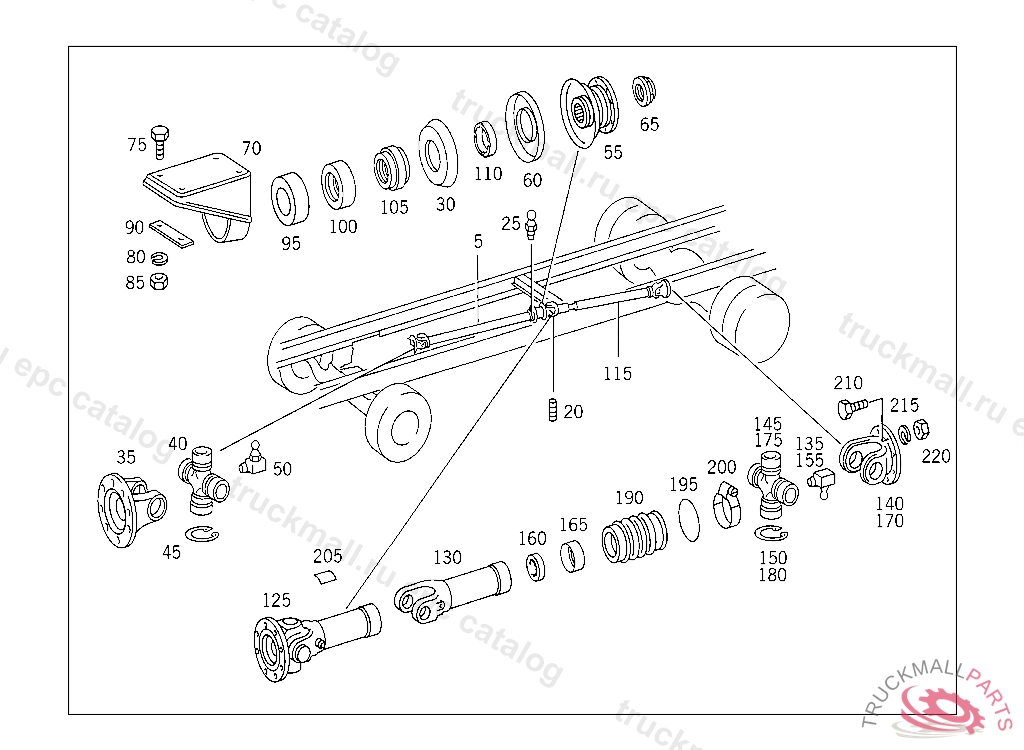

Поз.
Артикул
Описание
5
PROPELLER SHAFT , Replaced By: A3444100204
25
GREASE NIPPLE INTERMEDIATE LEVER
30
PROTECTIVE CAP
35
DRIVE FLANGE
40
UNIVERSAL JOINT CROSS , Replaced By: A3854100231
45
SNAP RING2.550 MM
45
SNAP RING2.700 MM
45
SNAP RING2.600 MM
45
SNAP RING2.650 MM
45
SNAP RING2.750 MM
45
SNAP RING2.500 MM
50
GREASE NIPPLE
50
GREASE NIPPLE
55
CENTERING FLANGETO 318 410 03 01
60
PROTECTIVE CAP
65
NUT FOLLOWER FLANGE TO PROPELLER SHAFT
70
70
BRACKET INTERMEDIATE SHAFT BEARING
75
SCREW INTERMEDIATE PIECE,ADAPTER HOUSING
75
SCREW , Replaced By: N304017010002
80
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
85
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
95
100
RUBBER MOUNTING PROPELLER SHAFT BEARING
105
BALL BEARING
105
BALL BEARING PROPELLER SHAFT BEARING
110
BEARING RING , INTERMEDIATE BEARING, BALL BEARING WITH LOCK
115
125
UNIVERSAL JOINT YOKE REAR PROPELLER SHAFT
130
UNIVERSAL JOINT YOKE
130
UNIVERSAL JOINT YOKE , Replaced By: A3024110405
135
GREASE NIPPLE INTERMEDIATE LEVER
140
DRIVE FLANGE
145
UNIVERSAL JOINT CROSS , Replaced By: A3854100231
150
SNAP RING2.550 MM
150
SNAP RING2.700 MM
150
SNAP RING2.600 MM
150
SNAP RING2.500 MM
150
SNAP RING2.750 MM
150
SNAP RING2.650 MM
155
GREASE NIPPLE
155
GREASE NIPPLE
160
SEAL RING , PROPELLER SHAFT WITH BOOT
165
SEAL HOLDER , PROPELLER SHAFT WITH BOOT
170
DRIVE FLANGE
175
UNIVERSAL JOINT CROSS , Replaced By: A3854100231
180
SNAP RING2.550 MM
180
SNAP RING2.700 MM
180
SNAP RING2.600 MM
180
SNAP RING2.650 MM
180
SNAP RING2.750 MM
180
SNAP RING2.500 MM
190
BOOT
195
WIRE RING , WITH BOOT
200
CLAMP , WITH BOOT
205
BALANCING PLATE AS REQUIRED 120 MM
205
BALANCING PLATE AS REQUIRED 190 MM
205
BALANCING PLATE AS REQUIRED 60 MM
205
BALANCING PLATE AS REQUIRED 80 MM
205
BALANCING PLATE AS REQUIRED 160 MM
205
BALANCING PLATE AS REQUIRED 200 MM
205
BALANCING PLATE AS REQUIRED 100 MM
205
BALANCING PLATE AS REQUIRED 95 MM
205
BALANCING PLATE AS REQUIRED 30 MM
205
BALANCING PLATE AS REQUIRED 20 MM
210
SCREW , Replaced By: A0079901001
210
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
215
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
220
NUT , Replaced By: N308673010001
999
999
UNIVERSAL JOINT YOKE , PROPELLER SHAFT WITH BOOT
999
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
