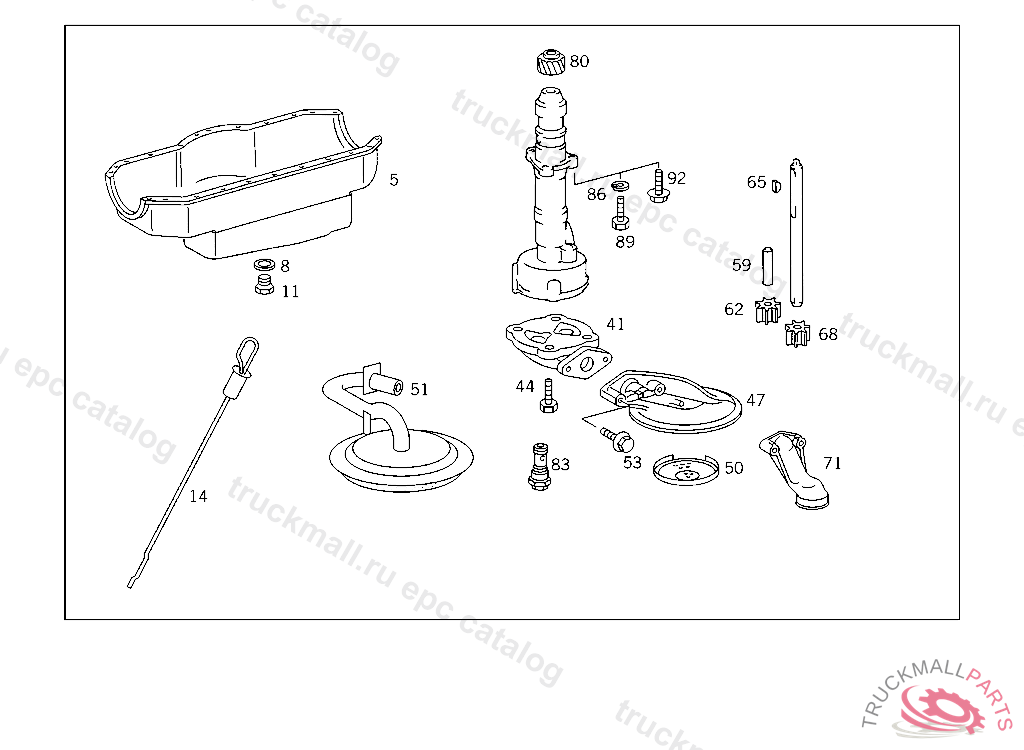

Поз.
Артикул
Описание
5
OIL PAN
5
OIL PAN , Replaced By: A3520100513
8
SEAL RING OIL DRAIN
11
SCREW PLUG OIL DRAIN
14
OIL DIPSTICK , 055020
14
OIL DIPSTICK , 055021
41
COVER
44
SCREW BRACKET TO APPARATUS SUPPORT
44
SCREW , Replaced By: A0069909301
47
SUCTION BASKET OIL PUMP, 343.919-016 FROM ENGINE 122780 343.919-016 UP TO ENGINE 104827 INAPPLICABLE TO MODEL 343.919-003,005,006,010,012,015
50
STRAINER
51
COTTER PIN SUCTION PIPE TO OIL PUMP
53
COMBINATION BOLT SUCTION BASKET TO OIL PUMP COVER M 8X55, 343.919-016 FROM ENGINE 122780 343.919-016 UP TO ENGINE 104827 INAPPLICABLE TO MODEL 343.919-003,005,006,010,012,015
59
OIL PUMP SHAFT
59
OIL PUMP SHAFT , Replaced By: A3521810010
62
GEAR , Replaced By: A3141810306
62
GEAR
62
GEAR ,033299-069907
65
WOODRUFF KEY
68
GEAR ,000033000140
68
GEAR
68
GEAR ,000032, Replaced By: A3141810206, +001A3521810405, +001A3521811108
71
SUCTION BASKET ,291735, Replaced By: A3521801055
71
SUCTION BASKET
71
SUCTION BASKET , Replaced By: A3521801855
80
HELICAL GEAR ,000032, Replaced By: A3521811008, +001A3521810405, +001A3141810206
80
HELICAL GEAR , Replaced By: A3521811108
80
HELICAL GEAR
83
VALVE , Replaced By: A3521800015
83
PRESSURE RELIEF VALVE , Replaced By: A3521800315
83
PRESSURE RELIEF VALVE
86
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
89
SCREW BRACKET TO EXHAUST PIPE BRACKET
89
SCREW , Replaced By: N304017008024
92
SCREW ,12/96
999
DRIVE SHAFT ,000032, Replaced By: A3521810205, +001A3141810206, +001A3521811108
999
COVER ,000032
999
HOUSING , Replaced By: A3521812201
999
SUCTION PIPE
999
OIL PUMP , 067707, Replaced By: A3521807001, +001A3521800955, +001A3121860080, +002N914010008008
999
HOUSING ,000032, Replaced By: A3521807001, +001A3521800855, +001A3121860080, +002N914010008008
999
OIL PUMP , Replaced By: A3521807001, +001A3521800955, +001A3121860080, +002N914010008008
999
OIL PUMP ,121334165925, Replaced By: A3521804801, +001A3431800055, +002N914010008000
999
DRIVE SHAFT , 03081673.5 KW (100 PS) 02551080.9 KW (110 PS) 06737492.6 KW (126 PS) 003613 110.3 KW (150 PS)
999
HOUSING
