Поз.
Артикул
Описание
8

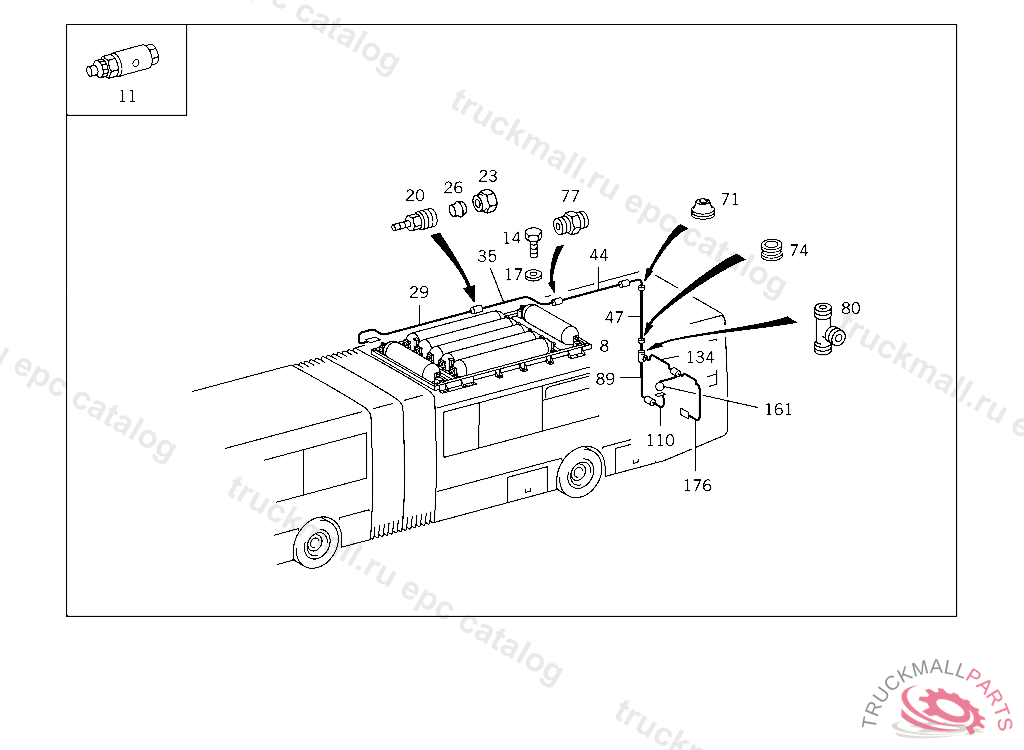

L.P. GAS SYSTEM
11
VALVE
14
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
17
WASHER , Replaced By: A3859900640
17
WASHER SUPPORT TO SIDE MEMBER,4 394527
20
ELBOW FITTING ROOF TO SEPARATING POINT I
23
NUT12 MM
26
SEAL CONE FRONT 12 MM
26
SEAL CONE REAR 12 MM
29
LINE ROOF TO SEPARATING POINT I
29
LINE ROOF TO SEPARATING POINT I
35
LINE FROM SEPARATIN POINT 1 TO SEPARATING POINT 2
44
LINE FROM SEPARATING POINT E TO SEPARATING POINT 3
47
LINE FROM SEPARATION POINT TO T-FITTING
47
LINE FROM SEPARATION POINT TO T-FITTING
47
LINE FROM SEPARATION POINT TO T-FITTING
71
GROMMET LINE CONNECTION
74
GROMMET
77
ELBOW FITTING SEPARATION POINT
80
T-FITTING
89
LINE FROM T-FITTING TO BALL COCK
89
LINE FROM T-FITTING TO BALL COCK
89
LINE FROM T-FITTING TO BALL COCK
110
LINE FROM BALL COCK TO FILLING VALVE
110
LINE FROM BALL COCK TO FILLING VALVE
134
LINE FROM T-FITTING TO T-FITTING
134
LINE FROM T-FITTING TO CROSS FITTING
161
LINE FROM CROSS FITTING TO FILLING VALVE
161
LINE FROM CROSS FITTING TO FILLING VALVE
176
LINE FROM CROSS FITTING TO BALL COCK
176
LINE FROM T-FITTING TO BALL COCK
999
LINE FROM THERMOSTAT TO CONNECTING HOSE
999
LINE FROM THERMOSTAT TO CONNECTING HOSE
999
COOLING WATER PIPE FROM ENGINE TO EXPANSION TANK
999
COOLING WATER PIPE FROM COMPRESSOR TO EXPANSION TANK
999
COOLING WATER PIPE COOLING WATER RETURN LINE
