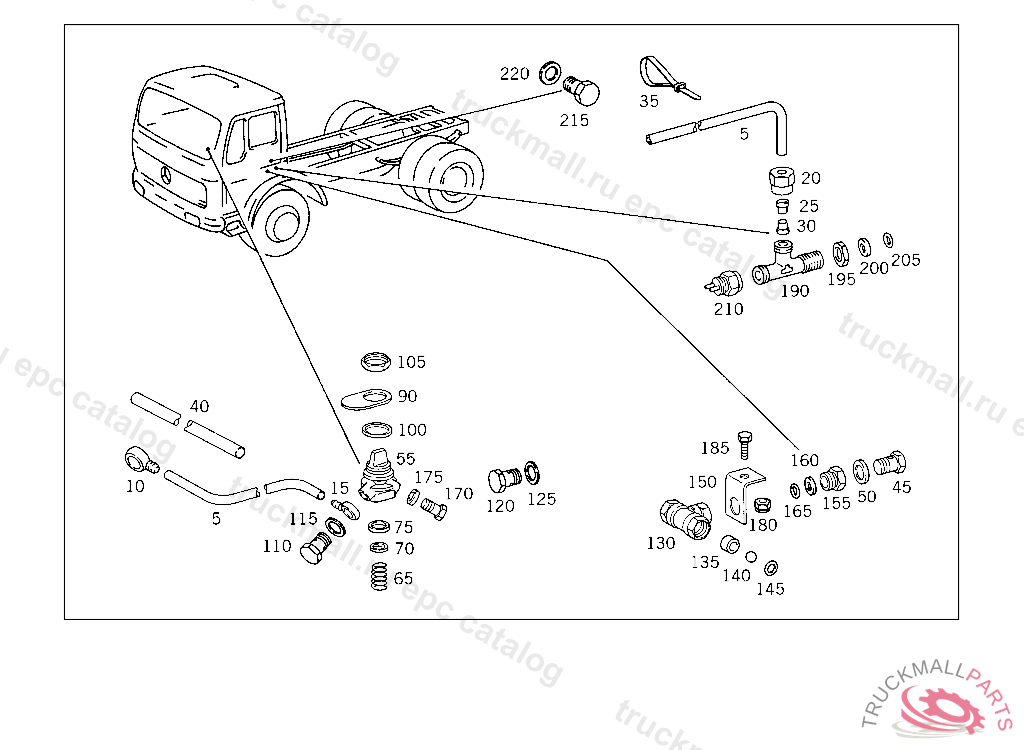

Поз.
Артикул
Описание
5
HOSE FROM WARNING INDICATOR TO AIR CLEANER, ORDER BY THE METER
10
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
15
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
20
UNION NUT
25
SEAL CONE
25
GLAND , Replaced By: A0019901667
30
SLEEVE LEAK LINE
30
BUSHING , Replaced By: N915062004000
35
LOOM TIE LINE MOUNTING
35
LOOM TIE LINE MOUNTING 280 MM
40
INSULATING HOSE6 X 0.6 MM, ORDER BY THE METER
45
HOLLOW SCREW HEATING CONNECTION
50
SEAL RING LINE CONNECTION
55
VALVE 3/2-WAY VOSS
55
VALVE 3/2-WAY KNORR
55
VALVE 3/2-WAY BOSCH
55
VALVE 3/2-WAY WABCO
65
SPRING INSIDE WABCO
70
SEAL RING INSIDE WABCO
75
SEAL RING TOP WABCO
90
UNIT IDENTIFICATION PLATE LONGITUDINAL DIFFERENTIAL LOCK
100
WASHER AT TWO-WAY VALVE
105
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
110
HOLLOW SCREW LINE TO OIL RADIATOR
115
SEAL RING , Replaced By: N007603010110
115
SEAL RING PNEUMATIC VALVE
120
HOLLOW SCREW LINE CONNECTION
120
HOLLOW SCREW VALVE
125
SEAL RING , Replaced By: N007603010110
125
SEAL RING PNEUMATIC VALVE
130
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
130
VALVE TWO-WAY VOSS
135
VALVE , Replaced By: A0004290782
140
BALLTO 003 429 22 44
145
GASKETTO 003 429 22 44
150
BRACKET AT TWO-WAY VALVE
155
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
160
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
160
THRUST RING CHECK VALVE TO AIR RESERVOIR
165
O-RING CHECK VALVE TO AIR RESERVOIR
170
HOLLOW SCREW HEATING CONNECTION
175
SEAL RING LINE CONNECTION
180
NUT , Replaced By: N910113010000
180
NUT STRAP TO BRACKET
185
SCREW , Replaced By: N304017010002
185
SCREW BRACKET TO SIDE MEMBER
190
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
195
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
200
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
200
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
205
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
210
SWITCH EXHAUST BRAKE,K 251255
215
HOLLOW SCREW HEATING CONNECTION
220
SEAL RING LINE CONNECTION
999
VALVE , Replaced By: A0004291182
999
VALVE BODYTO 002 429 95 44
999
PLUG CAB FLOOR SEALING
999
BRACKET SENSOR CABLE TO FRONT AXLE
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
HOLLOW SCREW LINE CONNECTION
