Поз.
Артикул
Описание

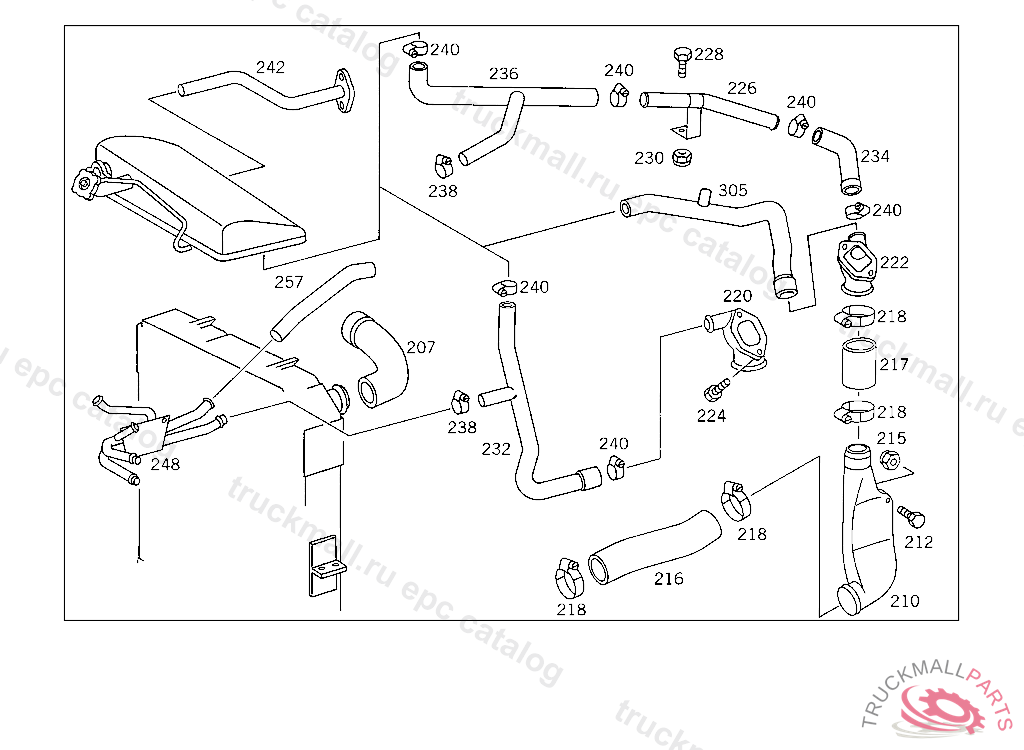

207
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
207
HOSE FROM RADIATOR TO THERMOSTAT
210
PIPE ELBOW AT WATER PUMP,5 510518
210
PIPE ELBOW AT WATER PUMP,5 1935955 510517
212
SCREW RADIATOR M 10X45
215
NUT , Replaced By: N910113010000
215
NUT STRAP TO BRACKET
216
HOSE FROM RADIATOR TO WATER PUMP,5 193595
217
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
218
CLAMP HOSE 70-90X13 MM
218
CLAMP , Replaced By: N000000000674
220
CONNECTOR AT WATER PUMP
222
CONNECTOR , Replaced By: A6205010423
224
SCREW END PIECE TO EXHAUST PIPE M 10X25
226
LINE FROM WATER PUMP TO EXPANSION TANK
228
SCREW , Replaced By: N304017006018
228
SCREW COVER PLATE TO COVER PLATE M 6 X 12
230
NUT , Replaced By: N913004006001
230
NUT PUMP TO BRACKET
232
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
234
HOSE FROM WATER PUMP TO EXPANSION TANK
234
HOSE , Replaced By: A6585010082
236
HOSE FROM WATER PUMP TO EXPANSION TANK
238
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
238
CLAMP , Replaced By: N000000000667
240
CLAMP , Replaced By: N000000000670
240
CLAMP
242
FLANGE HEATING AND VENTILATION
242
FLANGE FROM ENGINE TO EXPANSION TANK
248
LINE (HEATING PIPE)
248
LINE HEATING AND BREATHING
248
LINE , Replaced By: A6205002872
248
LINE , Replaced By: A6205003072
257
HOSE HEATING PIPE TO RADIATOR
305
HOSE FROM WATER PUMP TO EXPANSION TANK
999
LINE , Replaced By: A0005516456
999
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
999
RADIATOR ,4 706542
999
CLAMP , Replaced By: N916017011000
999
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
999
RADIATOR OIL, NOT USED
999
SCREW PLUG , Replaced By: N007604014101
999
FITTING , Replaced By: A0029906171
999
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
999
BOOT FAN SHROUD TO FAN RING
999
CLAMP FAN SHROUD TO FAN RING
999
FILTER OIL FILTER
999
BRACKET , Replaced By: A3812700241
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET , Replaced By: A3604293140
999
LINE , Replaced By: A3815001472
999
FAN SHROUD , 0-199 FROM CHASSIS 4 428845, 200-599 FROM CHASSIS 4 424216
999
SCREW BRACKET TO TRANSMISSION,5 360279
999
HOSE , Replaced By: A3819970682
999
BRACKET , Replaced By: A3832710140
999
BRACKET OIL LINES TO ENGINE
999
BRACKET OIL LINE TO CRANKCASE
999
SHIM RUBBER MOUNTING TO BRACKET
999
SUPPORT RADIATOR
999
SUPPORT RADIATOR MOUNTING,4 428845
999
CONNECTOR , Replaced By: A6205010223
999
BRACKET CABLE HARNESS TO LEAK LINE
999
BRACKET OIL FILTER
999
PIPE , Replaced By: A0004291601
999
BRACKET GOVERNOR
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL LINE TO OIL COOLER
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL LINE TO TRANSMISSION
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PANELLING CIRCULATING AIR
999
FITTING OIL FILTER
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.: 5 141771, Replaced By: A4010100940
999
BALL SOCKET ROD TO BALL PIVOT
999
LINE FEED, OIL COOLER
999
LINE RETURN, OIL COOLER
999
PIPE , Replaced By: A6152701396
999
PIPE , Replaced By: A6152701496
999
PIPE RETURN, FROM OIL TEMPERATURE REGULATOR TO OIL FILTER
999
PIPE FROM OIL FILTER TO TRANSMISSION
999
BRACKET OIL COOLER TO RADIATOR
999
RADIATOR
999
SHIM OIL COOLER TO BRACKET
999
SHIM OIL COOLER TO BRACKET
999
BRACKET OIL LINES TO ENGINE
999
CONNECTOR AT WATER PUMP
999
BRACKET OIL LINES TO ENGINE,5 501369
999
BRACKET OIL LINES TO ENGINE,5 501369
999
PIPE , Replaced By: A6172704996
999
LINE , Replaced By: A0005516156
999
LINE HEATING AND BREATHING
999
HOSE FROM RADIATOR TO WATER PUMP
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
AIR BAFFLE RADIATOR, NOT USED
999
HOSE HEATING PIPE TO RADIATOR
999
PIPE ELBOW , Replaced By: A6205010556
999
PIPE ELBOW , Replaced By: A6555010756
999
HOSE , Replaced By: A6175014982
999
HOSE , Replaced By: A6175014982
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
CONNECTION FITTING , Replaced By: A0049971772
999
BALL SOCKET ROD TO BALL PIVOT
999
SECURING CLIP. CIRCLIP
999
NUT
999
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
