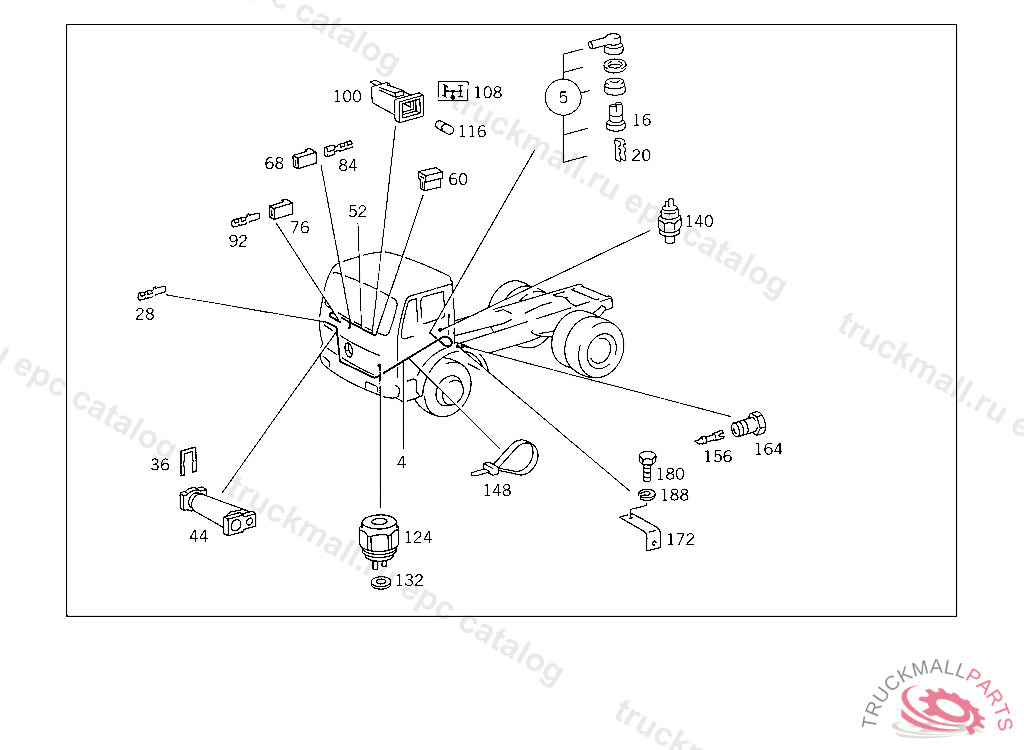

Поз.
Артикул
Описание
4
ELECTRIC CABLE FROM CAB TO P.T.O. SWITCH
4
ELECTRIC CABLE FROM CAB TO P.T.O. SWITCH
4
ELECTRIC CABLE FROM CAB TO P.T.O. SWITCH,5 158855
5
PLUG SOCKET (PARTS KIT),BIPOLAR SCREW CONNECTION, FOR CORRUGATED TUBE M 27X1
5
PLUG SOCKET (PARTS KIT),BIPOLAR SCREW CONNECTION, FOR CORRUGATED TUBE M 24X1
16
PLUG SOCKET PRESSURE SWITCH SCREW-CONNECTION TO M 24X1
16
PLUG SOCKET A B S SENSOR CABLE SCREW-CONNECTION
20
ROUND PIN BUSHING REAR "ENR" SOLENOID VALVE BRANCH-OFF 0.75-2.5MM2
28
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
36
LOCK INSULATING HOSE
44
GROMMET17/12/8.5
52
ELECTRIC CABLE FROM P.T.O. TELL-TALE LAMP TO PLUG CONNECTION AT CAB
52
ELECTRIC CABLE , Replaced By: A3805405137
60
PIN BUSHING HOUSING BIPOLAR
68
PIN BUSHING HOUSING UNIPOLAR
76
PIN BUSHING HOUSING UNIPOLAR
84
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
84
PIN BUSHING , Replaced By: A0075458226
92
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
100
TELL-TALE LAMP LESS LENS
108
LENS P.T.O.
108
LENS , Replaced By: A0045453990
116
BULB TELL-TALE LAMP
124
SWITCH EXHAUST BRAKE,K 251255
132
SEAL RING LINE CONNECTION
140
SWITCH PRESSURE SWITCH M 24 X 1 MM
148
LOOM TIE LINE MOUNTING
148
LOOM TIE LINE MOUNTING 280 MM
156
COUPLER ANGLE DRIVE
164
CONNECTOR ANGLE DRIVE
172
ANGLE LINE MOUNTING
180
SCREW BRACKET TO TRANSMISSION
188
LOCK WASHER FITTING TO BRACKET
999
ELECTRIC CABLE , NOT USED
999
ANGLE , Replaced By: A3604280243
999
WASHER PRESSURE SWITCH SCREW-CONNECTION TO M 27X1,5 129167
999
BOOT PRESSURE SWITCH SCREW-CONNECTION TO M 27X1, M 24X1
999
ELECTRIC CABLE FROM CAB TO P.T.O. SWITCH
999
ELECTRIC CABLE FROM CAB TO P.T.O. SWITCH
999
PLUG TO PLUG THE FREE BORES IN INSTRUMENT PANEL
999
WASHER PRESSURE SWITCH SCREW-CONNECTION TO M 24X1,5 129167
999
NUT PRESSURE SWITCH SCREW-CONNECTION M 27X1
999
NUT PRESSURE SWITCH SCREW-CONNECTION M 24X1,5 129167
