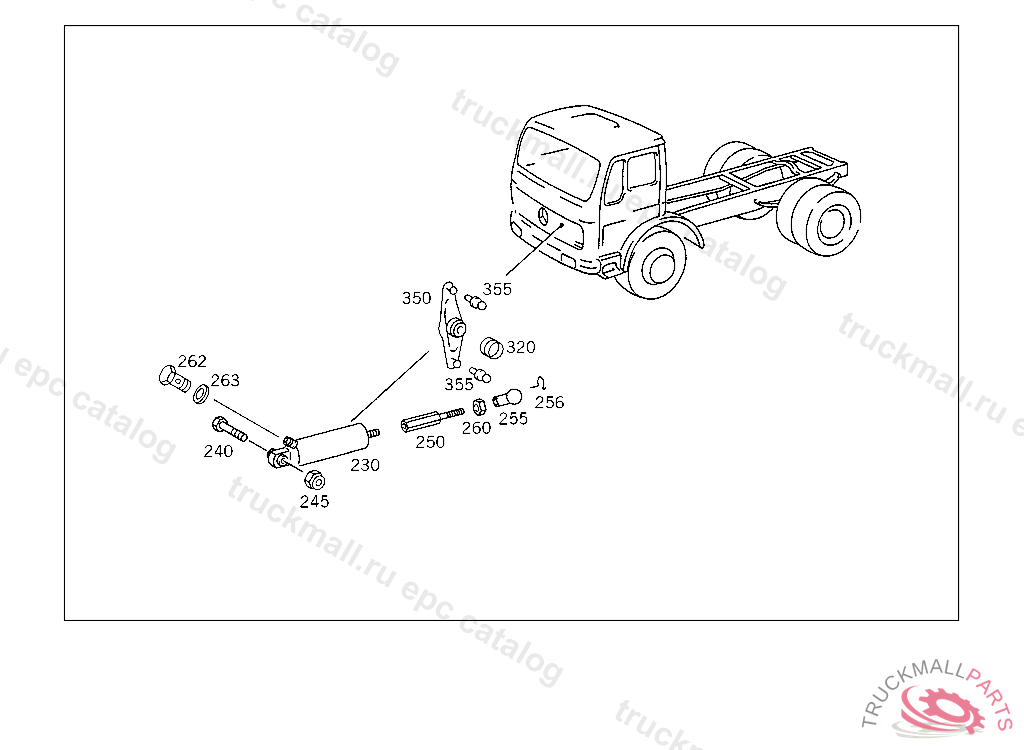

Поз.
Артикул
Описание
230
POWER CYLINDER EXHAUST BRAKE
240
SCREW , Replaced By: N304017008018
240
SCREW SUPPORT TO FENDER
245
NUT , Replaced By: N913004008001
245
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
250
ROD EXHAUST-BRAKE POWER CYLINDER
250
ROD EXHAUST BRAKE
255
BALL SOCKET PULL ROD TO LEVER
256
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
260
NUT BALL PIVOT TO LEVER
262
HOLLOW SCREW HEATING CONNECTION
263
SEAL RING LINE CONNECTION
320
COVERING
320
SLEEVE , 1 PIECE REQUIRED IN ADDITION TO BE ADAPTED DURING ASSEMBLY, Replaced By: A4073015088
350
LEVER INTERMEDIATE BEARING
355
BALL PIVOT BOTTOM B13X5 MM
355
BALL STUD. BALL PIVOT TOP B10X4,5 MM
999
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
999
PROTECTIVE CAPWABCO
999
REPAIR KIT , Replaced By: A0024302260
999
VALVE , Replaced By: A0039971736
999
VALVE , Replaced By: A0039971836
999
VALVE ,4 188089, Replaced By: A0029975836
999
VALVE , Replaced By: A0029975936
999
VALVE , Replaced By: A0029975836
999
SEAL RINGBOSCH
999
ROD
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
LEVER , Replaced By: A6203000628, +001N071803013208
999
ROD
999
SEAL RINGBOSCH
