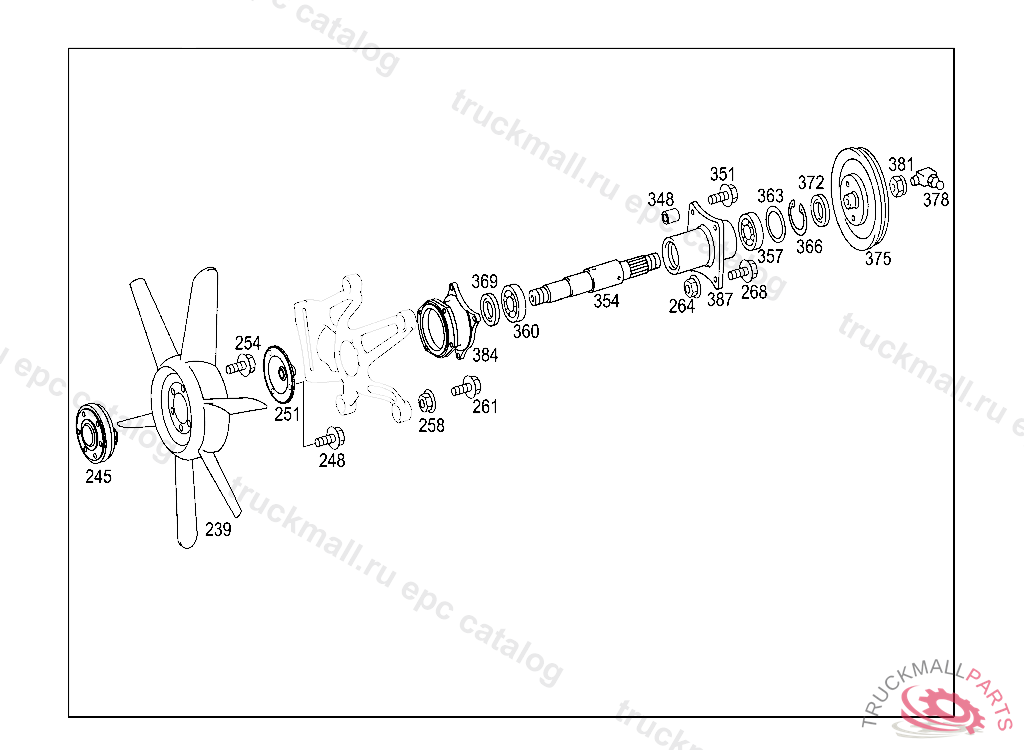

Поз.
Артикул
Описание
239
FAN
245
248
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
251
HUB ,D 276362
254
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
258
NUT HORN TO BRACKET M8
258
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
261
SCREW SHIFT LEVER TO BRACKET M8X30
261
SCREW BRACKET TO SIDE MEMBER M10X35
264
NUT ENGINE MOUNTING M8
264
NUT HORN TO BRACKET M8
268
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
348
SPACER TUBE CHARGING AIR INTERCOOLER TO 664 501 86 01
351
SCREW VALVE TO BRACKET M 8X60
354
FAN SHAFT ,D 276362
357
BALL BEARING FAN DRIVE
360
BALL BEARING. GROOVED BALL BEARING FAN DRIVE,D 276362
363
WASHER
366
LOCK RING
369
RADIAL SEAL RING
369
SEAL RING
372
SEAL RING FAN DRIVE
375
PULLEY FAN DRIVE
378
GREASE NIPPLE FOR SPRING
381
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
384
387
BEARING BODY FAN DRIVE
