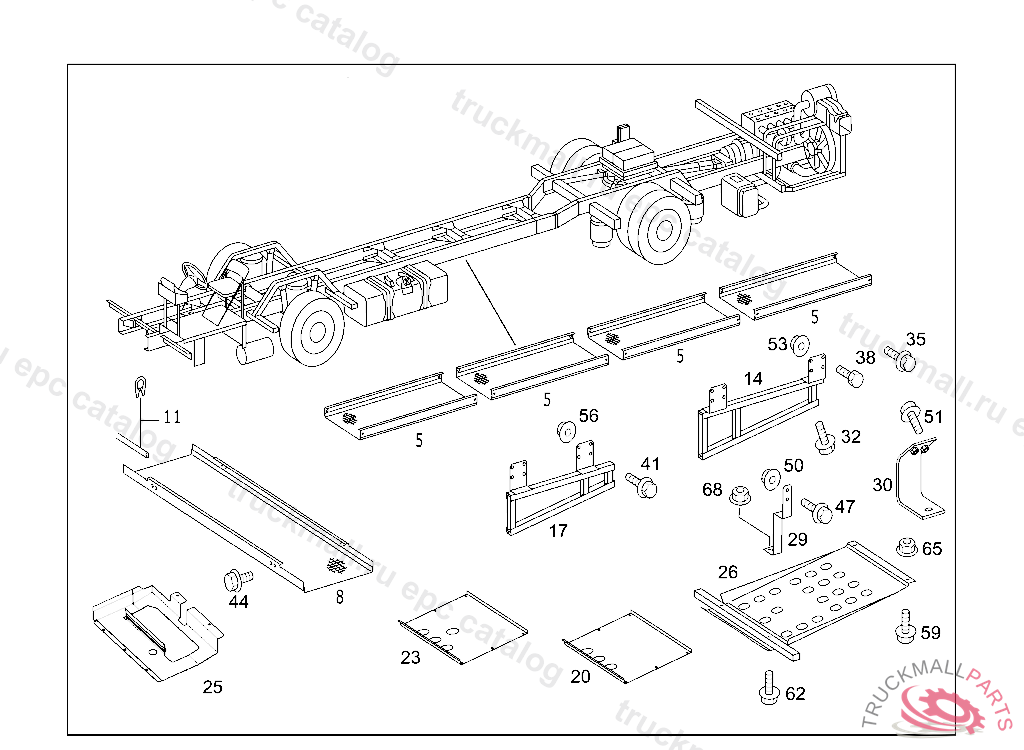

O 500 R / 1830 / 30 - 382.176 - 52 CHASSIS SHEET METAL

Поз.
Артикул
Описание
17
A6345200235
17
A6345200335
23
A6345240201
26
A3825200071
29
A6345200241
32
N910105008013
SCREW PIPE ELBOW TO BRACKET M8X12
32
N910143008020
SCREW SPEED SENSOR TO REAR AXLE
41
N910105012007
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
47
N910105014005
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
50
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
56
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
59
N910105012020
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
62
N910105012020
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
65
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
68
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
