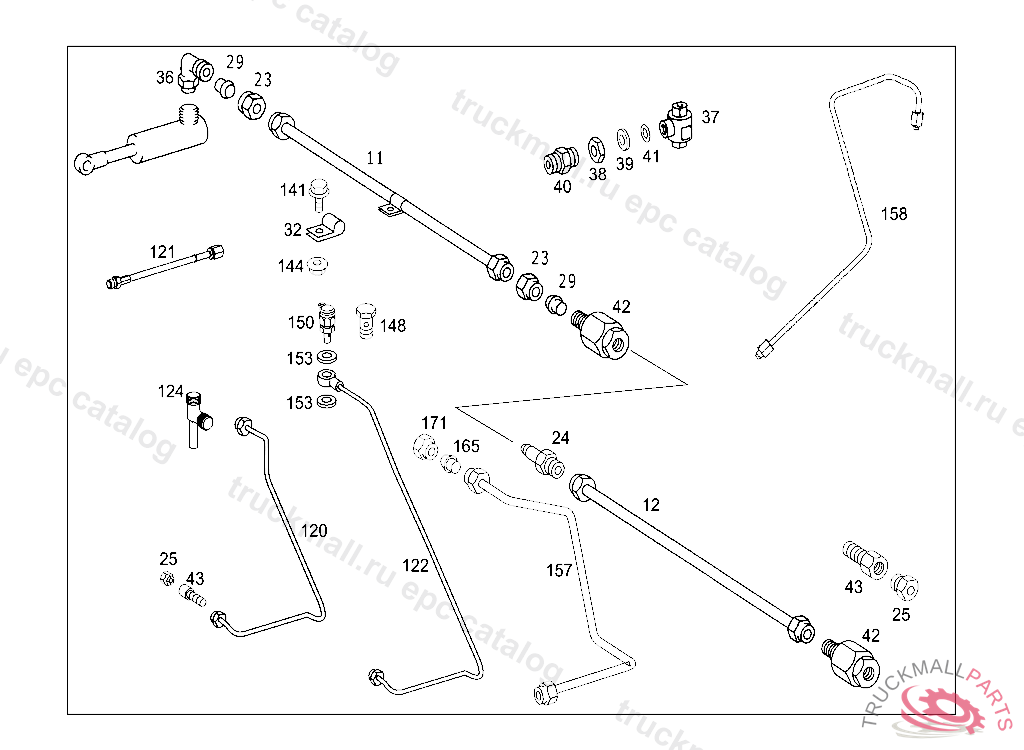

Поз.
Артикул
Описание
11
11
11
11
11
23
UNION NUT
25
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
29
GLAND LINE CONNECTION
29
GLAND , Replaced By: A0019901667
32
CLAMP HYDRAULIC LINE TO SIDE MEMBER,RB012797
36
ELBOW FITTING SINGLE CIRCUIT PISTON CYLINDER, CONNECTION:
36
FITTING , Replaced By: A0019909871
37
VALVE (QUICK-RELEASE VALVE)
38
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
39
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
40
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
41
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
42
THROTTLE HOUSING. FITTING
43
ADAPTER FITTING TEST CONNECTION
120
121
122
124
T-FITTING FROM PRESSURE REGULATOR TO T-FITTING
141
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
141
SCREW BRACKET AND CLAMP M6X20
144
NUT BRACKET TO FIRE WALL
148
BANJO BOLT. HOLLOW SCREW OIL PRESSURE LINE ON OIL FILTER
153
SEALING RING TEST CONNECTION
