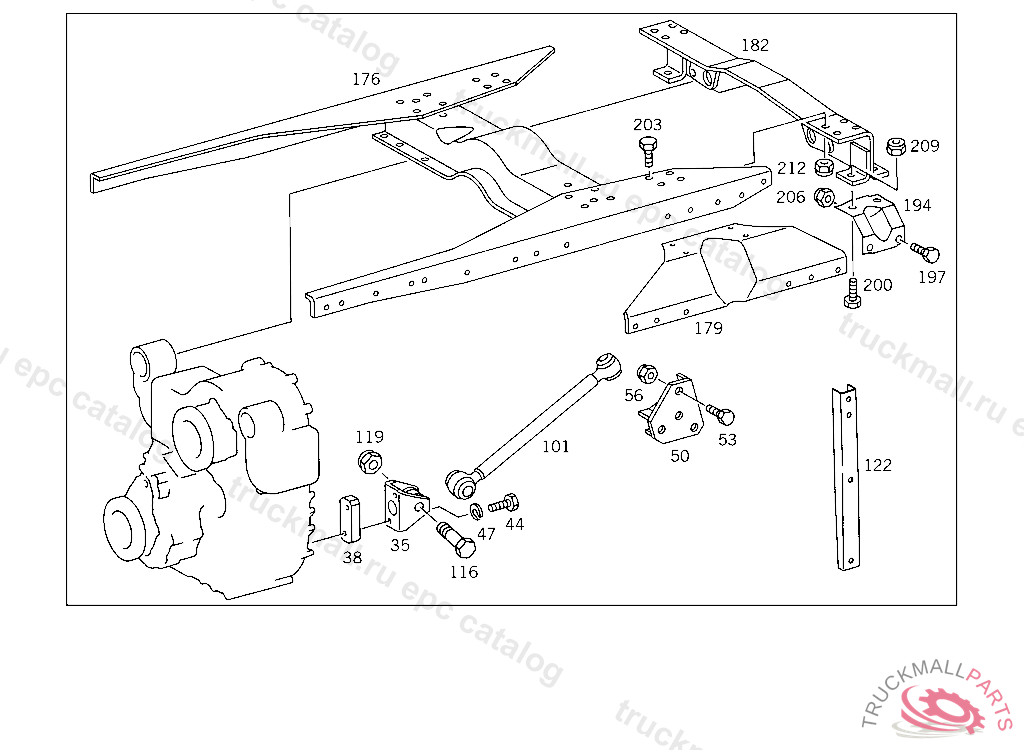

Поз.
Артикул
Описание
35
SUPPORT ROD TO TRANSFER CASE
38
SHIM ROD TO TRANSFER CASE
44
SCREW ROD TO TRANSFER CASE M 14X65
44
SCREW , Replaced By: N308676014013
44
SCREW MOUNTING TO SIDE MEMBER M 14X85
47
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
50
SUPPORT RIGHT
50
SUPPORT LEFT
53
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
53
SCREW , Replaced By: N308676014003
56
NUT STEERING SUPPORT TO FRAME
56
NUT , Replaced By: N910113014000
101
ROD TRANSFER CASE TO FRAME
101
ROD TRANSFER CASE TO FRAME
116
PIN ROD TO TRANSFER CASE
119
NUT FRONT SPRING TO SPRING BRACKET
119
NUT SHOCK ABSORBER TO FRONT SPRING, Replaced By: N910113022000
119
NUT , Replaced By: N910113022001
122
BRACKET PULL ROD TO BRACKET ON FRAME, TO BE ADAPTED DURING ASSEMBLY
176
CROSS MEMBER
179
ANGLE BOTTOM RIGHT
179
ANGLE BOTTOM RIGHT,5 297102
179
ANGLE BOTTOM LEFT
179
ANGLE BOTTOM LEFT,5 297102
182
CROSS MEMBER TRANSFER CASE NO.3A
194
ANGLE TRANSFER CASE TO FRAME
194
ANGLE TRANSFER CASE TO FRAME
197
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
197
SCREW , Replaced By: N308676014020
200
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
200
SCREW , Replaced By: N308676012012
203
SCREW STRUT TO CROSS MEMBER
206
NUT BRACKET TO SIDE MEMBER
206
NUT , Replaced By: N910113014001
209
NUT SUPPORT TO SIDE MEMBER
212
HEXAGON NUT
212
NUT , Replaced By: N910113010002
999
LOCK TRANSFER CASE TO FRAME
999
HANDLE VALVE
999
VALVE 4/3-WAY, TRANSFER CASE ACTUATION BOSCH
999
BEARING TRANSFER CASE TO FRAME
999
WASHER TRANSFER CASE TO FRAME
999
PIN ROD TO FRAME
999
WASHER CROSS MEMBER TO SUPPORT
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
SUPPORT FRONT CROSS MEMBER
999
BRACKET REAR CROSS MEMBER
999
BRACKET FRONT RIGHT,4 464629
999
BRACKET LEFT,4 464629
999
BRACKET RIGHT,4 464629
999
BRACKET AT CROSS MEMBER,4 464629
999
BRACKET REAR RIGHT,4 464629
999
CROSS MEMBER TRANSFER CASE,4 464629
999
SHIM BRACKET TO CROSS MEMBER
999
BRACKET SUSPENSION
999
CROSS MEMBER TRANSFER CASE NO.3
999
ANGLE TRANSFER CASE WITH CROSS MEMBER TO FRAME
999
CROSS MEMBER , Replaced By: A3833100927
999
CROSS MEMBER TRANSFER CASE TO FRAME
999
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
999
BRACKET TRANSFER CASE
999
UNIT IDENTIFICATION PLATE ON-ROAD/OFF-ROAD SPEED
999
BRACKET ROD TO SIDE MEMBER
999
ROD TRANSFER CASE TO FRAME
999
WASHER AT TWO-WAY VALVE
999
SUPPORT BRACKET TO FRAME
999
SUPPORT
999
SUPPORT
999
SUPPORT
999
SUPPORT
999
BRACKET TRANSFER CASE SUSPENSION,RIGHT
