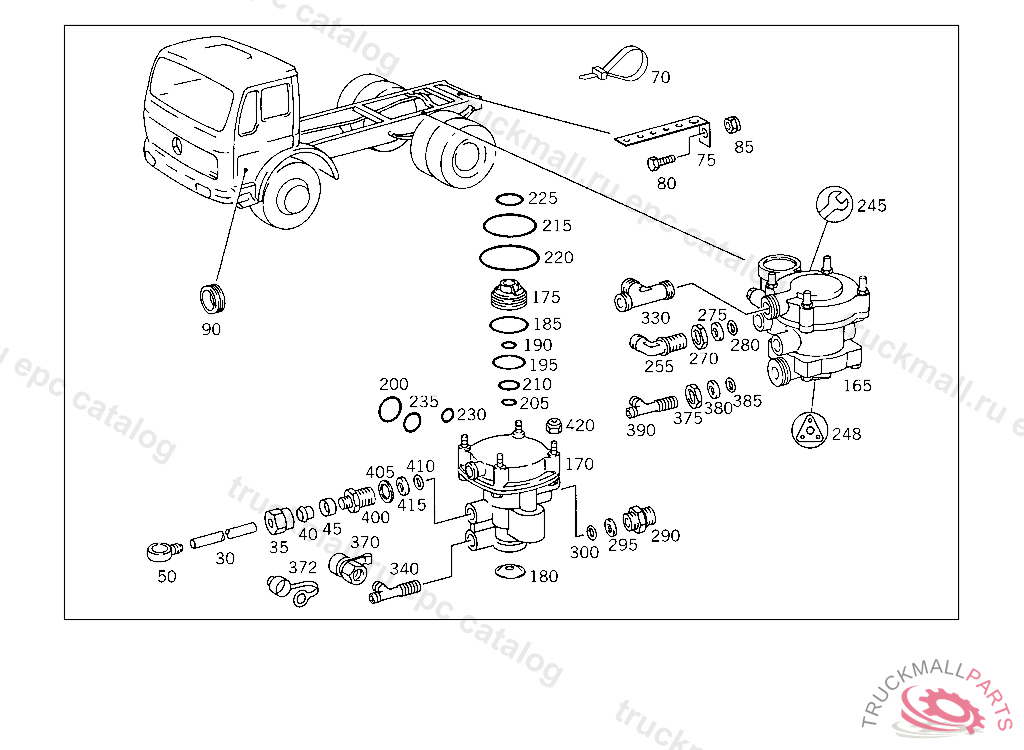

Поз.
Артикул
Описание
30
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
30
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
30
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
30
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
30
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
30
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
30
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
30
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
35
UNION NUT LINE CONNECTION
40
GLAND LINE CONNECTION
45
SLEEVE , Replaced By: N915062006000
45
SLEEVE LINE CONNECTION
50
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
50
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
70
LOOM TIE LINE MOUNTING
70
LOOM TIE LINE MOUNTING
75
BRACKET , Replaced By: A3604292940
75
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
80
SCREW PIPE CLAMP
80
SCREW PIPE CLAMP
80
SCREW , Replaced By: N304017008021
85
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
85
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
85
NUT , Replaced By: N913004008001
90
GROMMET OIL DELIVERY LINE THRU FENDER SUPPORT
165
BRAKE VALVE (TRAILER CONTROL VALVE) BOSCH,4 412021 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
165
BRAKE VALVE (TRAILER CONTROL VALVE) WABCO,4 412021 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
165
BRAKE VALVE , Replaced By: A0024314905
165
BRAKE VALVE (TRAILER CONTROL VALVE) KNORR,4 412021
165
BRAKE VALVE (TRAILER CONTROL VALVE) BOSCH,4 412021 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
165
BRAKE VALVE (TRAILER CONTROL VALVE) WABCO,4 412021 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
165
BRAKE VALVE (TRAILER CONTROL VALVE) KNORR,4 412021
170
BRAKE VALVE (TRAILER CONTROL VALVE) GRAU,4 412021
170
BRAKE VALVE (TRAILER CONTROL VALVE) GRAU,4 412021
175
VALVE SEATTO 001 431 74 05,GRAU 355 029 001
175
VALVE SEATTO 001 431 74 05,GRAU 355 029 001
180
GASKET34X2X6 MM,GRAU
180
GASKET34X2X6 MM,GRAU
185
SEAL RING64.77X2.62,TO GRAU
185
SEAL RING64.77X2.62,TO GRAU
185
SEAL RING64.77X2.62,TO GRAU
190
SEAL RING18X2.5,TO GRAU
190
SEAL RING18X2.5,TO GRAU
190
SEAL RING18X2.5,TO GRAU
195
SEAL RING44.2X3,TO GRAU
195
SEAL RING44.2X3,TO GRAU
195
SEAL RING44.2X3,TO GRAU
195
SEAL RING44.2X3,TO GRAU
200
SEAL RING30X2,TO GRAU
200
SEAL RING30X2,TO GRAU
200
SEAL RING30X2,TO GRAU
205
SEAL RING7X1.5,TO GRAU
205
SEAL RING7X1.5,TO GRAU
205
SEAL RING7X1.5,TO GRAU
210
SEAL RING21.3X2.4 TO 001 431 74 05,
210
SEAL RING21.3X2.4 TO 001 431 74 05,
210
SEAL RING21.3X2.4 TO 001 431 74 05,
215
SEAL RING90X3,TO GRAU
215
SEAL RING90X3,TO GRAU
220
SEAL RING100X3,TO GRAU
220
SEAL RING100X3,TO GRAU
225
SEAL RING39.2X3 TO 001 431 74 05,
225
SEAL RING39.2X3 TO 001 431 74 05,
225
SEAL RING39.2X3 TO 001 431 74 05,
225
SEAL RING39.2X3 TO 001 431 74 05,
230
SEAL RING9X1.5,TO GRAU
230
SEAL RING9X1.5,TO GRAU
230
SEAL RING9X1.5,TO GRAU
235
SEAL RING23.47X2.62,TO GRAU
235
SEAL RING23.47X2.62,TO GRAU
235
SEAL RING23.47X2.62,TO GRAU
245
REPAIR KIT , Replaced By: A0014304760
245
REPAIR KITTO 001 431 67 05, BOSCH 061 010
245
REPAIR KIT VALVE DISC TO 001 431 67 05,BOSCH 061 214
245
REPAIR KIT , Replaced By: A0004301109
245
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
245
REPAIR KIT , Replaced By: A0024301860
245
REPAIR KITTO WABCO
245
REPAIR KITTO KNORR
245
REPAIR KIT VALVE SEAT KNORR
245
REPAIR KITTO 001 431 67 05, BOSCH 061 010
245
REPAIR KIT VALVE DISC TO 001 431 67 05,BOSCH 061 214
245
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
245
REPAIR KITTO WABCO
245
REPAIR KITTO KNORR
245
REPAIR KIT VALVE SEAT KNORR
248
GASKET KIT SEAL RING TO 001 431 67 05,BOSCH 061 214
248
GASKET KIT SEAL RING TO 001 431 67 05,BOSCH 061 214
255
FITTING ,4 667210
255
ELBOW FITTING RELAY VALVE,CONNECTIONS: "21,22"
255
FITTING ,4 667210
255
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
255
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
255
ELBOW FITTING RELAY VALVE,CONNECTIONS: "21,22"
255
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
270
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
270
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
275
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
275
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
280
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
280
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
290
FITTING DELIVERY LINE TO PUMP
290
FITTING DELIVERY LINE TO PUMP
295
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
300
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
330
T-FITTING SINGLE CIRCUIT PISTON CYLINDER, CONNECTION: "1"
330
T-FITTING SINGLE CIRCUIT PISTON CYLINDER, CONNECTION: "1"
340
T-FITTING
370
TEST CONNECTION
370
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
370
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
370
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
370
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
370
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
370
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
370
TEST CONNECTION BULKHEAD FITTING
370
TEST CONNECTION CONNECTION: 4.2,4 719029
370
TEST CONNECTION CONNECTION: 4.2,4 719029
370
TEST CONNECTION
370
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
370
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
370
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
372
PLUG
372
PROTECTIVE CAP , Replaced By: A0009979486
375
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
380
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
385
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
390
T-FITTING
400
FITTING , Replaced By: A0029979572
400
FITTING RELAY VALVE,CONNECTION: "40",5 359430
400
FITTING RELAY VALVE,CONNECTION: "40",5 359430
405
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
405
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
410
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
410
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
415
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
415
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
420
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
420
NUT , Replaced By: N913004008001
