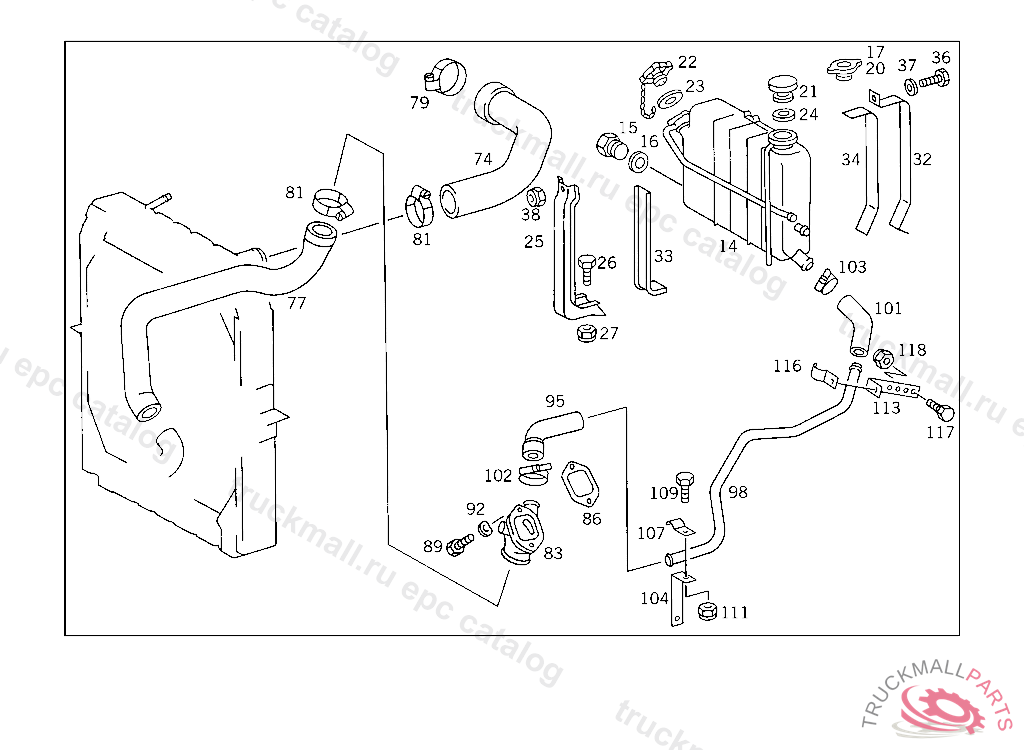

Поз.
Артикул
Описание
14
TANK AT CAB REAR PANEL, 415 5 014668 416 5 000515 417 4 972023
14
TANK , Replaced By: A3815000749
14
TANK BEHIND CAB, WITH 387.134 ON VEHICLES HAVING NO MERCEDES BENZ CAB UP TO CHASSIS 4 3673984 661211
14
TANK , Replaced By: A3815001649
14
TANK , Replaced By: A3815000849
15
SCREW PLUG FUEL TANK
15
SCREW PLUG , Replaced By: N007604014110
16
SEAL RING FROM FUEL TANK TO FUEL TANK
17
RADIATOR CAP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0005014215
20
RADIATOR CAP
20
RADIATOR CAP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0005014215
21
RADIATOR CAP
22
RADIATOR CAP FILLER NECK
22
RADIATOR CAP FILLER NECK
23
GASKET O.D., 52 MM
24
GASKET O.D., 37 MM
25
BRACKET EXPANSION TANK, 415 5 014668 416 5 000515 417 4 972023
25
BRACKET EXPANSION TANK
25
BRACKET , Replaced By: A6155010020
26
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
26
SCREW BRACKET TO SIDE MEMBER
27
NUT STRAP TO BRACKET
27
NUT , Replaced By: N910113010000
32
BRACKET (STRAP), 415 5 014668 416 5 000515 417 4 972023
32
BRACKET EXPANSION TANK
32
BRACKET , Replaced By: A3815012720
33
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
33
PAD , Replaced By: A3634750220
34
SHIM STRAP, 415 5 014668 416 5 000515 417 4 972023
34
SHIM , Replaced By: A3815010495
34
SHIM , Replaced By: A3815010295
36
SCREW END PIECE TO EXHAUST PIPE M 10X25
37
WASHER RADIATOR TO RUBBER MOUNTING
37
WASHER , Replaced By: N000125010532
38
NUT STRAP TO BRACKET
38
NUT , Replaced By: N910113010000
74
HOSE TRANSMISSION OIL COOLER, TO BE ADAPTED DURING ASSEMBLY
74
HOSE FROM RADIATOR TO THERMOSTAT,4 232358
77
HOSE FROM RADIATOR TO WATER PUMP,4 232359
77
HOSE FROM RADIATOR TO WATER PUMP,4 232358
79
CLAMP HOSE 70-90X13 MM
79
CLAMP , Replaced By: N000000000674
81
CLAMP HOSE FASTENING 50-70X13 MM
81
CLAMP , Replaced By: N000000000672
83
CONNECTOR AT WATER PUMP
86
GASKET CONNECTOR, Replaced By: A0002011080
86
GASKET , Replaced By: A4422010480
89
SCREW END PIECE TO EXHAUST PIPE M 10X25
92
SPRING WASHER STEERING COLUMN BRACKET TO CAB
95
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
98
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK 750 MM, 10/20 FROM CHASSIS 960233, 50/60 FROM CHASSIS 962189
98
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK, 10/20 UP TO CHASSIS 960232, 50/60 UP TO CHASSIS 962188 FOR USE WITH MERCEDES-BENZ CAB
101
HOSE FROM WATER PUMP TO EXPANSION TANK, 415 5 014668 416 5 000515 417 4 972023 FOR USE WITH SHORT MERCEDES-BENZ CAB
101
HOSE , Replaced By: A3875011782
102
CLAMP
102
CLAMP
102
CLAMP , Replaced By: N000000000670
103
CLAMP25-40X13 MM
103
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
104
BRACKET COOLING WATER LINE TO FRAME
107
CLAMP COOLING WATER LINE TO BRACKET,5 022370
109
SCREW PIPE CLAMP
109
SCREW , Replaced By: N304017008021
111
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
111
NUT , Replaced By: N913004008001
113
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
113
BRACKET , Replaced By: A3604292940
113
BRACKET TRAILER PLUG SOCKET
116
CLAMP COOLING WATER LINE TO BRACKET,5 022370
117
SCREW PIPE CLAMP
117
SCREW , Replaced By: N304017008021
118
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
118
NUT , Replaced By: N913004008001
999
CLAMP , Replaced By: A3609951201
999
SUPPORT LEFT,4 232358
999
SUPPORT RIGHT,4 232358
