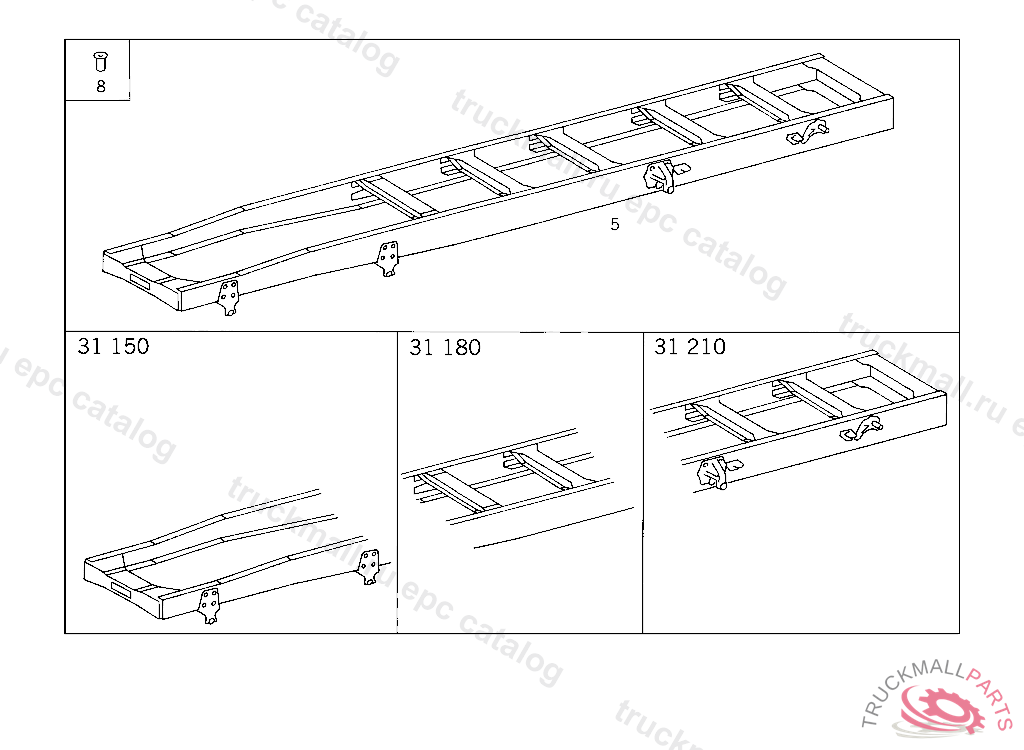

L 1215 - 392.003 - 31 FRAME
Поз.
Артикул
Описание
5
FRAME ,1D 023099
8
RIVET COVER PLATE TO GUSSET PLATE, TO BE ADAPTED DURING ASSEMBLY
8
RIVET10X34 MM
8
RIVET14X42 MM
8
RIVET14X32 MM
8
RIVET12X28 MM
8
RIVET CROSS MEMBER TO FRAME TRUSSING
8
RIVET12X32 MM, TO BE ADAPTED DURING ASSEMBLY
8
RIVET14X34 MM
8
RIVET12X26 MM, TO BE ADAPTED DURING ASSEMBLY
8
RIVET REAR CROSS MEMBER 12X42 MM
8
RIVET
8
RIVET CONSOLE TO SIDE MEMBER
8
RIVET14X45 MM
8
RIVET14X48 MM
8
RIVET14X36 MM
8
RIVET , Replaced By: N910105014005
8
RIVET12X34 MM
