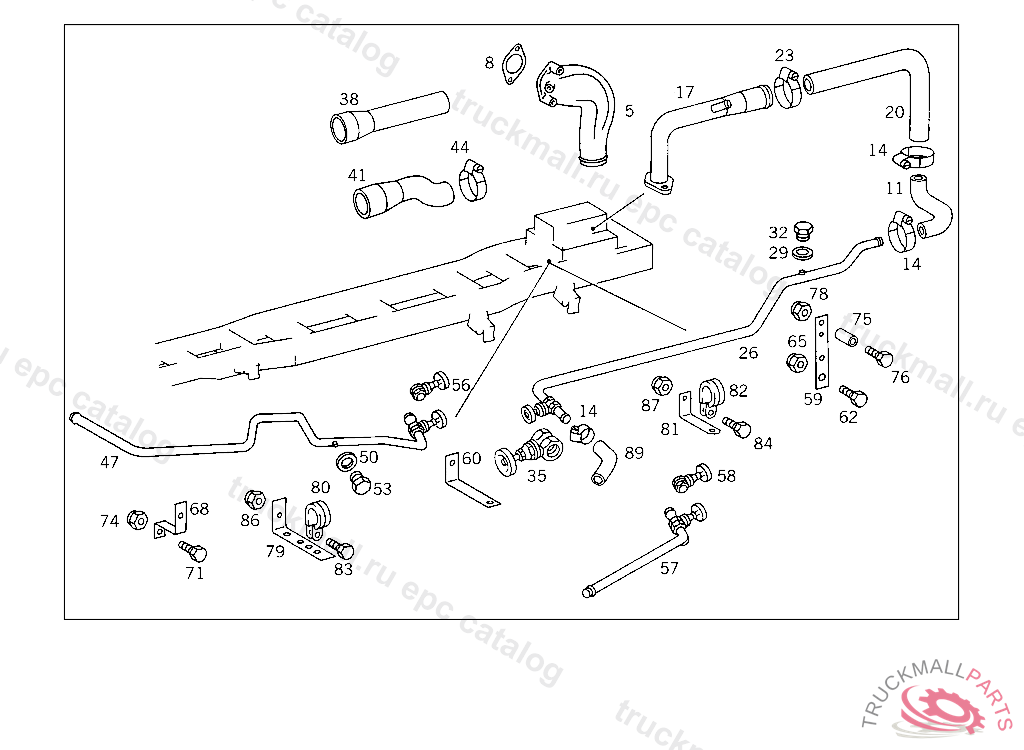

Поз.
Артикул
Описание
5
INTAKE PIPE SOCKET RETARDER
8
GASKET. SEAL DE-AERATION PIPE TO ENGINE
11
HOSE CONNECTION OF OIL FILLER PIPES, ORDER BY THE METER
14
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
14
CLAMP , Replaced By: N000000000671
17
PIPE LINE HEATING WATER RETURN LINE TO ENGINE
20
HOSE FROM ENGINE LINE TO FRAME MOUNTED LINE
23
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
23
CLAMP , Replaced By: N000000000671
26
PIPE LINE FROM MOLDED HOSE TO RUBBER HOSE
29
SEAL RING LINE CONNECTION
32
SCREW PLUG 3/2-WAY VALVE,CONNECTION:,5 363121
35
VALVE
38
HOSE
41
HOSE RETURN FITTING TO HEATING WATER LINE
44
CLAMP HOSE FASTENING 50-70X13 MM
44
CLAMP , Replaced By: N000000000672
47
LINE FROM MOLDED HOSE TO RUBBER HOSE
50
SEAL RING LINE CONNECTION
53
SCREW PLUG 3/2-WAY VALVE,CONNECTION:,5 363121
56
VALVE
57
LINE FROM CONNECTING HOSE TO CONNECTOR
58
VALVE
59
BRACKET FROM THERMOSTAT TO RADIATOR
59
BRACKET CABLE TO TRANSMISSION
60
BRACKET FEED AND RETURN LINES TO RETARDER 110 MM LANG, TO BE ADAPTED DURING ASSEMBLY
60
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3274925819
62
SCREW , Replaced By: N308676012012
62
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
65
NUT SUPPORT TO SIDE MEMBER
68
BRACKET HEATING PIPE TO FRAME
71
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
71
SCREW BRACKET TO CROSS CONNECTION STRUT
71
SCREW , Replaced By: N304017008027
71
SCREW , Replaced By: N304017008034
74
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
74
NUT , Replaced By: N913004008001
74
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
75
GUIDE BUSHING TWO-WAY VALVE TO FRAME
75
SPACER TUBE , Replaced By: A3094310249
75
SPACER TUBE , Replaced By: A3354310053
76
SCREW , Replaced By: N304017008042
76
SCREW SHOCK ABSORBER TO CONSOLE
78
NUT , Replaced By: N913004008001
79
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
79
BRACKET , Replaced By: A6205244040
80
CLAMP SAFETY VALVE AT BRACKET
81
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
81
BRACKET , Replaced By: A6205244040
82
CLAMP SAFETY VALVE AT BRACKET
83
SCREW , Replaced By: N304017008021
83
SCREW PIPE CLAMP
84
SCREW PIPE CLAMP
84
SCREW , Replaced By: N304017008021
86
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
86
NUT , Replaced By: N913004008001
86
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
87
NUT , Replaced By: N913004008001
89
HOSE PIPE LINE TO PIPE LINE
89
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3058321223
89
HOSE , Replaced By: A3078321423
999
SENDER UNIT COOLING WATER TEMPERATURE GAUGE
999
BRACKET DELIVERY LINE TO CROSS MEMBER, PARTS TO BEORDERED FROM SUPPLIER,MESSRS F X MEILLER,MUNICH
999
BRACKET LINE MOUNTING
999
BRACKET , Replaced By: A3914290140
999
LINE FROM CONNECTING HOSE TO CONNECTOR
999
HOSE
999
BRACKET HEATING WATER LINE TO SIDE MEMBER
999
BRACKET HEATING PIPE TO TRANSMISSION
999
BRACKET , Replaced By: A3184280240
999
BRACKET AT ENGINE MOUNTING CONSOLE
999
SCREW FRONT EXHAUST PIPE TO EXHAUST MANIFOLD M 12X60
999
SCREW MOUNTING TO CONSOLE M 14X55
999
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
