Поз.
Артикул
Описание

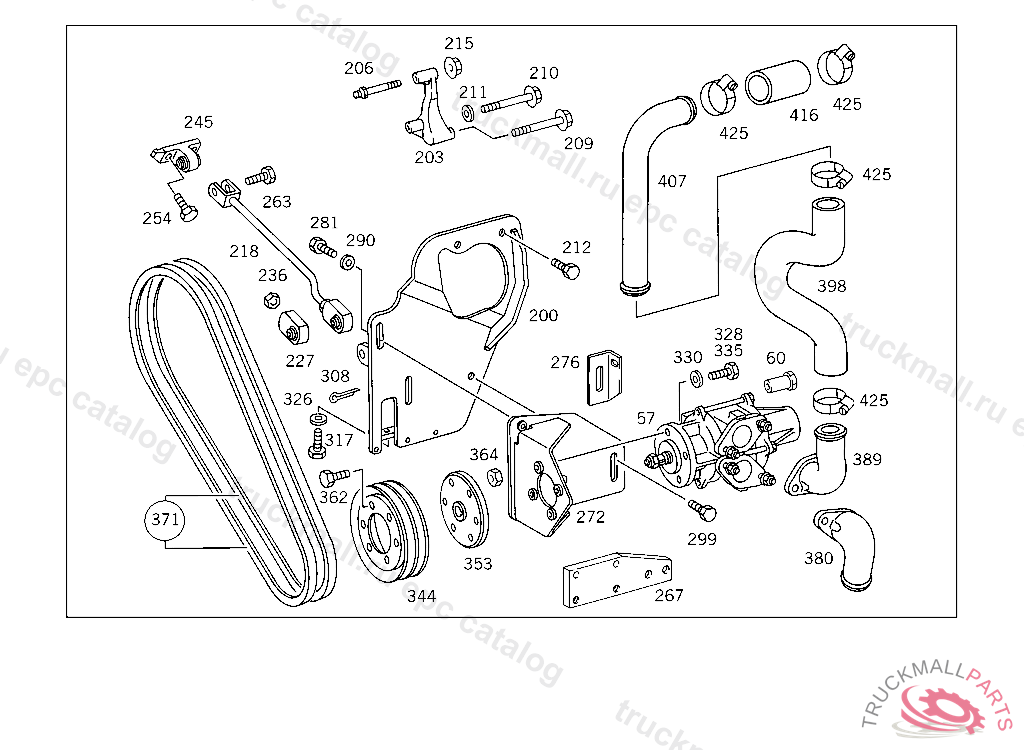

57
WATER PUMP
60
INTERMEDIATE PIECE BRACING THREAD CONNECTION, 423 - 487189 424 - 010556 442 - 487189 444 - 010556
200
SUPPORT BRACKET TO COMPRESSOR BRACKET, TO BE ADAPTED DURING ASSEMBLY
200
BRACKET
203
BRACKET WATER PUMP
206
THREADED UNION BRACKET TO CYLINDER CRANKCASE
209
BOLT. SCREW OIL FILTER TO CYLINDER CRANKCASE M 10X95
210
HEXAGON HEAD BOLT SUPPORTING ARM TO TIMING CASE M 16X40
211
WASHER BRACKET TO FRAME
212
SCREW BRACKET TO SIDE MEMBER
212
SCREW , Replaced By: N304017014011
212
SCREW SUPPORT TO CYLINDER CRANKCASE
215
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
218
STIFFENING , Replaced By: A4222300394, +001A4442300008, +001N000439014206
218
STIFFENING
227
BEARING BODY
227
BEARING BODY BRACING TO SUPPORT
236
NUT
245
BEARING BRACKET
245
BEARING BRACKET
254
SCREWM 10X20
254
SCREW
263
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
267
SHIM ,011954
272
BRACKET WATER PUMP
276
BRACKET WATER PUMP BRACING, 423 - 487189 424 - 010556 442 - 487189 444 - 010556 SIMPLE PART-PLEASE HAVE SHOP MADE
281
SCREW STRUT TO CROSS MEMBER M 10X25
290
WASHER STRUT TO CROSS MEMBER
290
WASHER , Replaced By: N007349010007
299
SCREW , Replaced By: N308676012012
299
SCREW , Replaced By: N308676012038
299
SCREW , Replaced By: N000961012051
299
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
299
SCREW BEARING BRACKET TO FRAME
299
SCREW BRACKET TO TRANSMISSION
308
COTTER PIN LEVER TO ROD
317
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME
317
SCREW , Replaced By: N304017010050
326
WASHER BRACKET TO SIDE MEMBER
328
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
330
WASHER BRACKET TO FENDER BRACKET
335
SCREW STRUT TO CROSS MEMBER M 10X25
344
BELT PULLEY F POLY-V BELT WATER PUMP
344
PULLEY , Replaced By: A4032021810
353
HUB PULLEY TO HUB
362
SCREW CABLE HARNESS MOUNTING
362
SCREW STOP TO BATTERY CASE
364
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
371
V-BELT
371
V-BELT SET2 PIECES 12.5X1400, UP TO CHASSIS D 164887 EXCEPT FOR:D 162653,D 162907,D 163135,D 163292,D 164695.
380
INTAKE PIPE SOCKET WATER INLET
389
OUTLET WATER OUTLET
398
HOSE ADDITIONAL COOLING WATER LINE USED FOR CHARGING AIR INTERCOOLER
407
LINE ADDITIONAL COOLING WATER LINE USED FOR CHARGING AIR INTERCOOLER
416
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK, ORDER BY THE METER
425
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
425
CLAMP , Replaced By: N000000000671
999
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0209971148
999
THERMOSTAT ELEMENT 83 DEGREES
999
WATER PUMP , Replaced By: A4032003601, +001A4032020610
999
WATER PUMP , Replaced By: A4032003901, +001A4032020610
999
WATER PUMP
999
WATER PUMP , Replaced By: A4032003901, +001A4032011280, +002A0209971148
999
WATER PUMP WITH GASKETS
999
WATER PUMP
999
PULLEY
999
CONNECTOR , Replaced By: A6012030008
999
WATER PUMP , Replaced By: A4222001001
999
HOUSING THERMOSTAT
999
WATER PUMP WITH GASKETS
999
SCREW INJECTION PUMP DRIVE TO TIMING CASE M 8X140
999
SCREW , Replaced By: N304017008043
