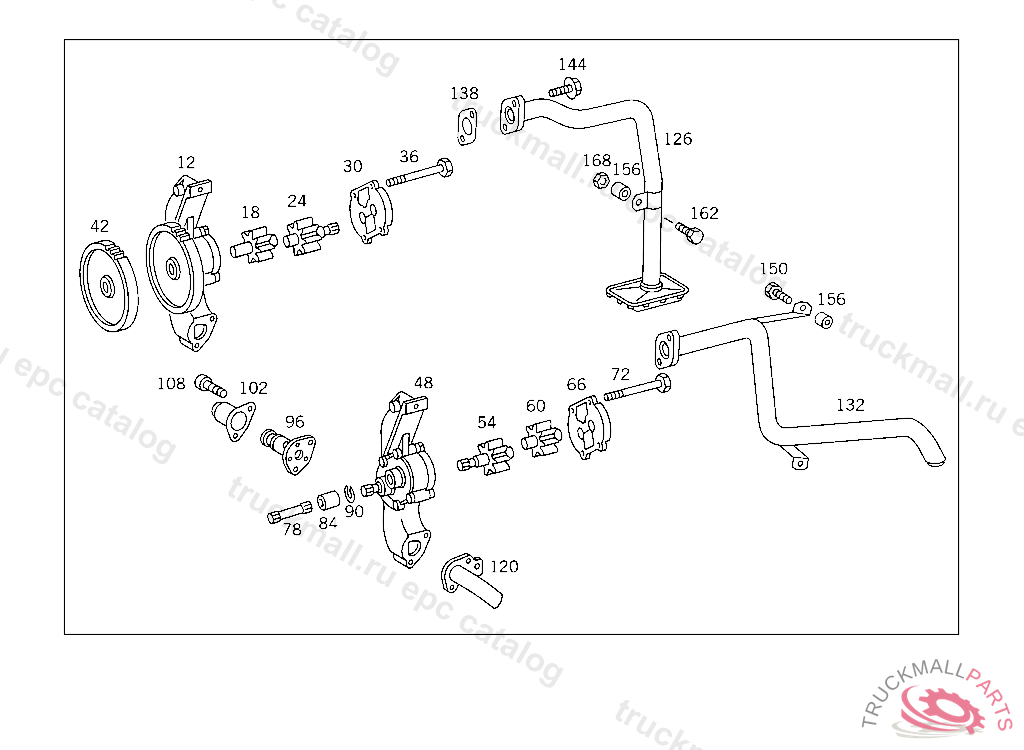

Поз.
Артикул
Описание
12
OIL PUMP WITH DRIVE GEAR,129661 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
18
GEAR TOOTH WIDTH,34 MM,NUMBER OF TEETH,7, DRIVING
24
GEAR DRIVEN,049188129660
30
COVER OIL PUMP
36
SCREW AT SHIFT LEVER M 8 X 45,P 234011
42
DRIVE GEAR OIL PUMP
48
OIL PUMP LESS DRIVE GEAR, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
54
GEAR DRIVEN,049188129660
60
GEAR TOOTH WIDTH,34 MM,NUMBER OF TEETH,7, DRIVEN
66
COVER OIL PUMP
72
SCREW AT SHIFT LEVER M 8 X 45,P 234011
78
INTERMEDIATE SHAFT BETWEEN THE OIL PUMPS
84
SLEEVE
90
SNAP RING
96
PRESSURE RELIEF VALVE
102
CAP OIL PRESSURE RELIEF VALEE,899057
108
SCREW STRAP TO EXHAUST MUFFLER
108
SCREW , Replaced By: N304017008036
120
OIL LINE OIL RETURN
126
SUCTION PIPE WITH SUCTION BASKET
132
SUCTION PIPE OIL RETURN,030352
138
GASKET SUCTION PIPE TO OIL PUMP
144
SCREW , Replaced By: N910105008019
144
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
150
SCREW , Replaced By: N304017008024
150
SCREW BRACKET TO EXHAUST PIPE BRACKET
156
SPACER SLEEVE. SPACER TUBE FAN SHROUD TO RADIATOR,4 1619994 428844
162
SCREW , Replaced By: N304017008033
162
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
168
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
999
PRESSURE RELIEF VALVE , Replaced By: A4221800315
999
PRESSURE RELIEF VALVE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 492315, Replaced By: A4421800015
