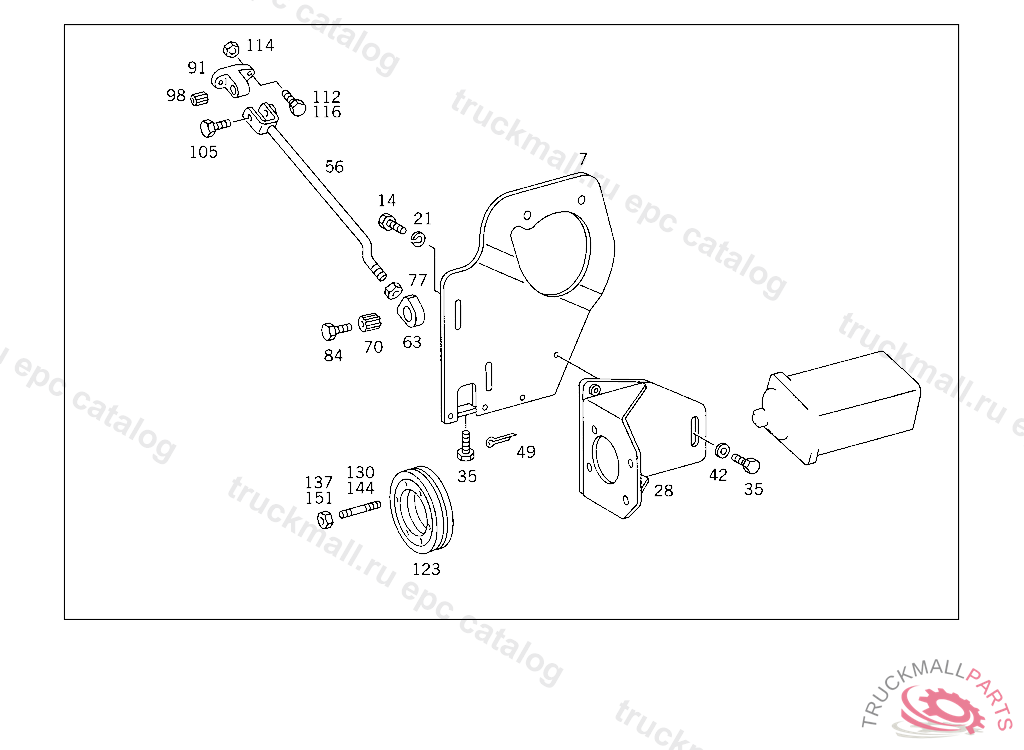

Поз.
Артикул
Описание
7
BRACKET , Replaced By: A4221300235
7
SUPPORT BRACKET TO COMPRESSOR BRACKET, TO BE ADAPTED DURING ASSEMBLY
14
SCREW SUPPORT TO CYLINDER CRANKCASE
21
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
28
BRACKET , Replaced By: A4222300240
28
BRACKET (CONSOLE),HYDRAULIC PUMP
35
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME
35
SCREW BRACKET TO TRANSMISSION
35
SCREW END PIECE TO EXHAUST PIPE M 10X25
35
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
35
SCREW , Replaced By: N304017010050
35
SCREW , Replaced By: N308676012038
35
SCREW , Replaced By: N304017010055
42
WASHER , Replaced By: N007349010007
42
WASHER STRUT TO CROSS MEMBER
42
WASHER BRACKET TO SIDE MEMBER
49
COTTER PIN LEVER TO ROD
49
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
56
STIFFENING , Replaced By: A4222300394, +001A4442300008, +001N000439014206
56
STIFFENING , 229475
56
STIFFENING
63
BEARING BODY BRACING TO SUPPORT
70
BUSHING
77
NUT , Replaced By: N308675014001
77
NUT JOINT TO BRACKET
84
SCREW BRACKET TO FRAME SIDE MEMBER
91
BEARING BRACKET , Replaced By: A4222300039
91
BEARING BRACKET
98
BUSHING
98
BUSHING
105
SCREW
112
SCREW PIPE TO CHARGING AIR INTERCOOLER
114
NUT BRACKET TO SUPPORT AND TO END PIECE
116
SCREW BRACKET TO CONSOLE
116
SCREW , Replaced By: N304017010043
123
PULLEY TWO-GROOVE
123
PULLEY TWO-GROOVE
123
PULLEY CRANKSHAFT
130
STUD BOLT FAN TO CRANKSHAFT M 8X65
130
STUD BOLT P.T.O. CASE TO TRANSMISSION CASE M 8 X 65
137
NUT
144
STUD BOLT PULLEY TO VIBRATION ABSORBER
151
NUT
151
NUT , Replaced By: N304032008006
999
BUSHING
999
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
999
STIFFENING , Replaced By: A4032300194
999
STIFFENING , Replaced By: A4032300294, +001A4031504170, +001A4031504370, +001A4032300039
999
BRACKET , Replaced By: A4032300740
999
BRACKET ,617.024-15-229475, Replaced By: A4222300140, +001A4221300035, +001A4222300139, +001A4222300294
999
INTERMEDIATE PIECE , Replaced By: A4220350314, +006N000933008247
999
INTERMEDIATE PIECE , Replaced By: A4030350914
