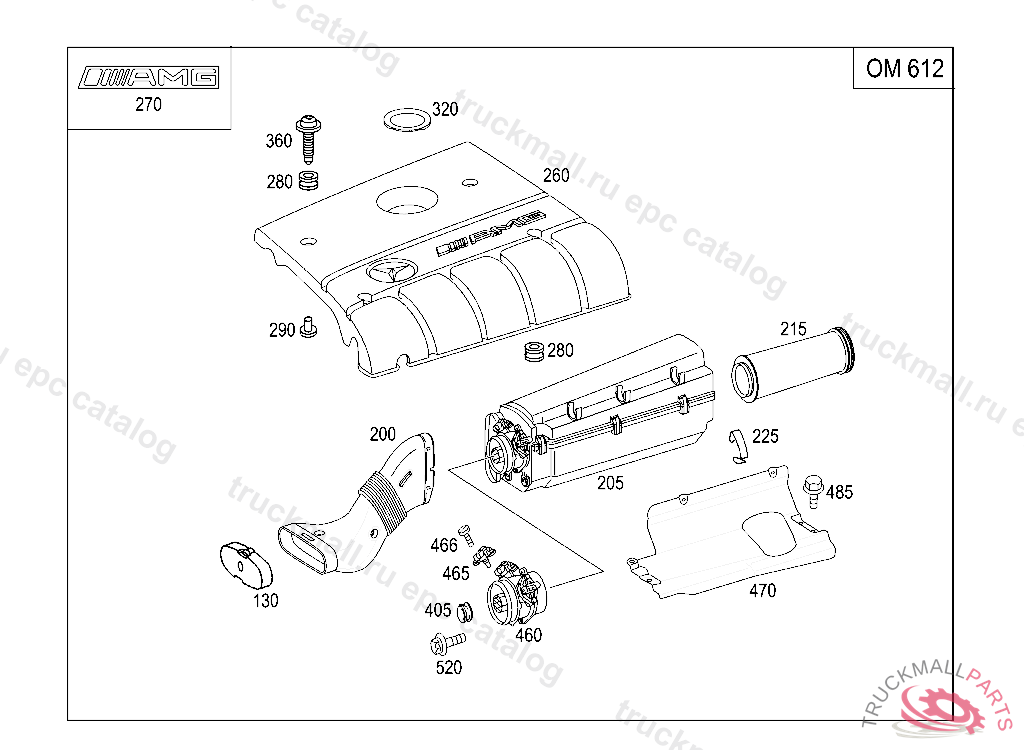

Поз.
Артикул
Описание
130
COVER PIPE ELBOW
200
HOSE INTAKE LINE
205
AIR FILTER
215
FILTER ELEMENT AIR CLEANER
225
CLAMPING BRACKET AIR CLEANER
260
COVER PLATE
270
TYPE DESIGNATION ON REAR LID,ADHESIVE AMG,F 383737
280
GROMMET PRE-GLOW TIME RELAY TO COWL
290
SLEEVE PRE-GLOW TIME RELAY TO COWL
320
SEAL RING
360
SCREW. BOLT AT CHARGE AIR DISTRIBUTOR LINE M6X23
405
BEARING TO FRONT AIR FILTER HOUSING
460
AIR MASS SENSOR TO AIR FILTER HOUSING
465
SENDER UNIT
465
PRESSURE SENSOR , Replaced By: A0051535028
466
SHEET METAL SCREW. SCREWM6 X 16
470
SCREENING ON ENGINE ABOVE EXHAUST MANIFOLD
485
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
520
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
