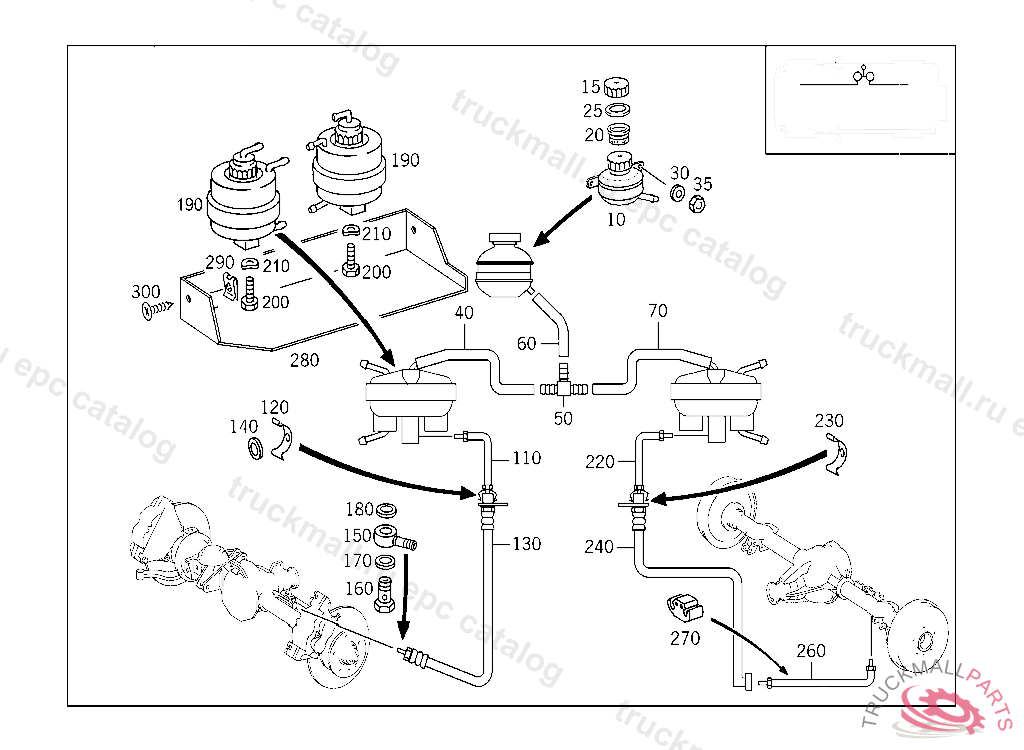

Поз.
Артикул
Описание
10
EXPANSION TANK
10
RESERVOIR
15
SCREW PLUG BUTTRESS THREAD TO 000 295 29 15
20
STRAINER
25
SEAL RING42X21.5 MM
30
WASHER COMPRESSED AIR LINE TO BRACKET
30
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
35
NUT SPRING-LOADED PUSH ROD
40
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
40
HOSE FROM FEED LINE TO FILTER 240 MM
50
T-FITTING BREATHER LINE
60
HOSE FROM FEED LINE TO FILTER 240 MM
60
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
70
HOSE FROM FEED LINE TO FILTER 240 MM
70
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
110
LINE FROM BRAKE POWER REGULATOR TO ADAPTER FITTING
110
LINE FROM HYDRAULIC UNIT TO RIGHT FRONT WHEEL, UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867 TO BE ADAPTED DURING ASSEMBLY
120
RETAINING SPRING BRAKE HOSE TO BRACKET
130
BRAKE HOSE FRONT AXLE
140
WASHER CABLE HARNESS MOUNTING,P 232588
150
BANJO UNION MASTER CYLINDER
160
HOLLOW SCREW MASTER CYLINDER
170
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
170
SEAL RING
180
SEAL RING
180
SEAL RING BRAKE CYLINDER STROKE INDICATOR
190
CYLINDER FRONT AXLE DIFFERENTIAL LOCK CONTROL
200
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
210
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
210
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
220
LINE FROM BRAKE POWER REGULATOR TO RIGHT FRONT WHEEL 2000 MM
230
RETAINING SPRING BRAKE HOSE TO BRACKET
240
BRAKE HOSE TO REAR AXLE
260
HYDRAULIC LINE BETWEEN DISTRIBUTOR AND SLVE CYLINDER FOR REAR AXLE 310 MM
270
LINE HOLDER LINE TO FRAME
280
PROTECTIVE PLATE
290
LOCK FUEL LINE
300
TAPPING SCREW. SHEET METAL SCREW PROTECTION PLATE TO BRACKET
