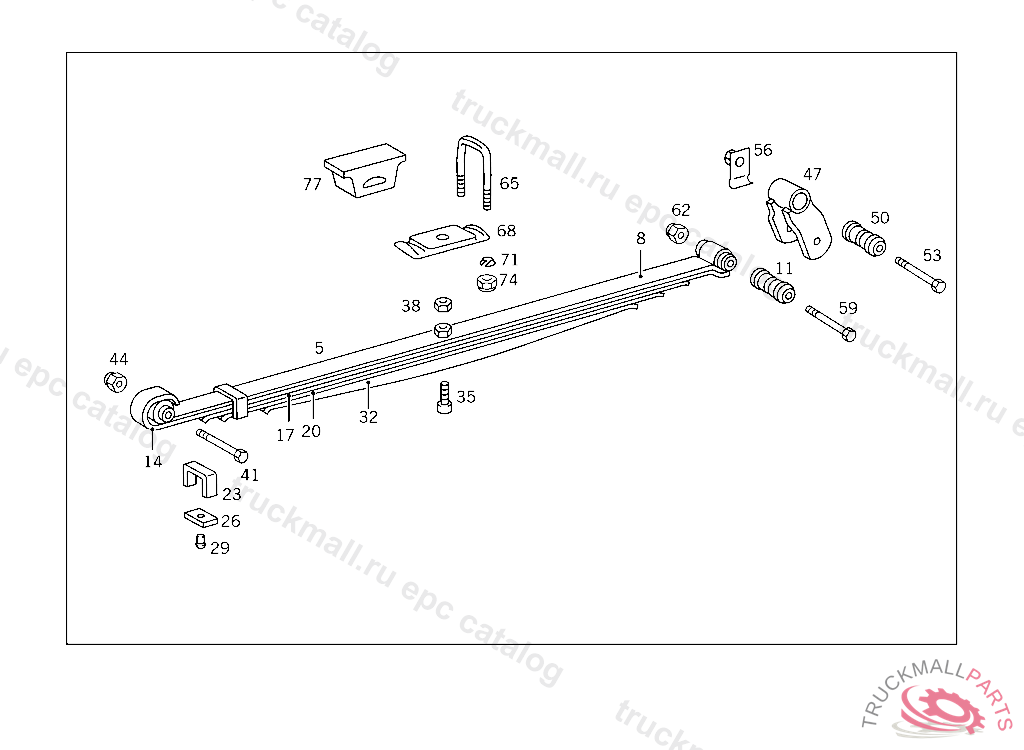

Поз.
Артикул
Описание
5
REAR SPRING 5-LEAF, 543503 P 000001
5
REAR SPRING 5-LEAF,543502
5
REAR SPRING , EXHAUST STOCK OF OLD PARTS NUMBER FIRST FROM IDENT NO.543503-567118, P 000001, Replaced By: A6113202206
5
REAR SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 818433, Replaced By: A6113203706
8
SPRING LEAF , EXHAUST STOCK OF OLD PARTS NUMBER FIRST FROM IDENT NO.543503-567118, P 000001, Replaced By: A6113200293
8
SPRING LEAFNR.1
8
SPRING LEAFNO.1,543502
11
BUSHING
11
BUSHING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 818433, Replaced By: A6113240350
11
BUSHING
11
BUSHING
11
BUSHING36 MM
14
SPRING LEAFNO.2, 543503 P 000001
14
SPRING LEAFNO.2,543502
17
SPRING LEAF , Replaced By: A6113240613
17
SPRING LEAFNO.3
20
SPRING LEAFNO.4
20
SPRING LEAF , Replaced By: A6113240614
23
SPRING CLAMP UPPER PART, TO BE ADAPTED DURING ASSEMBLY
26
SPRING CLAMP
29
RIVET , 654576
32
SPRING LEAFNR.5
35
SPRING BOLTM 10X80,TO 310 320 07 02
38
NUT
38
NUT , Replaced By: N304032010002
41
SCREW PISTON TO AIR-SPRING-BELLOWS SUPPORT,K 103333
44
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
44
NUT COMBINATION CYLINDER TO BEARING BRACKET
47
SHACKLE
47
SHACKLE REAR SPRING TO REAR SPRING REAR BRACKET
50
BUSHING
50
BUSHING36 MM
53
SCREW SHACKLE TO FRAME
56
BRACKET SHACKLE TO FRAME
59
SCREW BEARING BRACKET TO SHOCK ABSORBER BRACKET M 16X110,5 903513
59
SCREW , Replaced By: N000960016277
59
SCREW ,5 903513, Replaced By: N308765016011
59
SCREW PISTON TO AIR-SPRING-BELLOWS SUPPORT,K 103333
62
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
62
NUT COMBINATION CYLINDER TO BEARING BRACKET
65
CLAMP
68
PLATE REAR AXLE TO TO REAR SPRINGS
71
SPRING LOCK WASHER REAR AXLE TO TO REAR SPRINGS,B 825282
74
NUT , 029312 UP TO IDENT NO. 5 463887, FROM IDENT NO. 5 463888 SEE 744.508
77
RUBBER BUFFER REAR SPRING TO REAR AXLE
