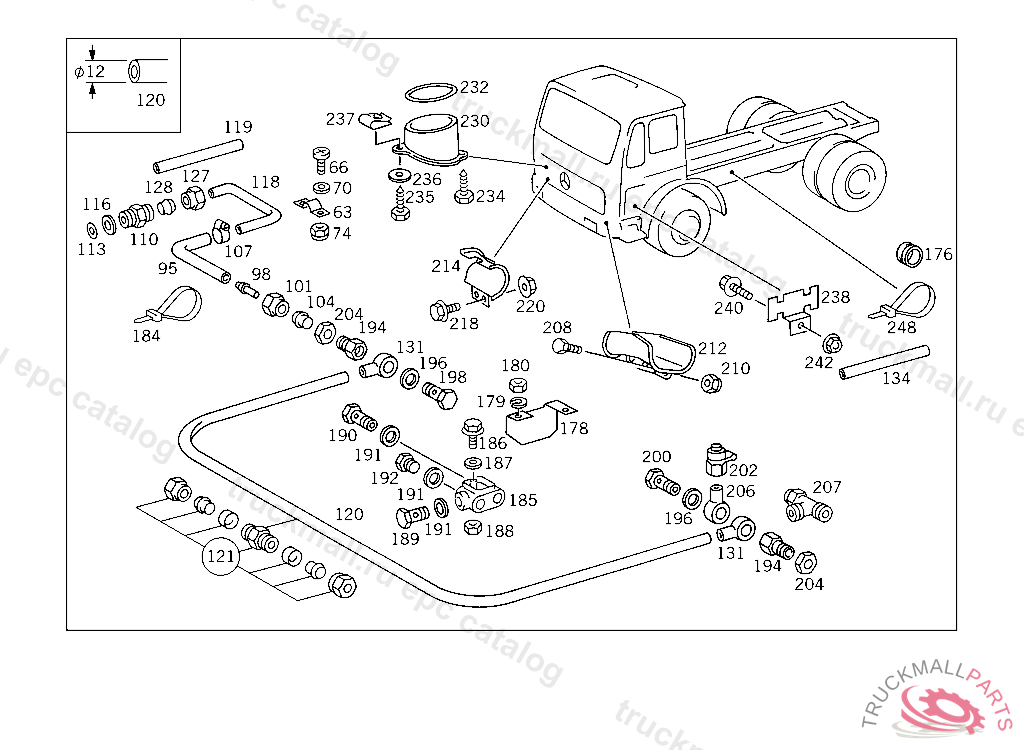

Поз.
Артикул
Описание
63
CLAMP 3/2-WAY SOLENOID VALVE
66
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
70
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
74
NUT , Replaced By: N913004006001
74
NUT PUMP TO BRACKET
95
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
98
FITTING DIAPHRAGM CYLINDER,CONNECTION:
101
UNION NUT LINE CONNECTION, Replaced By: N000000006239
104
GLAND , Replaced By: A0019901967
107
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
107
CLAMP , Replaced By: N000000000667
110
FITTING DELIVERY LINE TO PUMP
110
SCREW-IN FITTING SERVICE BRAKE VALVE
113
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
116
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
118
LINE , Replaced By: A3834290801
118
LINE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
118
LINE , Replaced By: A6254293501
118
LINE , Replaced By: A6194290801
120
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
120
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
120
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
120
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
120
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
120
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
120
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
120
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
120
HOSE , Replaced By: A0009872827
121
FITTING (PARTS KIT),LINE RUPTURE
121
FITTING , Replaced By: A0029906171
127
UNION NUT LINE CONNECTION, Replaced By: N000000006239
128
GLAND , Replaced By: A0019901967
131
BUSHING , Replaced By: N915062009000
131
BANJO UNION , Replaced By: N915052009009
131
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
134
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
134
INSULATING HOSE LINE MOUNTING, ORDER BY THE METER
176
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
176
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
176
GROMMET FOR PASSAGE OF LINE
176
GROMMET42/36 MM, NOT USED
176
GROMMET FOR PASSAGE OF LINE
178
BRACKET , NOT USED
179
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
180
NUT BALL PIVOT TO LEVER
184
LOOM TIE LINE MOUNTING 280 MM
184
LOOM TIE LINE MOUNTING
185
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
186
SCREW CLAMPING PIECE TO BRACKET
186
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X50
187
WASHER , Replaced By: N009021006208
188
NUT , Replaced By: N913004006001
188
NUT AT FILTER BRACKET
189
HOLLOW SCREW LINE CONNECTION
190
HOLLOW SCREW HEATING CONNECTION
191
SEAL RING LINE CONNECTION
192
SCREW PLUG , Replaced By: N000908012009
194
ADAPTER FITTING , Replaced By: A0004296634
194
ADAPTER FITTING , Replaced By: A0004296934
194
ADAPTER FITTING PASSAGE OF LINE THRU SIDE MEMBER,5 395033
196
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
198
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
200
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
202
TEST CONNECTION
202
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
202
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
202
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
202
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
204
NUT BRACKET TO SIDE MEMBER
206
BANJO UNION BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
207
T-FITTING LEFT AND RIGHT BRAKE HOSES
208
SCREW , Replaced By: N304017008034
210
NUT , Replaced By: N913004008001
212
BRACKET RIGHT COMPRESSED AIR LINES
214
BRACKET , Replaced By: A6154200186
218
SCREW , Replaced By: N304017008021
218
SCREW , Replaced By: N910142008009
220
NUT , Replaced By: N913004008001
220
NUT BRACKET TO BRACKET
230
BRACKET FOR PASSAGE OF LINE
232
SEAL RING TO SEAL CABLE HARNESS OPENING IN CAB
234
SHEET METAL SCREW , Replaced By: N007981005321
235
SHEET METAL SCREW BRACKET TO CAB FLOOR
236
WASHER , Replaced By: N009021005205
237
LOCK ELECTRIC CABLE THRU CAB FLOOR
238
BRACKET BREATHER LINE TO SIDE MEMBER
240
SCREW , Replaced By: N304017008027
240
SCREW BRACKET TO FRAME M 8X35
242
NUT , Replaced By: N913004008001
242
NUT BRACKET TO BRACKET
248
LOOM TIE LINE MOUNTING
