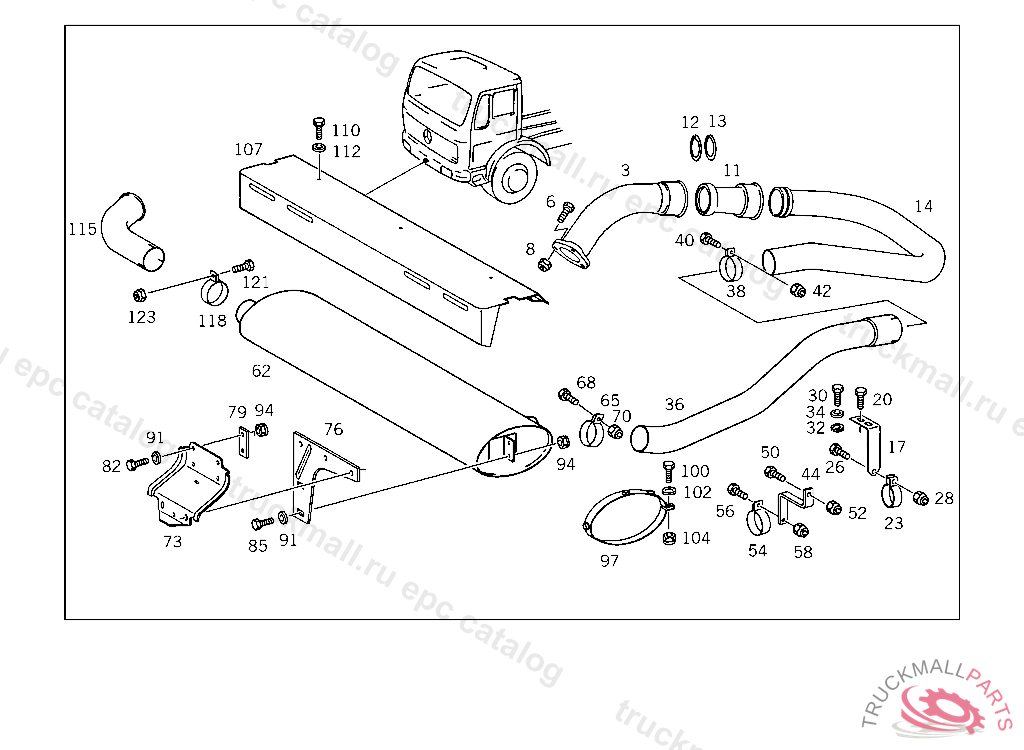

Поз.
Артикул
Описание
3
EXHAUST PIPE FRONT
3
EXHAUST PIPE FRONT
3
EXHAUST PIPE FRONT,FRONT PART,6 003895
6
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
6
SCREW , Replaced By: N000931012186
8
NUT CONNECTOR TO EXHAUST MANIFOLD
11
CONNECTOR EXHAUST PIPE TO EXHAUST PIPE
11
CONNECTOR LEFT
12
SEAL RING BETWEEN FRONT EXHAUST PIPE AND FLEXIBLE METAL TUBE
13
SEAL RING ,5 129244
14
EXHAUST PIPE FRONT,FRONT PART
14
EXHAUST PIPE FRONT,FRONT PART
14
EXHAUST PIPE FRONT,FRONT PART
17
BRACKET FRONT EXHAUST PIPE
17
BRACKET FRONT EXHAUST PIPE SUSPENSION,6 003895
17
BRACKET FRONT EXHAUST PIPE
20
SCREW , Replaced By: N308676014008
23
CLAMP , Replaced By: N071555100501
23
CLAMP , Replaced By: N071555090502
26
SCREW , Replaced By: N304017010002
28
NUT , Replaced By: N910113010000
30
SCREW , Replaced By: N308676012026
32
LOCK WASHER FITTING TO BRACKET
34
WASHER
36
FRONT EXHAUST PIPE FRONT,REAR PART
36
FRONT EXHAUST PIPE FRONT,REAR PART
36
FRONT EXHAUST PIPE FRONT,REAR PART
38
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
40
SCREW , Replaced By: N304017010002
42
NUT , Replaced By: N910113010000
44
BRACKET EXHAUST PIPE
50
SCREW , Replaced By: N304017010002
52
NUT , Replaced By: N910113010000
54
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
54
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
56
SCREW , Replaced By: N304017010002
58
NUT , Replaced By: N910113010000
62
EXHAUST MUFFLER ,5 132914
62
EXHAUST MUFFLER ,5 132915
62
EXHAUST MUFFLER
65
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
65
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
68
SCREW , Replaced By: N304017010002
70
NUT , Replaced By: N910113010000
73
REINFORCEMENT EXHAUST MUFFLER
76
BRACKET EXHAUST MUFFLER,RIGHT,5 381620
76
BRACKET EXHAUST MUFFLER,LEFT
79
PLATE , NOT USED
82
SCREW REAR EXHAUST PIPE TO MUFFLER
85
SCREW , Replaced By: N304017010002
85
SCREW , Replaced By: N304017010002
91
WASHER , Replaced By: N000125010532
91
WASHER , Replaced By: N000125010532
94
NUT , Replaced By: N910113010000
94
NUT , Replaced By: N910113010000
97
CLAMP
100
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
102
WASHER , Replaced By: N000125010532
104
NUT , Replaced By: N910113010000
107
PROTECTIVE PLATE
110
SCREW , Replaced By: A0029904212
112
SPRING WASHER , Replaced By: N000137008212
115
REAR EXHAUST PIPE TAIL PIPE
115
REAR EXHAUST PIPE REAR,5 132915
115
REAR EXHAUST PIPE (TAIL PIPE)
118
CLAMP , Replaced By: N071555090502
118
CLAMP , Replaced By: N071555090502
118
CLAMP , Replaced By: N071555100501
121
SCREW , Replaced By: N304017010002
123
NUT , Replaced By: N910113010000
