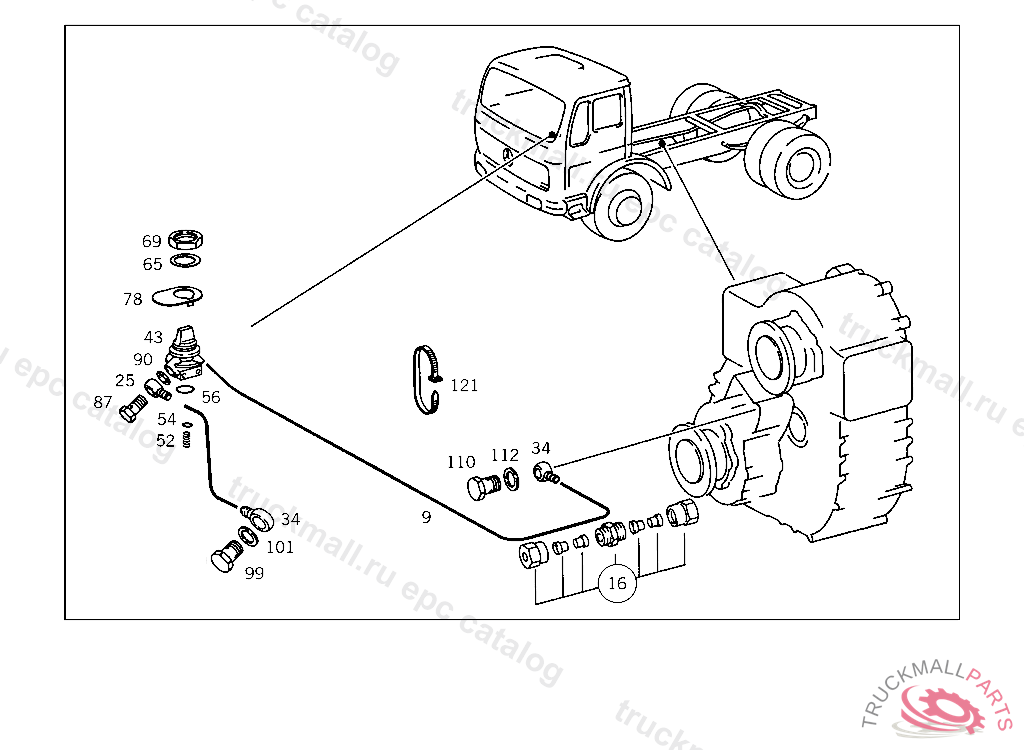

Поз.
Артикул
Описание
9
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
9
PLASTIC PIPE RISING PIPE 4X6 MM
9
PLASTIC PIPE RISING PIPE 4X6 MM
16
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
25
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
34
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
43
VALVE 3/2-WAY BOSCH
43
VALVE 3/2-WAY WABCO
43
VALVE 3/2-WAY KNORR
43
VALVE 3/2-WAY VOSS
52
SPRING INSIDE WABCO
54
SEAL RING INSIDE WABCO
56
SEAL RING TOP WABCO
65
WASHER 3/2-WAY VALVE TO BRACKET
69
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
78
SYMBOL PLATE P.T.O. I
87
HOLLOW SCREW LINE CONNECTION
90
SEAL RING , Replaced By: N007603010110
99
PLUG DISTRIBUTOR,CONNECTION: "7"
101
SEAL RING LINE CONNECTION
110
HOLLOW SCREW LINE CONNECTION
112
SEAL RING LINE CONNECTION
121
LOOM TIE LINE MOUNTING 280 MM
