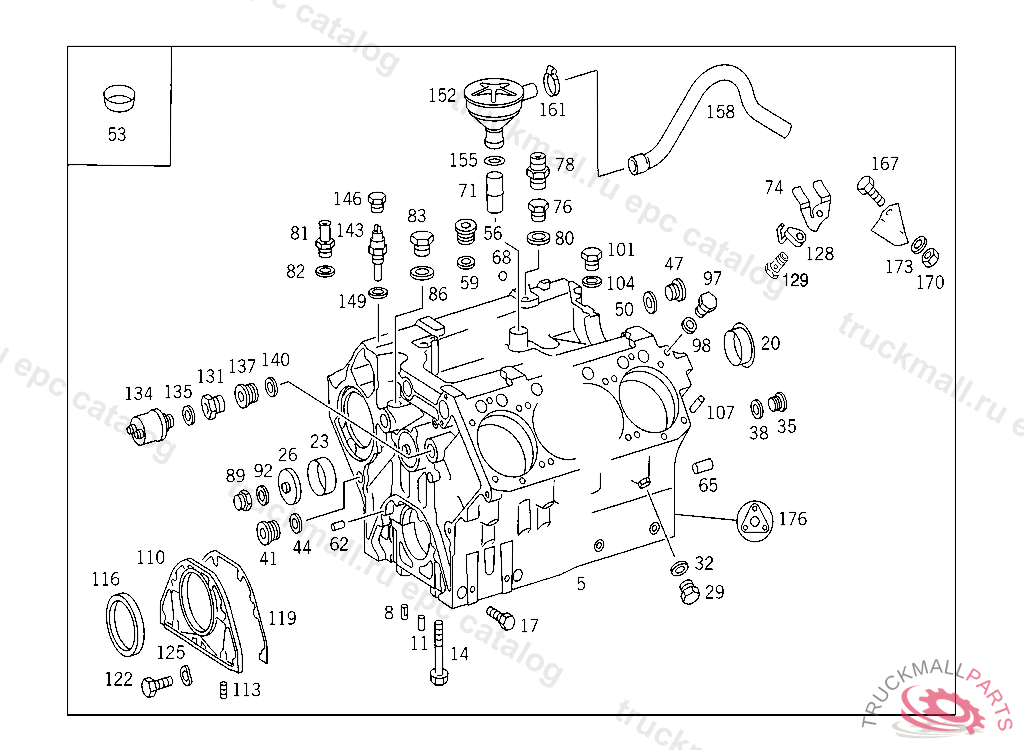

Поз.
Артикул
Описание
5
CRANKCASE
5
CRANKCASE , Replaced By: A4410100208
8
DOWEL PIN , Replaced By: A5419910062
8
DOWEL PIN CRANKSHAFT BEARING CAP
11
CYLINDRICAL PIN
14
SCREW , TO BE ADAPTED DURING ASSEMBLY
14
SCREW CRANKSHAFT BEARING CAP TO CYLINDER CRANKCASE M 18X2X153/35 MM
17
SCREW BRACKET TO BUMPER STRUT
20
CAMSHAFT BEARING WITH COLLAR 70 MM
23
CAMSHAFT BEARING STANDARD 70 MM
26
COVER CAMSHAFT BORE
26
PLUG , Replaced By: A0000110021
26
COVER
29
SCREW PLUG ,819969
32
SEAL RINGTO 000 553 03 05,000 553 18 05,
35
SCREW PLUG BELL HOUSING
38
SEAL RING VALVE TO VALVE,K 025179
41
SCREW PLUG OIL COOLER,5 360280
44
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
47
SCREW PLUG
50
SEAL RING OIL LINE TO OIL COOLER
53
EXPANSION PLUG CORE HOLE 40.30 MM
53
EXPANSION PLUG WATER PASSAGE 36.2 MM
53
EXPANSION PLUG
53
EXPANSION PLUG TO PLUG CORE HOLES 34.2, Replaced By: N000000004057
53
CAP TO PLUG CORE HOLES 34.2
56
SCREW PLUG OIL COOLER,5 360280
59
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
62
CYLINDRICAL PIN FRONT COVER FIXING 8X24
65
CYLINDRICAL PIN TIMING CASE FIXING 16X24
68
BALL TO PLUG OIL CONNECTION TO AIR COMPRESSOR
71
PIPE OIL SEPARATING PIPE
74
SEAL SEALING PLATE,TAPPET SPACE
74
SEAL , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 479815, Replaced By: A4420110082
80
SEAL RINGTO 000 553 03 05,000 553 18 05,
81
CONNECTOR AT COOLING WATER OUTLET
82
SEAL RING CLUTCH BOOSTER
83
SCREW PLUG OIL COOLER,5 360280
86
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
89
NUT AIR RESERVOIR,CONNECTION "14"
92
SEAL RING LINE CONNECTION
101
SCREW PLUG FUEL TANK
101
SCREW PLUG , Replaced By: N007604014110
101
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
104
SEAL RING , Replaced By: N007603010110
104
SEAL RINGTO 000 553 03 05,000 553 18 05,
104
SEAL RING PNEUMATIC VALVE
107
CLAMPING PIN CYLINDER HEAD FIXING
110
COVER , Replaced By: A4570111107
110
COVER , Replaced By: A4030110107
113
THREADED INSERT
116
RADIAL SHAFT SEALING RING CRANKSHAFT SEALING,FRONT, USE THIS SEALING RING FOR NORMAL REPAIR RECOMMENDED FOR TAKING ON STOCK
116
SEAL RING CRANKSHAFT SEALING,FRONT,708527 ONLY USE FOR HEAVY GROOVES AND SCORE MARKS AND HEAVY GROOVES ONCRANKSHAFT JOURNAL. INSTALL SEALING RING TOGETHER WITH RACE A 442 031 00 27 I.D., 105MM
116
SEAL RING CRANKSHAFT SEALING,FRONT, RECOMMENDED FOR TAKING ON STOCK USE THIS SEALING RING FOR NORMAL REPAIR, Replaced By: A0159974746
116
SEAL RING , Replaced By: A0259973947
119
GASKET , Replaced By: A4420110080
119
GASKET , Replaced By: A5410110080
119
GASKET COVER TO CYLINDER CRANKCASE,FRONT
122
SCREW BRACKET TO EXHAUST PIPE BRACKET
125
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
125
SPRING WASHER , Replaced By: N000137008212
128
OIL NOZZLE , Replaced By: A4421800343
128
OIL NOZZLE ,129661785829, Replaced By: A4421800543, +001N915036010103
128
OIL NOZZLE ,785830
129
HOLLOW SCREW HAND PUMP,K 169122
131
INTERMEDIATE PIECE OIL PRESSURE GAUGE TO CYLINDER CRANKCASE
131
INTERMEDIATE PIECE
134
SENDER UNIT OIL PRESSURE GAUGE
134
SENDER UNIT OIL PRESSURE GAUGE
135
SEAL RINGTO 000 553 03 05,000 553 18 05,
137
SCREW PLUG
140
SEAL RING OIL LINE TO OIL COOLER
143
SENDER UNIT COOLING WATER TEMPERATURE
143
SENDER UNIT , Replaced By: A0025427317
149
SEAL RINGTO 000 553 03 05,000 553 18 05,
152
OIL SEPARATOR OIL SEPARATOR,WITH VALVE, ONLY APPLICABLE TO ENGINES WITH TURBOCHARGER
152
OIL DRIP PAN , Replaced By: A0000183735, +001A0009975348
155
SEAL RING
158
HOSE
161
CLAMP25-40X13 MM
161
LOOM TIE , Replaced By: N000000000668
161
CLAMP , Replaced By: A0069970490
176
GASKET KIT , Replaced By: A4210100408
176
GASKET KIT CYLINDER CRANKCASE, FOR BREAK-DOWN OF OF GASKET KIT, SEE END OF GROUP 01, ORDER ADDITIONALLY:"DIRKO-TRANSPARENT" TUBE OF SEALING MATERIAL FOR OF CYLINDER LINEROIL COOLER GASKET ON CYLINDER CRANKCASE,UP TO ENGINE 129660WATER PUMP GASKET ON CYLINDER CRANKCASE,UP TO ENGINE 129660 SEALING MATERIAL FOR CYLINDER LINER OF AIR COMPRESSOR
999
SEAL RING
999
SEAL RING
999
SEAL RING CRANKSHAFT SEALING,REAR,708527 I.D., 120MM
999
SEAL RING , Replaced By: A0139971447
999
SEAL RING , Replaced By: A0249972848
999
SEAL RING AT WATER PUMP
999
INTERMEDIATE RING
999
SEAL RING TO LOCK DELIVERY BEGINNING INSPECTION HOLE TO 423 010 02 17, 38
999
GASKET KIT TIMING CASE TO CYLINDER CRANKCASE
999
GASKET , Replaced By: A4410140422
999
GASKET OIL PAN TO CYLINDER CRANKCASE
999
GASKET , Replaced By: A5410110080
999
SEAL RING COVER TO TIMING CASE
999
RACE ,708527 REPAIR SOLUTION
999
SEAL RING INJECTION PUMP LUBRICATION,473001
999
GASKET TO PLUG AIR COMPRESSOR CONNECTION ON CYLINDER CRANKCASE
999
GASKET OIL FILTER TO CYLINDER CRANKCASE
999
GASKET OIL FILTER TO CYLINDER CRANKCASE
999
GASKET OIL FILTER HEAD & OIL COOLER COVER WITH OIL COOLER TO CRANKCASE
999
GASKET WATER PUMP
999
GASKET WATER PUMP
999
SEAL RING , Replaced By: N007603010110
999
SEALING RING. SEAL RING ENGINE BREATHING
999
SEAL RING POWER STEERING PUMP
999
HOLLOW SCREW , Replaced By: N915036010109
