Mercedes A0005405905 - Жгут проводов

C 200 CGI KOMPRESSOR 203.243

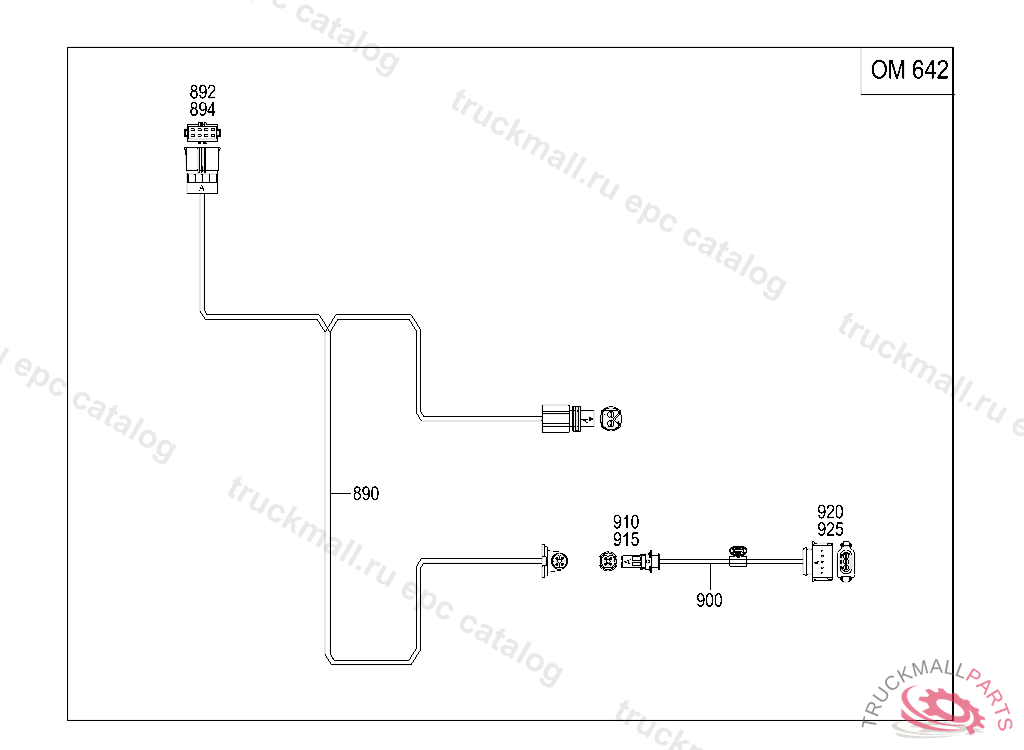

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 121 ENGINE CABLE HARNESS,BODY MOUNTED IL. 6

Поз.
Артикул
Описание
892
A0405452628
PLUG HOUSING COCKPIT/MODULE BOX SEPARATION POINT 8-PIN SLK2.8,X35/6
894
A0005405905
REP.SET CONTACT SEAT MULTIPLE PLUG 1.0 MM2 LKS,X55/3 X55/4, CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED. SEE WIS FOR REPAIR INSTRUCTIONS.SOLDER CONNECTOR SLEEVES:TOTAL WIRE CROSS-SECTION: A 001 546 99 41GREEN0.7 -2.4 MM2 A 002 546 00 41RED2.0 -4.0 MM2 A 002 546 01 41BLUE 3.5 -8.0 MM2 A 002 546 11 41YELLOW 7.5 - 12.0 MM2 BUTT JOINT: A 002 546 13 41 0.5 MM2 A 002 546 14 41 0.8 MM2 A 002 546 15 41 1.3 MM2 A 002 546 16 41 2.0 MM2
910
A0015402381
PIN BUSHING HOUSING
915
A0005404205
REP.SET CONTACT. CABLE HARNESS , A 394036 X 001165 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 449206 WITH CODE 808 A 698507 X 012425 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE FROM A 698508, X 012426 WITH CODE 808
920
A2035453828
HOUSING DIFFERENTIAL PRESSURE SENSOR 3-PIN SLK2.8,B28/8
925
A0005403805
REP.SET CONTACT0.75 MM2 SLK2.8, CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED. SEE WIS FOR REPAIR INSTRUCTIONS.SOLDER CONNECTOR SLEEVES:TOTAL WIRE CROSS-SECTION: A 001 546 99 41GREEN0.7 -2.4 MM2 A 002 546 00 41RED2.0 -4.0 MM2 A 002 546 01 41BLUE 3.5 -8.0 MM2 A 002 546 11 41YELLOW 7.5 - 12.0 MM2 BUTT JOINT: A 002 546 13 41 0.5 MM2 A 002 546 14 41 0.8 MM2 A 002 546 15 41 1.3 MM2 A 002 546 16 41 2.0 MM2
