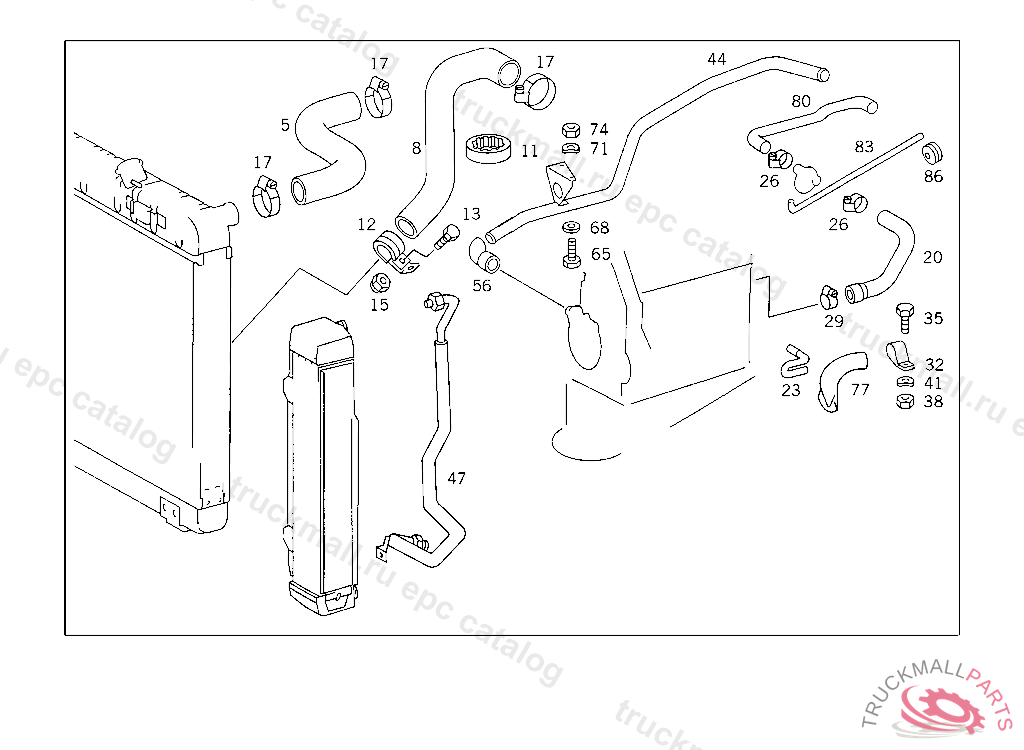

Поз.
Артикул
Описание
5
HOSE TOP
8
HOSE BOTTOM
8
HOSE BOTTOM
12
BRACKET ,035231
13
SCREW BRACKET TO TAIL LAMP BRACKET
15
NUT TACHOGRAPH TO BRACKET
17
CLAMP , Replaced By: N000000000670
17
CLAMP
20
HOSE FROM ENGINE TO CONTROL VALVE
26
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
32
CLAMP FEED LINE
35
SCREW BRACKET TO TAIL LAMP BRACKET
38
NUT TACHOGRAPH TO BRACKET
41
LOCK WASHER BRACKET TO STEERING COLUMN END
47
LINE OIL COOLER
77
GROMMET , Replaced By: A1168350597
77
HOSE WATER TANK DRAIN
80
HOSE HEAT EXCHANGER
83
HOSE ,015182
86
GROMMET MAIN CABLE HARNESS THRU WINDOW SILL 36X25 MM
