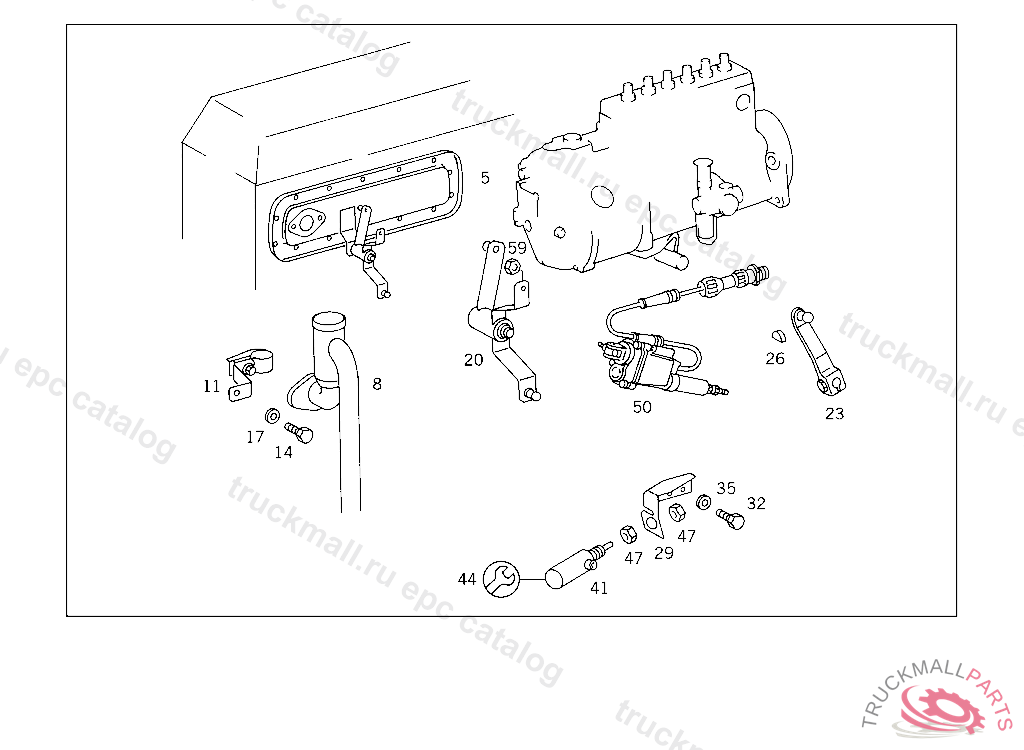

Поз.
Артикул
Описание
5
COVER PUSH ROD CHAMBER,REAR
8
BREATHER PIPE
11
BRACKET BREATHER PIPE BRACKET,654831
14
SCREW POWER CYLINDER TO BRACKET
17
WASHER , Replaced By: N000125008443
20
LEVER CONTROL
23
LEVER CONTROL
26
WOODRUFF KEY LEVER TO INJECTION PUMP
29
BRACKET , Replaced By: A3450757340
29
BRACKET CYLINDER
32
HEX. HEAD SCREW. SCREW BRACKET TO INJECTION PUMP
35
WASHER BRACKET TO INJECTION PUMP
41
CYLINDER , Replaced By: A0000702183
41
CYLINDER , Replaced By: A0000723212
41
CYLINDER , Replaced By: A0000702183
44
REPAIR KITTO 000 070 17 83
47
NUT CYLINDER TO BRACKET
50
MOTOR FINAL CONTROL ELEMENT
59
NUT , Replaced By: N304032006004
999
CYLINDER INJECTION PUMP CONTROL
999
BALL SOCKET PULL ROD TO LEVER
999
BALL SOCKET ACCELERATOR CONTROL
999
SEAL RING MODULATION PRESSURE CONTROL
999
ROD , Replaced By: A6583001715
999
BALL SOCKET
999
BALL PIVOT
999
ROD
