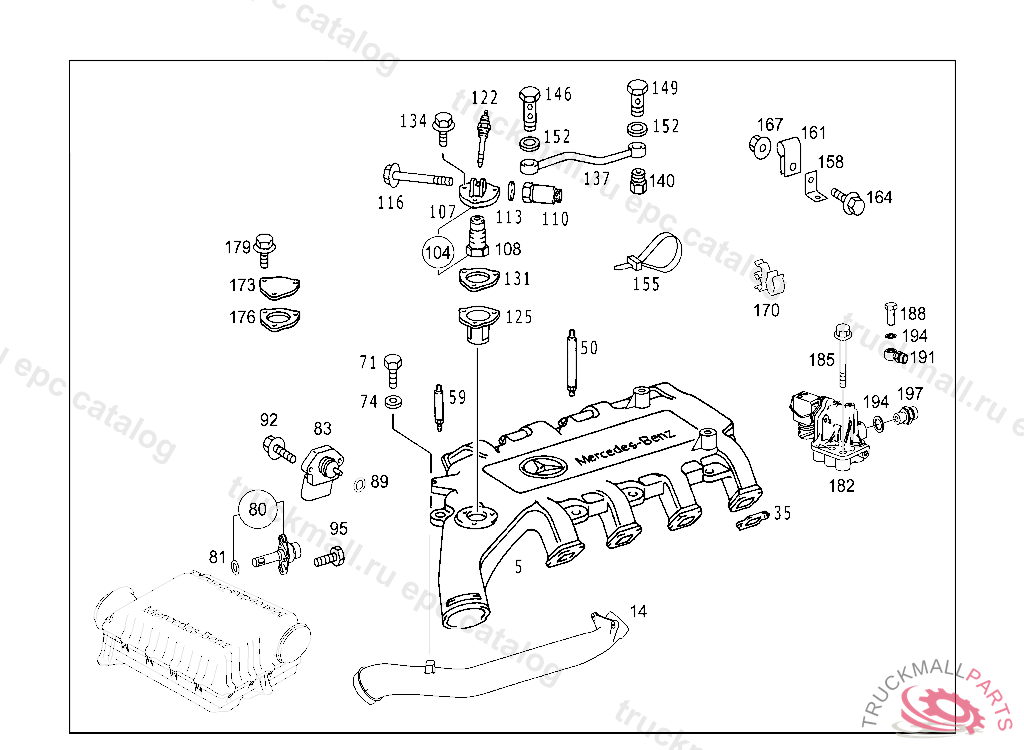

Поз.
Артикул
Описание
35
GASKET INTAKE MANIFOLD TO CYLINDER HEAD
50
SCREW CHARGE AIR HOUSING TO CYLINDER CRAKCASE, 2ND AND 3RD THREADED HOLE FROM REAR LEFT AND RIGHT
50
SCREW CHARGE AIR HOUSING TO CYLINDER CRAKCASE, 1ST THREADED HOLE FROM REAR LEFT AND RIGHT
59
SCREW INTAKE MANIFOLD TO ALTERNATOR CARRIER,*0313193
71
HEXAGON HEAD BOLT MOUNTING,GAS CYLINDERS M10X110
71
SCREW CHARGE-AIR PIPE ON CHARGE-AIR HOUSING M10X60
71
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
83
SENDER UNIT CHARGE AIR PRESSURE AND CHARGE AIR TEMPERATURE
89
RING
92
HEXALOBULAR BOLT LINE MOUNTING M6 X 25
92
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
104
BRACKET NOZZLE HOLDER
107
BRACKET NOZZLE HOLDER
107
BRACKET NOZZLE HOLDER, Replaced By: A5410700840
108
NOZZLE
110
VALVE (ELECTROMAGNET VALVE) 24V
113
SEAL ELECTROMAGNET VALVE
116
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
122
HEATER PLUG
125
BURNER
125
BURNER , Replaced By: A5420700086
131
SEAL TO LOCK THE BORE MEANT FOR FLAME START SYSTEM
134
SCREW BRACKET TO SIDE MEMBER M8X20
137
LINE FROM INJECTION PUMP TO VALVE,*0225131
140
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
146
HOLLOW SCREW FUEL LINES TO SOLENOID VALVE
149
HOLLOW SCREW AT SOLENOID VALVE
149
HOLLOW SCREW FUEL LINE LEADING TO FUEL PUMP
152
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
152
SEALING RING FUEL LINE TO UNIT PUMP AND CYLINDER HEAD
158
ANGLE LINE MOUNTING
161
CLAMP DE-AERATION LINE TO BRACKET
164
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
164
HEXAGON HEAD BOLT LINE MOUNTING M6X10
167
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
170
RANGE SPACER BRACKET FOR FUEL LINE ON BOOST PRESSURE PIPE
173
FLANGE TO LOCK THE BORE MEANT FOR FLAME START SYSTEM
176
SEAL TO LOCK THE BORE MEANT FOR FLAME START SYSTEM
179
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
