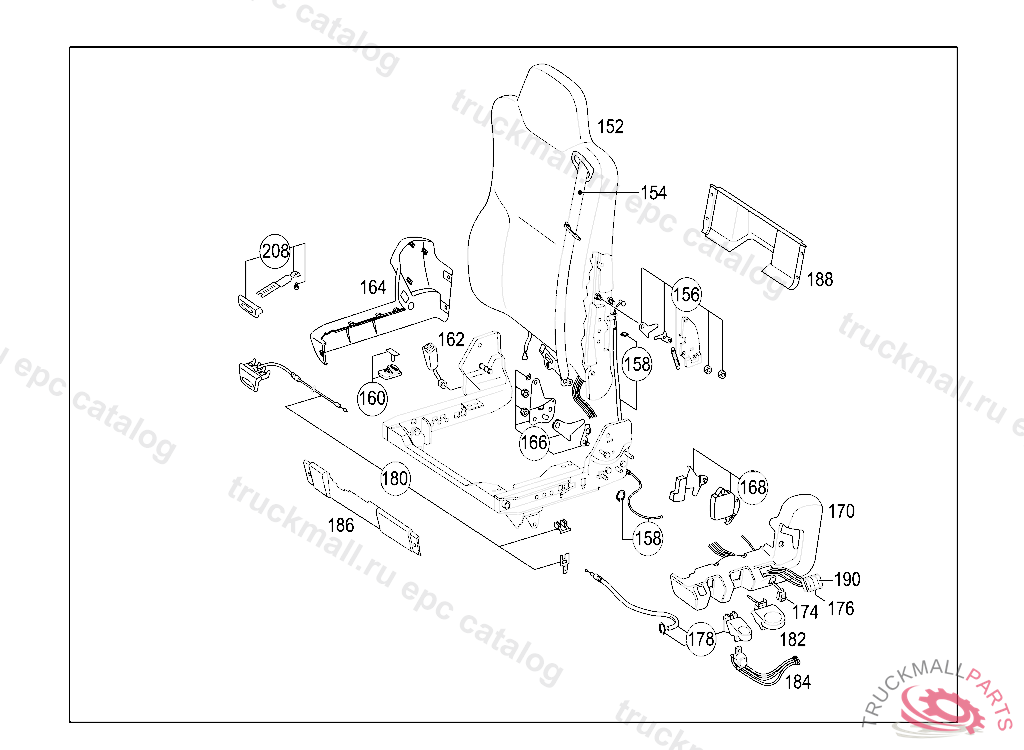

O350 TOURISMO-SHD O 403-SHD EURO2 - 613.485 - 91 FRONT SEATS
Поз.
Артикул
Описание
152
BACKREST
154
SAFETY BELT
156
SEAT ADJUSTER
158
PULL BOWDEN CABLE ON BACK-REST FRAME ASSEMBLY
160
SLIDING JAW SEAT CUSHION
162
FASTENER
164
COVERING SIDE COVER, RIGHT
166
DETENT BACKREST LOCKING MECHANISM,LEFT
168
HANDLE LEFT
170
COVERING (SIDE COVER) OPERATING FACE,LEFT
174
VALVE ROTATING DEVICE
176
VALVE LEFT
178
SEAT ADJUSTER LEFT SHOCK ABSORBER
180
SEAT ADJUSTER RAKE ADJUSTMENT
182
SEAT ADJUSTER HEIGHT ADJUSTMENT,LEFT
184
SEAT ADJUSTER
186
COVERING FRONT COVER
188
COVERING REAR END
190
SWITCH FOR ROCKER SWITCH
208
LEVER SEAT ADJUSTER
