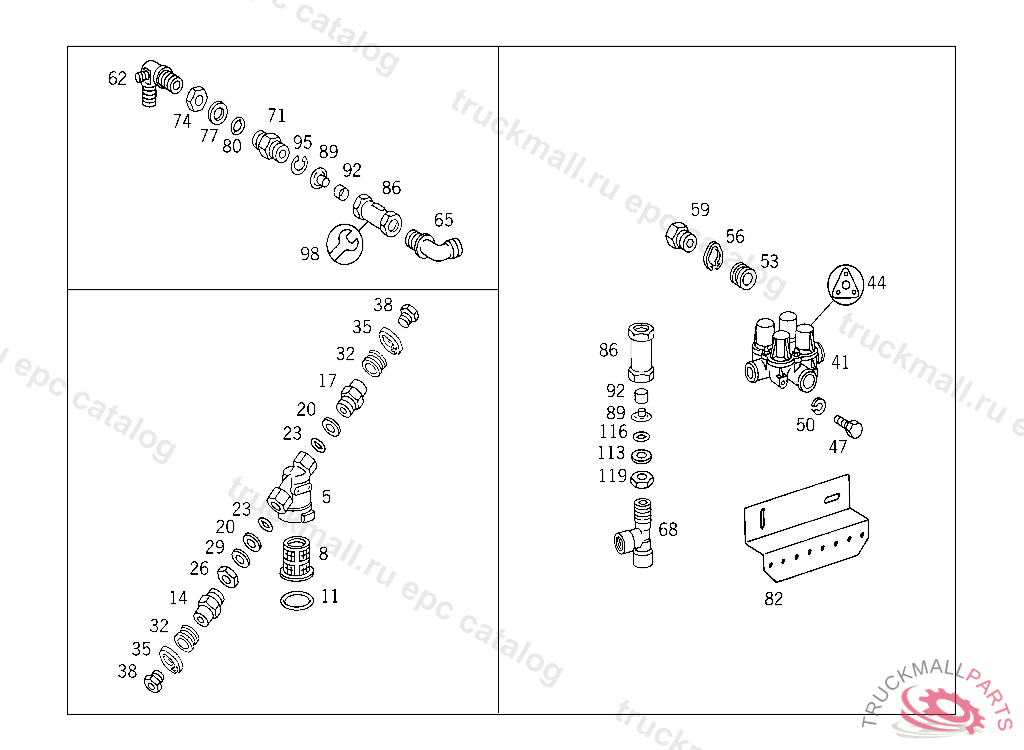

Поз.
Артикул
Описание
5
AIR CLEANER COMPRESSED AIR LINE
8
FILTER ELEMENT
11
SEAL RING39.2X3.0 MM
14
FITTING AT AIR RESERVOIR
14
FITTING AIR RESERVOIR
14
FITTING LINE CONNECTION
17
FITTING LINE CONNECTION
17
FITTING CHECK VALVE
20
THRUST RING CHECK VALVE TO AIR RESERVOIR
20
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
23
O-RING CHECK VALVE TO AIR RESERVOIR
26
NUT CHECK VALVE TO AIR RESERVOIR
29
WASHER
32
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
35
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
38
SCREW. UNION SCREW LINE CONNECTION
41
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
41
VALVE FOUR-CIRCUIT PROTECTIVE VALVE WABCO
41
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) 260 0 WABCO
44
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE
44
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE
47
SCREW , Replaced By: N910143008000
47
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
50
LOCK WASHER RAIL TO BATTERY SUPPORT
53
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
56
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
59
SCREW. UNION SCREW LINE CONNECTION
62
ELBOW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "23"M 22 X 1,5
65
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
68
FITTING FRONT-AXLE/REAR-AXLE REGULATING SOLENOID VALVE,CONNECTIONS: "20,21,22"
71
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
71
FITTING TWO-WAY VALVE,CONNECTION: "2"
71
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
74
NUT CHECK VALVE TO AIR RESERVOIR
74
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
77
THRUST RING CHECK VALVE TO AIR RESERVOIR
77
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
80
O-RING CHECK VALVE TO AIR RESERVOIR
80
SEAL RING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: "23"
80
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
82
BRACKET CONNECTOR
86
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
89
BUSHINGWABCO,5 433388
92
VALVE SEAT RINGWABCO,5 433388
95
LOCK RINGWABCO,5 433388
98
REPAIR KITWABCO
113
THRUST RING CHECK VALVE TO AIR RESERVOIR
113
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
116
O-RING CHECK VALVE TO AIR RESERVOIR
119
NUT CHECK VALVE TO AIR RESERVOIR
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
