Поз.
Артикул
Описание

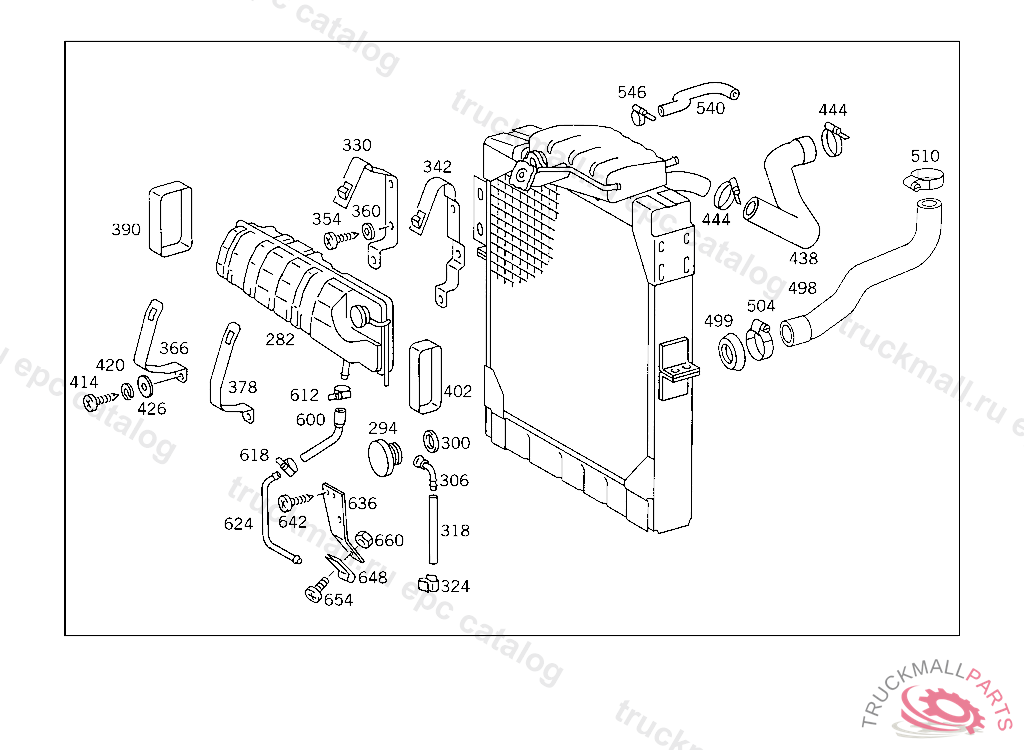

282
TANK (EXPANSION TANK)
294
RADIATOR CAP
300
GASKET O.D., 37 MM
306
DRAIN PIPE EXPANSION TANK
318
HOSE OVERFLOW
324
CLIP CABLE HARNESS TO ROOF RAIL
330
BRACKET EXPANSION TANK
342
BRACKET EXPANSION TANK
354
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
360
WASHER COMPRESSED AIR LINE TO BRACKET
360
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
366
STRAP EXPANSION TANK TO BRACKET
378
STRAP EXPANSION TANK TO BRACKET
390
SHIM EXPANSION TANK TO BRACKET
402
SHIM EXPANSION TANK TO BRACKET
414
SCREW CLAMP MOUNTING M 6X16
414
SCREW , Replaced By: N000000001146
420
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
426
WASHER COMPRESSED AIR LINE TO BRACKET
426
WASHER , Replaced By: N009021006208
444
CLAMP , Replaced By: N000000000671
444
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
504
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
504
CLAMP , Replaced By: N000000000671
600
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
612
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
612
CLAMP , Replaced By: N000000000667
618
CLAMP , Replaced By: N916017011001
618
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
624
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
636
BRACKET DE-AERATION LINE TO CAB
642
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
648
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
648
CLAMP ,K 147121, Replaced By: N000000000319
648
CLAMP , Replaced By: A3604300143
648
CLAMP , Replaced By: N916016008200
654
SCREW , Replaced By: N000000001146
654
SCREW CLAMP MOUNTING M 6X16
660
NUT , Replaced By: N913004006001
660
NUT PUMP TO BRACKET
999
CLAMP OIL DIPSTICK TO RADIATOR
999
WASHER , Replaced By: N009021006208
999
BRACKET OIL DIPSTICK TO RADIATOR
999
BRACKET OI DIPSTICK GUIDE TUBE
999
HOSE
999
HOSE , Replaced By: A0219977682
999
SCREW PLUG , Replaced By: N007604014101
