Поз.
Артикул
Описание

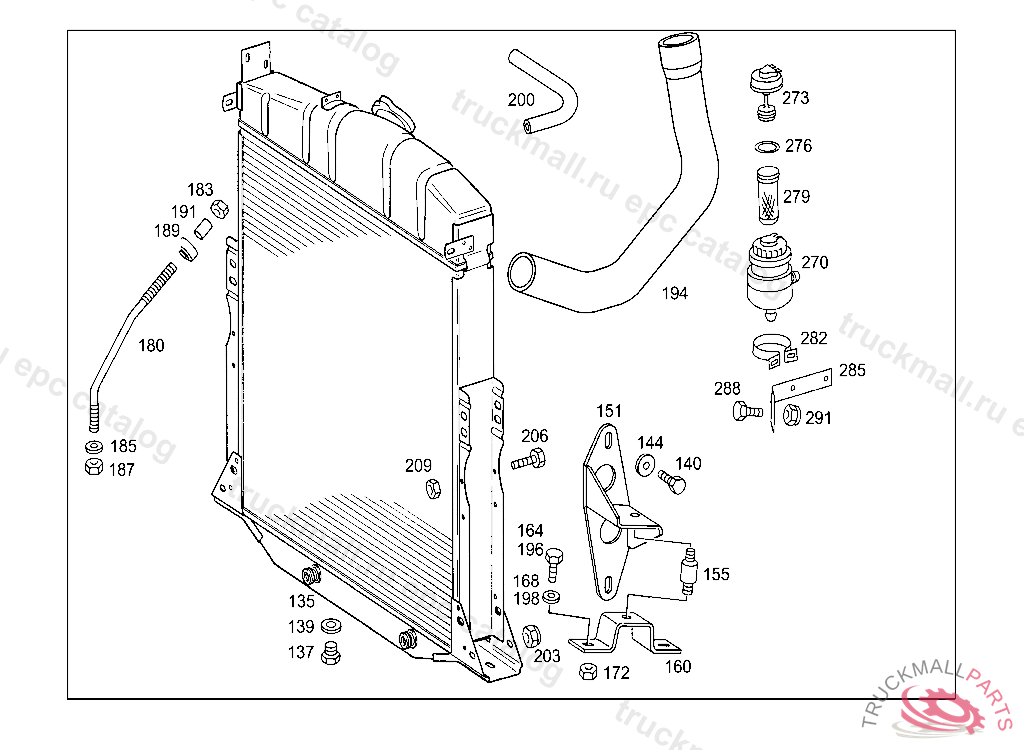

135
RADIATOR WATER, EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 610757
135
RADIATOR , Replaced By: A3185002202
135
RADIATOR WATER,4 755510
135
RADIATOR WATER,4 755509
135
RADIATOR WATER, EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 610757
137
SCREW PLUG FUEL TANK
137
SCREW PLUG , Replaced By: N007604014110
139
SEAL RING FUEL LINE TO FEED PUMP
140
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
140
SCREW , Replaced By: N304017010028
144
WASHER , Replaced By: N000125010532
144
WASHER RADIATOR TO RUBBER MOUNTING
151
SUPPORT LEFT,4 467136
151
SUPPORT RIGHT
155
RUBBER MOUNTING
155
RUBBER MOUNTING
160
BRACKET RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER,4 467136
164
SCREW REAR EXHAUST PIPE TO MUFFLER
168
WASHER , Replaced By: N000125010532
168
WASHER RADIATOR TO RUBBER MOUNTING
172
NUT BRACKET TO SUPPORT AND TO END PIECE
180
RADIATOR STRUT ,4 467135
183
NUT BRACKET TO SUPPORT AND TO END PIECE
185
NUT BRACKET TO SUPPORT AND TO END PIECE
185
NUT BRACKET TO SUPPORT AND TO END PIECE
187
WASHER , Replaced By: N009021010209
187
WASHER BRACKET TO COVERING
189
RUBBER RING SHOCK ABSORBER MOUNTING
191
SPACER TUBE RADIATOR STRUT TO SUPPORT AND TO CAB
194
HOSE FROM RADIATOR TO THERMOSTAT,4 467135
196
SCREW BRACKET TO CAB
198
WASHER , Replaced By: A3609902340
198
WASHER BRACKET TO LEFT SIDE MEMBER
200
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
203
NUT , Replaced By: N910113010000
203
NUT STRAP TO BRACKET
206
SCREW , Replaced By: N304017010002
206
SCREW BRACKET TO SIDE MEMBER
209
NUT BRACKET TO SUPPORT AND TO END PIECE
270
RESERVOIR WITH WARNING DEVICE,4 314610
270
RESERVOIR WITH BRAKE SYSTEM WARNING DEVICE FAG
273
FILLER CAP , Replaced By: A0004313733
273
FILLER CAP , Replaced By: A0004316533
273
FILLER CAP , Replaced By: A0004317633
273
FILLER CAPTO 001 431 38 02,000 431 58 02
276
SEAL RING
276
SEAL RING42X21.5 MM
279
STRAINERTO 001 431 38 02
282
CLAMPTO 000 431 58 02
285
BRACKET FUEL FILTER
288
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
291
NUT , Replaced By: N910113010000
291
NUT STRAP TO BRACKET
999
BRACKET BRACKET TO SIDE MEMBER,4 438716
999
LOCK HYDRAULIC LINES TO FRAME,4 438716
999
BOOT ON PISTON ROD AND PIN
999
BOOT MASTER CYLINDER THRU CAB FLOOR
999
ENGINE CROSS MEMBERNO.3
999
BRACKET LINE MOUNTING
999
PAD BRAKE AND CLUTCH LEVERS
999
LINE FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE 1300 MM
999
LINE1450 MM
999
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL 1700 MM,4 478329
999
RUBBER MOUNTING
999
RUBBER MOUNTING ENGINE FRONT SUSPENSION
999
ENGINE STAY RUBBER MOUNTING TO ENGINE REAR SUPPORT
999
ENGINE STAY RUBBER MOUNTING TO FRONT CROSS MEMBER
999
LOCK
999
CLAMP , Replaced By: N916016008200
999
ROD FROM CLUTCH PEDAL TO MASTER CYLINDER
999
ROD , Replaced By: A3822908419
999
RESERVOIR , Replaced By: A1152900115
999
MASTER CYLINDER , Replaced By: A0012958706
999
CONNECTOR OIL DELIVERY LINE
999
GROMMET ,D 314239
999
RUBBER BUFFER BRACKET TO SUPPORT
999
LOOM TIE LINE MOUNTING 280 MM
999
NEEDLE BEARING , Replaced By: A0119813410
999
PAD , Replaced By: A1072910182
999
SPRING (DEAD CENTER SPRING) 35 MM
999
SPRING RETAINER SPRING TO PUSH ROD
999
STOP
999
STOP
999
SPRING RETAINER SPRING TO PUSH ROD
999
HOSE FROM CLUTCH HOSE TO SLAVE CYLINDER
999
INTERMEDIATE PIECE FROM CLUTCH MASTER CYLINDER TO RESERVOIR
999
RUBBER MOUNTING REAR
999
ENGINE SUPPORT REAR
999
HUB BEARING TUBE
999
PEDAL
999
HUB
999
BUSHING CLUTCH PEDAL
999
ENGINE CROSS MEMBER REAR NO.3
999
ROD ,6150698 0000014 2827078 000001-8 001702
999
RADIATORBEHR,4 755510
999
BRACKET FLEXIBLE SHAFT
999
PEDAL PLATE , Replaced By: A3162900024
999
PEDAL CLUTCH
999
ROD ,4 282708
999
STOP
999
SPACER TUBE CLUTCH PEDAL
999
PIN CLUTCH PEDAL
999
LEVER
