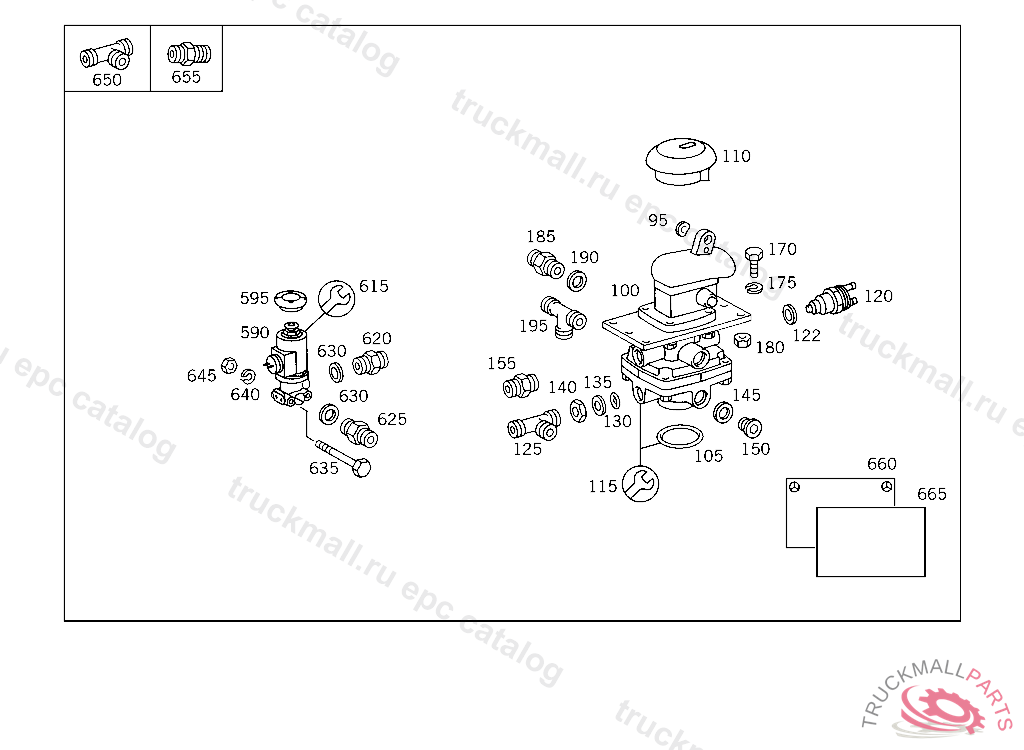

Поз.
Артикул
Описание
95
SPRING WASHER
100
BRAKE VALVE TWO-CIRCUIT, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
105
SEAL RINGTO 001 431 57 05,4 868986
110
PROTECTIVE CAP
115
BUSHING
115
SEAL RING
115
SEAL RING
115
SEAL RING
115
REPAIR KITTO 000 431 94 05
115
REPAIR KIT COMPRESSED AIR CYLINDER TO 001 431 35 05,001 431 94 05,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
120
SWITCH , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 360728, Replaced By: A0005457909
120
SWITCH , Replaced By: A0005459009
120
SWITCH , Replaced By: A0015451109
120
SWITCH TORQUE REDUCER
120
SWITCH , Replaced By: A0015452709
122
SEAL RING LINE CONNECTION
125
T-FITTING REAR AXLE BRAKE CIRCUIT
125
FITTING , Replaced By: A0009902570
130
O-RING CHECK VALVE TO AIR RESERVOIR
135
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
140
NUT CHECK VALVE TO AIR RESERVOIR
145
SEAL RING LINE CONNECTION
150
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
150
SCREW PLUG , Replaced By: N000908022011
155
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
155
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236
155
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236, Replaced By: N000000006190
170
SCREW BRACKET TO SIDE MEMBER
170
SCREW , Replaced By: N304017010002
175
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
180
NUT BRACKET TO SUPPORT AND TO END PIECE
185
FITTING , Replaced By: A0019972372
185
FITTING SHUTTLE VALVE,CONNECTION: "20"
185
FITTING , Replaced By: A0019972372
190
SEAL RING LINE CONNECTION
195
T-FITTING REAR AXLE BRAKE CIRCUIT
195
FITTING , Replaced By: A0009902570
590
VALVE (SOLENOID VALVE) HERION
590
VALVE (SOLENOID VALVE) WABCO
590
VALVE , Replaced By: A0039971836
595
PROTECTIVE CAPWABCO
615
REPAIR KITTO 001 997 18 36,001 997 19 36
615
REPAIR KIT , Replaced By: A0024302260
615
REPAIR KITTO 001 997 34 36,002 997 58 36,
615
REPAIR KIT , Replaced By: A0012608357
615
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
620
TS DOUBLE FITTING SOLENOID VALVE
620
FITTING , Replaced By: A0029906071
620
FITTING , Replaced By: A0039979072
620
DOUBLE FITTING , Replaced By: A0019972872
625
FITTING LINE CONNECTION
625
FITTING LINE CONNECTION, Replaced By: N000000006446
625
SCREW-IN FITTING LINE CONNECTION
630
SEAL RING LINE CONNECTION
635
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
640
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
645
NUT , Replaced By: N304032008006
650
T-FITTING REAR AXLE BRAKE CIRCUIT
650
FITTING , Replaced By: A0009902570
655
FITTING HYDRAULIC LINE TO BRACKET,K 130132
660
GUIDE SIGN IN GERMAN
665
ADHESIVE FOIL GUIDE SIGN
999
999
BRAKE VALVE TWO-CIRCUIT BRAKE VALVE, FROM IDENT NO. 002125-002689 AND FROM IDENT NO. 003724 ALSO INSTALLED ON 002708,003720
999
CONTROL COCK
999
SWITCH BUS STOP BRAKE
999
LEVER BRAKE VALVE
999
INTERMEDIATE SHAFT BRAKE VALVE
999
LOCK WASHER CLAMP TO BRACKET
999
SCREW
999
NUT , Replaced By: N304032006004
999
SEAL RING
999
SEAL RINGTO 376 131 74 01
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
PULL ROD12X1300
