Поз.
Артикул
Описание

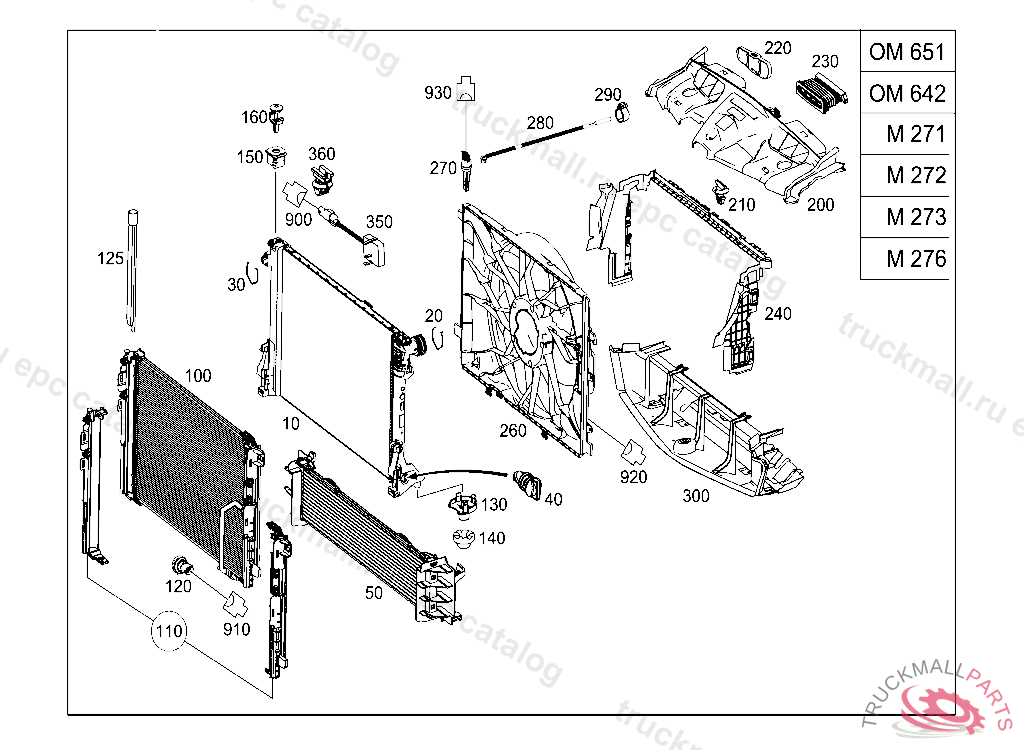

10
WATER COOLER
10
WATER COOLER
10
RADIATOR , Replaced By: A2045003603
20
DETENT SPRING COOLANT HOSE, LEFT, TO RADIATOR SCB3646.4MM
30
DETENT SPRING COOLANT HOSE, LEFT, TO RADIATOR SCB3646.4MM
30
DETENT SPRING FILLING HOSE TO RADIATOR SCB1727MM
30
STOP SPRING VENT LINE AT COOLER, RIGHT 8.8 MM
40
DRAIN PLUG DRAIN PLUG
100
CAPACITOR
100
CONDENSER , Replaced By: A2045000654
110
BRACKET LEFT AND RIGHT CONDENSER
120
PRESSURE SENSORM 10, Replaced By: A2110000283
120
PRESSURE SENSOR
125
REFRIGERANT DRIER F AC
130
RADIATOR BEARING REPAIR SOLUTION, COOLER, BOTTOM LEFT AND RIGHT
140
RUBBER MOUNT BOTTOM LEFT & RIGHT
140
ELASTOMER BEARING RADIATOR BOTTOM, Replaced By: A0995040212
140
ELASTOMER BEARING RADIATOR BOTTOM
150
BEARING TOP LEFT AND RIGHT, J 06236120041209
160
CLIP RADIATOR TOP
200
FAN SHROUD TOP
210
CATCH COVERING TO COVERING
230
AIR DUCT ON FAN SHROUD
240
AIR DUCT TOP
240
AIR BAFFLE TOP
260
BLOWER600W, Replaced By: A2049066802
260
BLOWER
280
HOSE LINE FROM VACUUM BOX TO INTAKE MANIFOLD
280
HOSE LINE FROM VACUUM BOX TO INTAKE MANIFOLD
300
AIR DUCT
300
AIR BAFFLE BOTTOM
910
CLUTCH. PIN BUSHING HOUSING SIREN
920
PIN BUSHING HOUSING ENGINE CABLE HARNESS PLUG-CONNECTION 4-PIN SLK2.8, LSK8,X26/29
