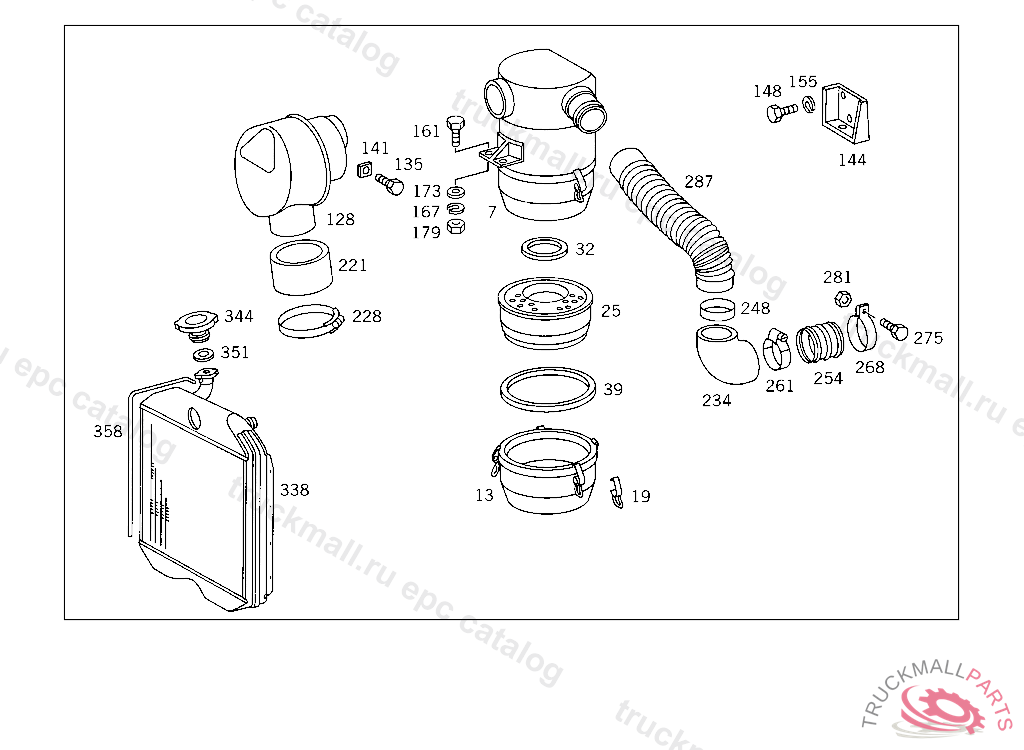

Поз.
Артикул
Описание
7
AIR CLEANER OIL BATH MANN & HUMMEL, 705599
7
AIR CLEANER , 705598, Replaced By: A0060948702, +001A0060948802
13
FILTER BOWL
13
FILTER BOWL OIL BATH AIR CLEANER, 705598
19
FASTENER
25
FILTER ELEMENT OIL BATH AIR CLEANER, 705598
25
FILTER ELEMENT
32
GASKET INSIDE
39
GASKET OIL BATH AIR CLEANER, 705598
39
GASKET OUTSIDE
128
AIR CLEANER , 705598, Replaced By: A0060948802, +001A0060948702
128
AIR CLEANER CYCLONE MANN & HUMMEL, 705599
135
HEX. -HD. SCREW. SCREWTO 006 094 88 02
135
SCREWTO 005 094 58 02
135
SCREW , Replaced By: A0000941571
141
NUT
144
BRACKET , 352.00/1,353,358 FROM CHASSIS 676465 ALSO INSTALLED ON 500001-599999,TYP 360 FROM CHASSIS 676465
148
SCREW SUPPORT TO FENDER
148
SCREW , Replaced By: N304017008018
155
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
161
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
167
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
173
WASHER , Replaced By: N000125010532
173
WASHER RADIATOR TO RUBBER MOUNTING
179
NUT BRACKET TO SUPPORT AND TO END PIECE
221
HOSE FROM AIR CLEANER TO MUFFLER, ORDER BY THE METER
221
HOSE 250 MM LONG FROM OIL BATH AIR CLEANER TO AIR INTAKE PIPE,CLEANER AIR
228
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
228
CLAMP , Replaced By: A0059971490
234
HOSE
234
PIPE ELBOW , Replaced By: A3529971382, +001A3525282109, +001N916018080000
248
HOSE25 MM, 630042
254
PIPE HOSE,4 870509
261
CLAMP , Replaced By: A0059972990
261
CLAMP , Replaced By: N000000000675
261
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
268
CLAMP BREATHER LINE TO CYLINDER HEAD COVER, 630042
275
SCREW END PIECE TO EXHAUST PIPE M 10X25
281
NUT BRACKET TO SUPPORT AND TO END PIECE
287
HOSE FROM AIR INTAKE PIPE TO OIL BATH AIR CLEANER 290 MM
287
HOSE , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 870509, Replaced By: A3529974582
287
HOSE FROM AIR INTAKE PIPE TO OIL BATH AIR CLEANER 410 MM
287
HOSE FROM AIR INTAKE PIPE TO OIL BATH AIR CLEANER 450 MM
338
RADIATOR ,4 830413
338
RADIATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 744548, Replaced By: A3235010701
338
RADIATOR , Replaced By: A3525012701
338
RADIATOR
344
RADIATOR CAP WITH PRESSURE RELIEF VALVE
351
GASKET O.D., 37 MM
358
HOSE , Replaced By: A0139978682
358
HOSE OVERFLOW
999
BRACKET OIL TANK
999
BRACKET OIL TANK,5 236371
999
DRAIN PIPE
999
RADIATOR ,4 830413
999
LINE
999
LINE 18 MM FROM AIR COMPRESSOR TO PRESSURE REGULATOR WITH TIRE INFLATING CONNECTION, FROM CHASSIS 023244, EXCEPT FOR, SEE FOOTNOTE 78
999
RADIATOR
999
RADIATOR , Replaced By: A3525011801
999
CLAMP , Replaced By: A3049950120
999
AIR CLEANERMANN & HUMMEL
999
LINE , Replaced By: A0005516256
