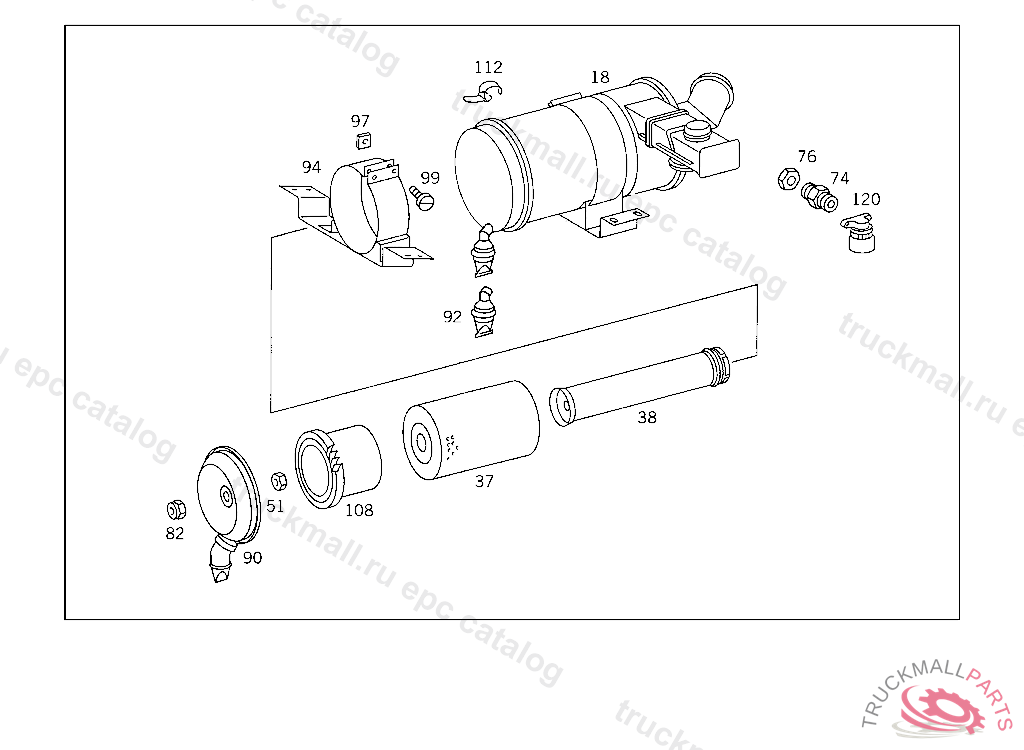

Поз.
Артикул
Описание
18
AIR CLEANER
37
FILTER ELEMENT
37
FILTER ELEMENTTO 308 094 71 02
37
FILTER ELEMENTTO 376 090 82 04
37
FILTER ELEMENTTO 376 090 82 04
38
FILTER ELEMENT ADDITIONAL
51
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
51
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
51
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
74
ADAPTER FITTINGTO 345 094 78 02,345 094 79 02
74
THREADED UNIONTO 345 094 81 02,80 02,85 02
76
THREADED NIPPLETO 345 094 78 02,345 094 79 02
76
NUTTO 345 094 81 02,80 02,85 02
82
NUT
90
FILTER BOWLTO 345 094 80 02,81 02,85 02
90
FILTER BOWLTO 345 094 78 02,345 094 79 02
92
VALVETO 376 090 96 01
92
SEPARATORTO 374 094 00 02
94
BRACKET
97
NUT
99
SCREW CABLE CONNECTOR TO BRACKET
108
CYCLONE PRE-FILTER BOWL CYCLONE TO 308 094 74 02
108
CYCLONE PRE-FILTER BOWLTO 345 094 77 02,345 094 78 02
108
FILTER BOWLTO 376 090 96 01CICLONIZADOR
112
FASTENERTO 376 090 96 01
120
VACUUM BOXTO 345 094 85 02
999
INTAKE PIPE
999
HOSE AIR CLEANER, 352.00/1,353,358 FROM CHASSIS 676465-4 153178 ALSO INSTALLED ON 500001-515186,TYP 360 FROM CHASSIS 676465-4 153178
999
HOSE
999
RUBBER BUFFER EXHAUST MUFFLER
999
LOOM TIE , Replaced By: A0009979990
999
LOOM TIE , Replaced By: N916018090000
999
AIR CLEANER , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 632989, Replaced By: A3080947402
999
AIR CLEANERMANN
999
NUTTO 344 094 70 02
999
AIR CLEANER , 032,033,040,041,132,133,140,141 FROM CAB 1500001 INAPPLICABLE TO SUPERCHARGING SYSTEM 030-041 UP TO IDENT NO.: 679207
999
AIR INTAKE PIPE
999
PIPE ELBOW , INAPPLICABLE TO SUPERCHARGING SYSTEM, Replaced By: A3445288708, +001A3529971382, +002A3449979890
999
AIR INTAKE PIPE
999
CLAMP MAIN CABLE HARNESS TO FIRE WALL
999
LOOM TIE. CLAMP
999
CLAMP. LOOM TIE90-110
999
CLAMP100-120
999
HOSE
999
AIR CLEANER , Replaced By: A3450948002
999
FILTER ELEMENT , Replaced By: A3440947104
999
HOSE FROM AIR CLEANER TO REAR EXHAUST PIPE T-FITTING
999
AIR CLEANER , MANN DO BRASIL, Replaced By: A3450947902
999
AIR CLEANER , Replaced By: A3450947802
999
AIR CLEANER"MANN DO BRASIL", 030-041 FROM IDENT NO.: 679208
999
BRACKET BATTERY CABLE
999
BRACKET MOUNTING USED FOR COMPRESSED AIR LINES
999
PIPE ELBOW , 401,402,403,406,407,408,420,424 FROM CHASSIS 12245602 INAPPLICABLE TO SUPERCHARGING SYSTEM
999
BRACKET AIR CLEANER,604174
999
BRACKET
999
BRACKET AIR INTAKE CASE,483437
999
BRACKET ,604174
999
BRACKET FUEL LINE
999
BRACKET , Replaced By: A3464296040
999
COOLING WATER PIPE FROM BUBBLE SEPARATOR TO WATER PUMP
999
HOSE
999
SWITCH
