Поз.
Артикул
Описание

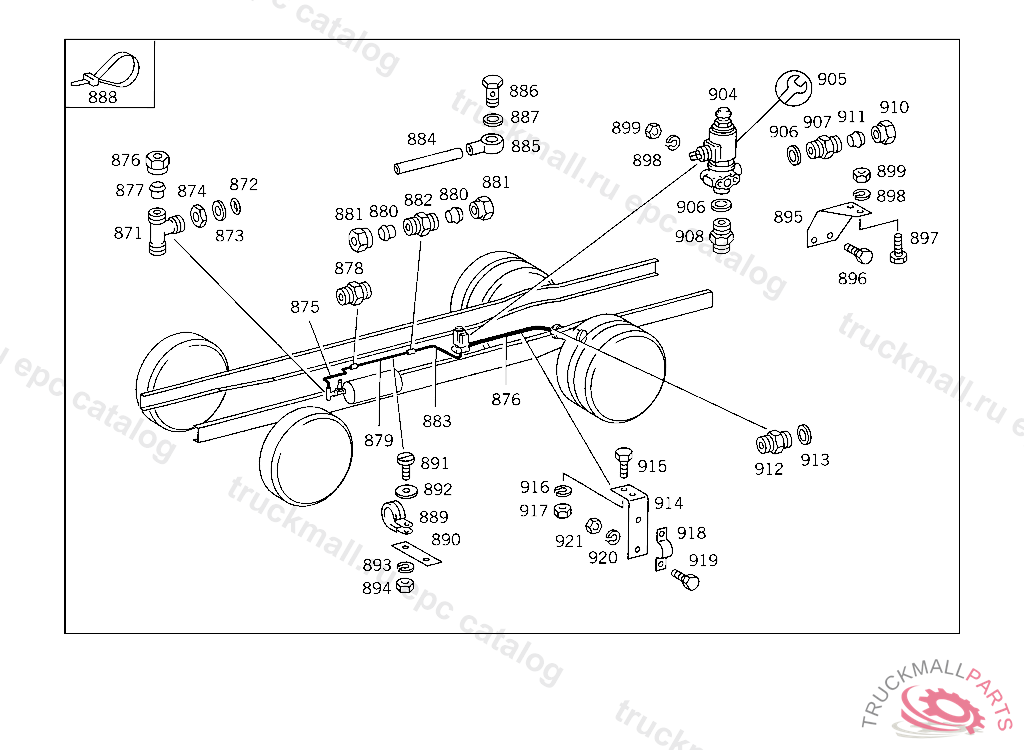

884
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
885
BANJO UNION
885
BANJO UNION
886
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
887
SEAL RING LINE CONNECTION
888
LOOM TIE LINE MOUNTING
888
LOOM TIE , Replaced By: A0019978490
895
BRACKET VALVE
897
SCREW BRACKET TO CROSS MEMBER
897
SCREW STEERING SHAFT BEARING TO CAB M 8X20
898
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
899
NUT TAIL LAMP TO BRACKET
904
VALVE , Replaced By: A0029975836
904
VALVE , Replaced By: A0039971736
905
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
905
REPAIR KIT , Replaced By: A0024302260
906
SEAL RING
908
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
910
UNION NUT LINE CONNECTION
911
GLAND LINE CONNECTION
912
SCREW-IN FITTING LINE CONNECTION
913
SEAL RING
914
BRACKET LINE MOUNTING
918
CLAMP LINE MOUNTING
919
SCREWM 6X12
920
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
921
NUT CLAMP TO BRACKET
999
REPAIR KITTO 002 431 01 06
999
VALVE SEAT RINGWABCO,5 433388
999
DIAPHRAGMTO 344 429 73 44
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
SPRING RETAINERTO 000 429 63 44,000 429 59 44
999
VALVE (CHECK VALVE)
999
DIAPHRAGM , Replaced By: A0004290745
999
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
999
DIAPHRAGM
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
VALVE (OVERFLOW VALVE) WESTINGHOUSE
999
REPAIR KITTO 002 431 01 06
999
VALVE HAND BRAKE VALVE,A 069205
999
VALVE HAND BRAKE VALVE WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
REPAIR KITTO 000 430 55 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KIT BRAKE POWER REGULATOR WABCO
999
BREATHER PIPETO 001 431 83 05,WABCO
999
DIAPHRAGMTO 000 429 63 44
999
METAL SPRING BELLOWS ,5 557359
999
TEST CONNECTION
999
FILLER RINGTO 001 431 83 05,WABCO
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
VALVE , Replaced By: A0014295244
999
PISTONTO 001 431 83 05,WABCO
999
PISTONTO 345 431 71 05
999
PISTONTO 002 431 27 05
999
PISTONTO 002 431 27 05
999
PISTONTO 345 431 70 05
999
REPAIR KITWABCO
999
REPAIR KIT LOAD/NO-LOAD TO 000 431 33 18,000 431 58 13
999
REPAIR KIT , Replaced By: A0004305760
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
PRESSURE REGULATOR , Replaced By: A0024314906
999
PRESSURE REGULATOR , Replaced By: A0024314906
999
SPRINGTO 345 431 70 05
999
SPRINGTO 345 431 70 05
999
SPRINGTO 001 431 83 05
999
SPRINGTO 345 431 71 05
999
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO
999
VALVE , Replaced By: A0034315006
999
VALVE , Replaced By: A0024314006
999
BRAKE VALVE (SERVICE BRAKE VALVE) KNORR
999
PRESSURE REGULATOR , Replaced By: A0024318306
999
SPRINGTO 000 429 63 44,000 429 59 44
999
VALVE
999
VALVE , Replaced By: A3454317406
999
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 087820, Replaced By: A0034315006
999
VALVE (CHECK VALVE)
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE
999
REPAIR KITTO 001 431 87 06,KNORR
999
LOCK , Replaced By: N000472060000
999
LOCK , Replaced By: N000472045000
999
LOCK , Replaced By: N000984038000
999
LOCK , Replaced By: N000472047001
999
LOCKTO 345 431 70 05
999
FITTING , Replaced By: A0029906171
999
HOSE , Replaced By: A0089976082
999
FITTING. HOSE FITTINGM 42 X 2, 867166
999
THRUST RING LOCKING VALVE
999
ELBOW FITTING , Replaced By: A3849907071
999
CLAMP FUEL LINE TO BRACKET
999
CLAMP COMPRESSED AIR LINE TO BRACKET,A 069682
999
CLAMP 3/2-WAY SOLENOID VALVE
999
FITTING AIR BRAKE CYLINDER,549430
999
LINE LEFT FRONT WHEEL,A 069682
999
LINE FRONT AXLE,RIGHT,A 069682
999
BRACKET PRESSURE REGULATOR,A 069205
999
BRACKET PRESSURE REGULATOR TO BATTERY SUPPORT
999
CONNECTOR AT AIR COMPRESSOR
999
LINE , Replaced By: A3414308466
999
LINE , Replaced By: A3414308566
999
ELBOW FITTING PRESSURE REGULATOR,CONNECTION "1",A 069205
999
ELBOW FITTING AT PRESSURE REGULATOR
999
LINE , Replaced By: A3414309864
999
LINE , Replaced By: A3414309964
999
LINE FROM FITTING TO DIAPHRAGM CYLINDER 12 MM,A 069205
999
LINE LEFT FRONT WHEEL
999
SEAL RING , Replaced By: A0009870446
999
CONNECTOR , Replaced By: A0004310735
999
LINE FROM AIR RESERVOIR II TWO-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR III
999
LINE FROM ELBOW FITTING TO COMBINATION CYLINDER
999
T-FITTING
999
LINE FROM PRESSURE REGULATOR TO T-FITTING
999
LINE FROM T-FITTING TO AIR RESERVOIR I OVERFLOW VALVE
999
LINE FROM T-FITTING TO AIR RESERVOIR II TWO-CIRCUIT PROTECTIVE VALVE
999
LINE , Replaced By: A3514200826
999
UNION NUT , USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
CONNECTOR AIR RESERVOIR,A 90243
999
ELBOW FITTING AT LEFT AND RIGHT DIAPHRAGM CYLINDERS,A 069205
999
ELBOW FITTING THROUGH SIDE MEMBER
999
LINE FITTING TO AIR COMPRESSOR
999
LINE FROM FITTING TO BULKHEAD FITTING
999
LINE FROM DOUBLE FITTING TO BULKHEAD FITTING
999
FITTING HAND BRAKE VALVE,CONNECTIONS: "1,2,3",A 069205
999
FITTING THROUGH SIDE MEMBER
999
ELECTRIC CABLE FROM FIRE WALL TO EMERGENCY RELEASE VALVE
999
SCREW COMPRESSED AIR LINE TO ENGINE MOUNTING SUPPORTING ARM
999
COTTER PIN ROD TO INTERMEDIATE LEVER
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER TRAILER PLUG SOCKET TO BRACKET
999
WASHER
999
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
999
LOCK WASHER CLAMP TO BRACKET
999
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
999
LOCK WASHER RAIL TO SUBSTRUCTURE
999
LOCK RINGTO 345 431 71 05
999
LOCK RING
999
LOCK RING PLANETARY CARRIER
999
SCREW , Replaced By: N304014008007
999
SCREW , Replaced By: N304017006016
999
SCREW PRESSURE REGULATOR WITH TIRE INFLATOR CONNECTION TO SUBSTRUCTURE
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW PRESSURE REGULATOR TO BRACKET
999
SCREW ENGINE CROSS MEMBER TO SIDE MEMBERS M 10X25
999
SCREW , Replaced By: N304017010002
999
SCREW METAL SPRING BELLOWS TO WEB
999
NUT , Replaced By: N304032006004
999
NUT LEVER TO SHIFTING SHAFT
999
NUT , Replaced By: N304032008006
999
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
NUT , Replaced By: N308673014001
999
SCREW CONSOLE TO SIDE MEMBER M 14X1.5X40
999
SCREW HAND BRAKE VALVE TO SEAT BOX,A 069205
999
LOCK RINGTO 345 431 71 05
999
GLAND ,4 282708
999
GLAND , Replaced By: A0019901967
999
GLAND LINE CONNECTION
999
SCREW-IN FITTING OIL LINE CONNECTION
999
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
999
BULKHEAD FITTING FROM BRAKE VALVE,CONNECTION "21",TO FITTING
999
FITTING , Replaced By: A0009907871
999
SEAL RINGTO 000 553 03 05,000 553 18 05,
999
SEAL RINGTO 006 997 00 72
999
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
SEAL RING LINE CONNECTION
999
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
999
DOUBLE FITTING FROM PRESSURE REGULATOR TO AIR RESERVOIR
999
T-FITTING COMPRESSED AIR VALVE CONNECTION
999
FITTING FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
999
FITTING ,4 667210
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
NUT BRACKET TO SIDE MEMBER
999
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
999
NUT ELBOW FITTING TO SIDE MEMBER
999
LOCK WASHER
999
NUT , Replaced By: N913004006001
999
NUT , Replaced By: N913004008001
999
NUT BRACKET TO CAB FLOOR
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
UNION NUT LINE CONNECTION
999
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "12"
999
SEAL RING , Replaced By: N007603012121
999
HOLLOW SCREW LINE TO OIL RADIATOR
999
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM,026097
999
SLEEVE LEAK LINE
999
SLEEVE LINE CONNECTION
999
SLEEVE LINE CONNECTION
999
CLAMP , Replaced By: A0059972790
999
CLAMP LINE MOUNTING
999
HOSE BRAKE HOSE 370 MM
999
HOSE FROM T-FITTING TO LEFT AND RIGHT DIAPHRAGM CYLINDERS 11X480
999
HOSE BRAKE HOSE 500 MM,A 069681
999
HOSE BRAKE HOSE 430 MM,A 069682
