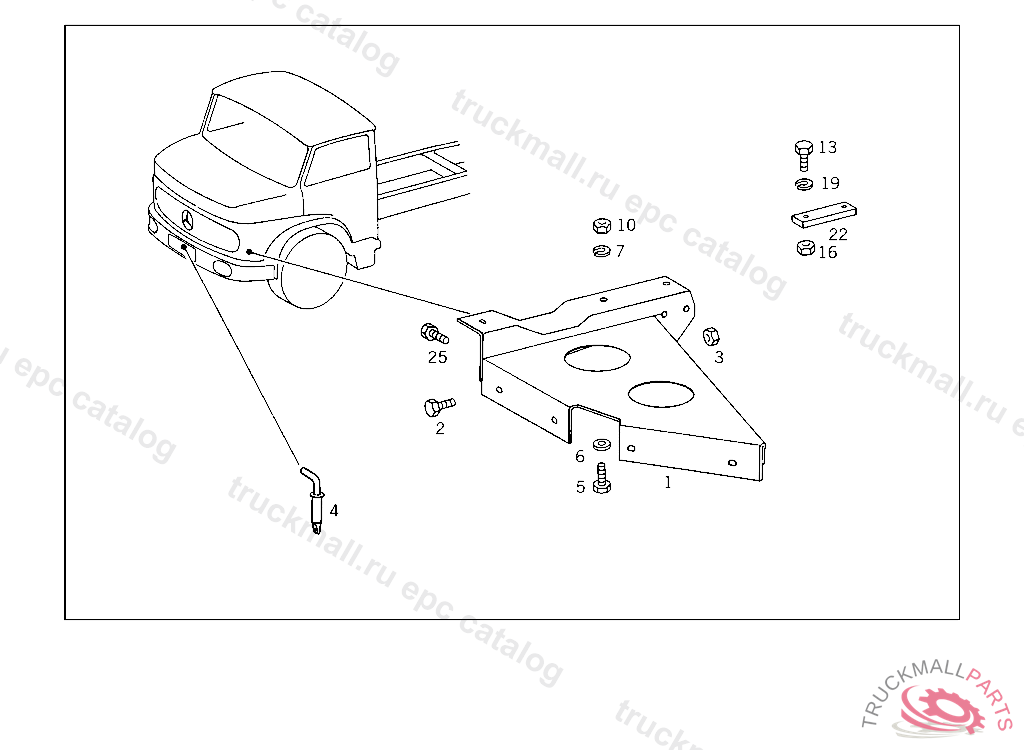

Поз.
Артикул
Описание
1
BRACKET BUMPER,LEFT
1
BRACKET BUMPER,LEFT
1
BRACKET BUMPER,RIGHT
1
BRACKET BUMPER,RIGHT
1
BRACKET BUMPER,RIGHT
1
BRACKET BUMPER,LEFT
2
SCREW REAR EXHAUST PIPE TO MUFFLER
3
NUT BRACKET TO SUPPORT AND TO END PIECE
4
COUPLING PIN ENGINE FRONT CROSS MEMBER TO SIDE MEMBER
5
SCREW BRACKET TO SIDE MEMBER
5
SCREW , Replaced By: N304017010002
6
WASHER RADIATOR TO RUBBER MOUNTING
6
WASHER , Replaced By: N000125010532
7
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
10
NUT BRACKET TO SUPPORT AND TO END PIECE
13
SCREW END PIECE TO EXHAUST PIPE M 10X25
16
NUT BRACKET TO SUPPORT AND TO END PIECE
19
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
22
BASE CONSOLE TO ENGINE CROSS MEMBER
25
SCREW BRACKET TO SIDE MEMBER
25
SCREW , Replaced By: N304017010002
999
STRUT LEFT
999
STRUT RIGHT
999
BASE FOR CROSS MEMBER,704307
999
SCREW BRACKET TO FRAME SIDE MEMBER
