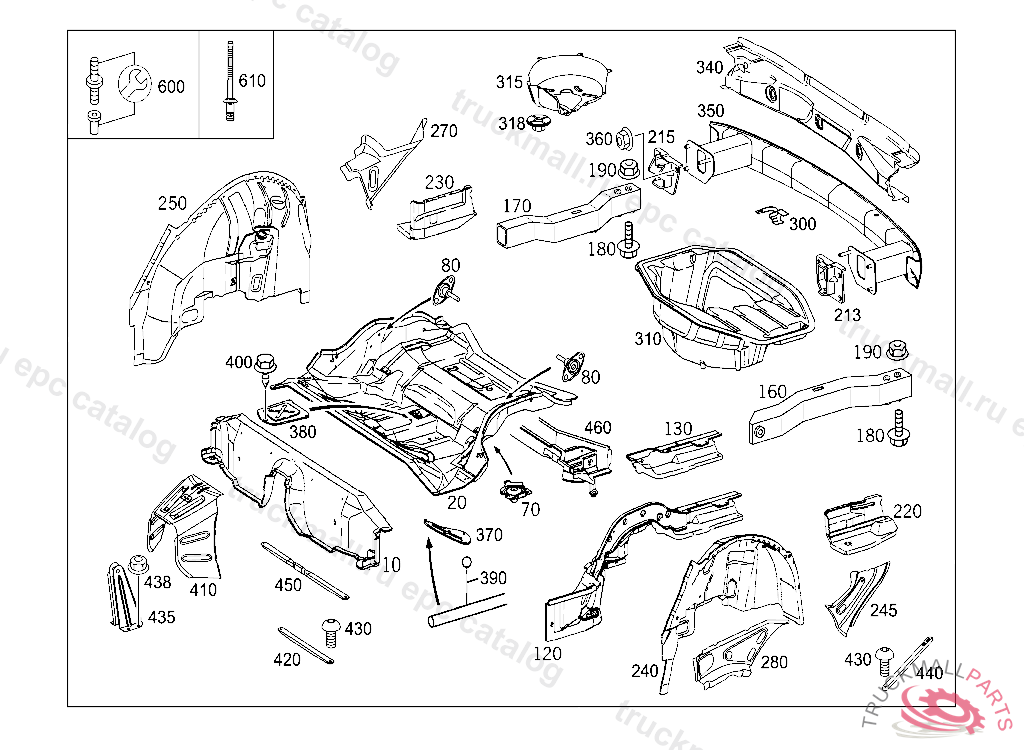

Поз.
Артикул
Описание
10
CROSS MEMBER CROSS MEMBER BELOW REAR SEAT
20
BOTTOM UNDERNEATH REAR SEAT
70
FIXTURE REAR AXLE MOUNTING,FRONT, E 01905120031031 A 57722620030829 F 47884220030831 R 12326120030902, Replaced By: A2036101452
70
TAKE-UP DEVICE REAR AXLE MOUNTING,FRONT, E 01905020031031 A 57722520030829 F 47884120030831 R 12326020030902, Replaced By: A2036101352, +001A0009904303
70
TAKE-UP DEVICE REAR AXLE MOUNTING,FRONT, E 01905120031031 A 57722620030829 F 47884220030831 R 12326120030902
80
BRACKET REAR BACKREST
120
SIDE MEMBER REAR RIGHT
120
SIDE MEMBER REAR LEFT
130
SIDE MEMBER REAR RIGHT
130
SIDE MEMBER REAR LEFT
160
REINFORCEMENT
170
REINFORCEMENT
180
SCREW-AND-WASHER ASSEMBLY REINFORCEMENT FASTENING M10X25
190
NUT-AND-WASHER ASSEMBLY REINFORCEMENT TO SIDE MEMBER M10, A 97499920070630809 E 06000020080901809
190
NUT-AND-WASHER ASSEMBLY RUBBER MOUNTING TO FRAME M8
213
CONSOLE LEFT
215
CONSOLE RIGHT
220
END PIECE LEFT
230
END PIECE RIGHT
240
WHEELHOUSE REAR LEFT
245
STRUT
250
WHEELHOUSE REAR RIGHT
270
SUPPORT RIGHT
280
REINFORCEMENT RIGHT
280
REINFORCEMENT LEFT
300
CONSOLE
310
RECESS
315
COVER AT SPARE WHEEL WELL
318
PLASTIC NUT. NUT
340
CROSS MEMBER REAR
340
CROSS MEMBER REAR, Replaced By: A2096100017
350
CROSS MEMBER REAR
350
CROSS MEMBER REAR
360
NUT-AND-WASHER ASSEMBLY REINFORCEMENT TO SIDE MEMBER M10, A 97499920070630809 E 06000020080901809
370
COVER TANK PUMP
380
COVER FOOT OPERATED PARKING BRAKE
390
SEALING CORD , ORDER BY THE METER
400
SCREW
410
REINFORCEMENT ON TUNNEL
420
STRUT FRONT LEFT AND RIGHT
430
SCREW
430
BOLT STRUT TO SIDE MEMBER
435
BRACKET FASTENING STRUT
438
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
440
STRUT REAR LEFT
440
STRUT REAR RIGHT
460
CROSS MEMBER REAR AXLE TAKE-UP DEVICE
600
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
610
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
