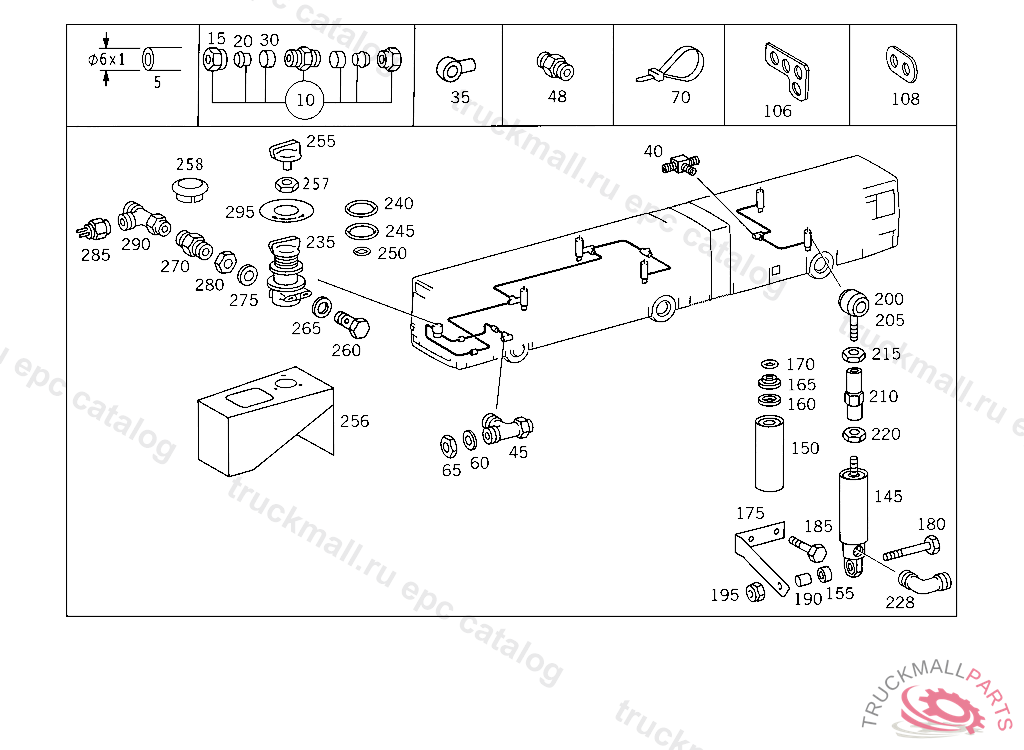

Поз.
Артикул
Описание
5
PLASTIC PIPE RISING PIPE 4X6 MM
10
FITTING (PARTS KIT),LINE RUPTURE
15
UNION NUT
20
GLAND , Replaced By: A0019901667
30
SLEEVE LEAK LINE
35
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
40
DISTRIBUTOR HOSE WIDTH, 6 MM
45
T-FITTING 3/2-WAY VALVE
48
TS DOUBLE FITTING SOLENOID VALVE
48
FITTING AT BRACKET
60
WASHER , Replaced By: N000125015019
60
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
65
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
70
LOOM TIE LINE MOUNTING
106
BRACKET BULKHEAD FITTING
108
BRACKET
145
CYLINDER REAR AXLE PNEUMATIC SUSPENSION
150
CUP
155
MOUNTING
160
SEAL RING
165
SEAL RING
170
SEAL RING
175
BRACKET FRONT AXLE POWER CYLINDER
180
SCREW SHOCK ABSORBER TO CONSOLE
185
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
185
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
190
RING , Replaced By: A4046150417
190
BUSHING CYLINDER TO REAR AXLE BEARING BRACKET
190
SPACER TUBE POWER CYLINDER TO BEARING BRACKET
195
NUT POWER CYLINDER TO SPRING SUPPORT
200
BALL SOCKET BRAKE POWER REGULATOR CONTROL,5 574483
205
BALL SOCKET L.H. THREAD 135 MM
210
NUT FRONT AXLE LEVEL ADJUSTMENT
215
NUT L.H. THREAD
220
NUT OPERATING ROD
228
ELBOW FITTING POWER CYLINDER
235
VALVE (3/2-WAY SOLENOID VALVE)
240
SEAL RING
245
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
245
SEAL RING
245
SEAL RING , Replaced By: A0029971640
250
SEAL RING
255
ACTUATING PARTTO 003 997 24 36,003 997 31 36
256
CONSOLE PNEUMATIC-SUSPENSION CONTROL LINE
257
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
258
EXPANSION PLUG ,030090
260
HOLLOW SCREW LINE CONNECTION
265
SEAL RING , Replaced By: N007603010110
265
SEAL RING PNEUMATIC VALVE
270
FITTING , Replaced By: A0009977172
270
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
275
WASHER , Replaced By: N000125013008
280
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
285
SWITCH RETARDER
290
T-FITTING EXHAUST-BRAKE POWER CYLINDER
295
INSTRUCTION PLATE
999
FITTING HYDRAULIC LINE TO BRACKET,K 130132
999
FITTING FITTING TO BRACKET
999
FITTING 3/2-WAY VALVE,CONNECTION: "30"
999
BRACKET OPERATING ROD TO FRONT AXLE
999
ROD
999
COVERING PARKING BRAKE VALVE
999
SEAL RING , Replaced By: N007603010110
