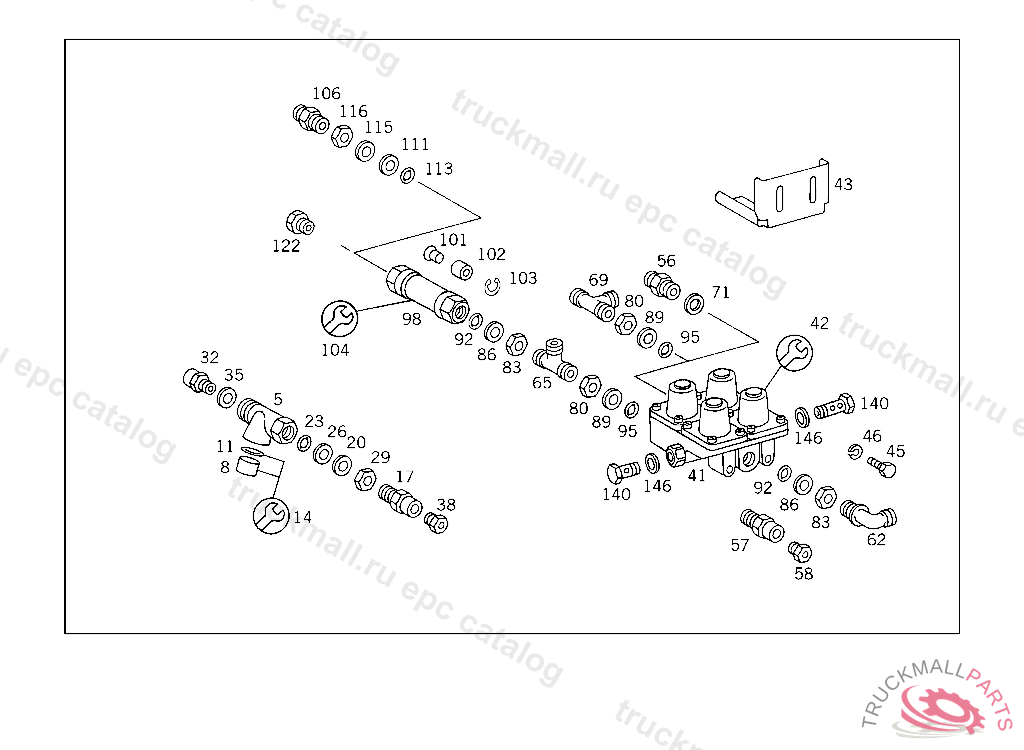

Поз.
Артикул
Описание
5
AIR CLEANER COMPRESSED AIR LINE
5
AIR CLEANER , Replaced By: A0004293895
8
FILTER ELEMENT
8
FILTER ELEMENT , Replaced By: A0025861643
11
SEAL RING39.2X3.0 MM
11
SEAL RINGWABCO 000 0,36.2X3.0 MM
14
REPAIR KITWABCO 000 0
17
FITTING LINE CONNECTION
20
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
23
O-RING CHECK VALVE TO AIR RESERVOIR
26
WASHER
29
NUT CHECK VALVE TO AIR RESERVOIR
32
FITTING LINE CONNECTION
35
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
38
SCREW. UNION SCREW LINE CONNECTION
41
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO
42
REPAIR KITTO 001 431 30 06
43
BRACKET FOUR-CIRCUIT PROTECTIVE VALVE, NOT USED
45
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
45
SCREW , Replaced By: N304017008016
46
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
57
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
57
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
57
FITTING LINE CONNECTION
58
SCREW. UNION SCREW LINE CONNECTION
65
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "23"
69
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10",TO M 22, VOSS 232
69
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
69
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
69
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "10"
71
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
80
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
83
NUT CHECK VALVE TO AIR RESERVOIR
86
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
89
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
92
O-RING CHECK VALVE TO AIR RESERVOIR
95
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
98
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
101
VALVE SEAT RINGWABCO,5 433388
102
BUSHINGWABCO,5 433388
103
LOCK RINGWABCO,5 433388
104
REPAIR KIT CHECK TO 003 429 07 44
106
FITTING LINE CONNECTION
111
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
113
O-RING CHECK VALVE TO AIR RESERVOIR
115
SEAL RING LINE CONNECTION
116
NUT CHECK VALVE TO AIR RESERVOIR
122
SCREW. UNION SCREW LINE CONNECTION
140
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
146
SEAL RINGTO 006 997 00 72
