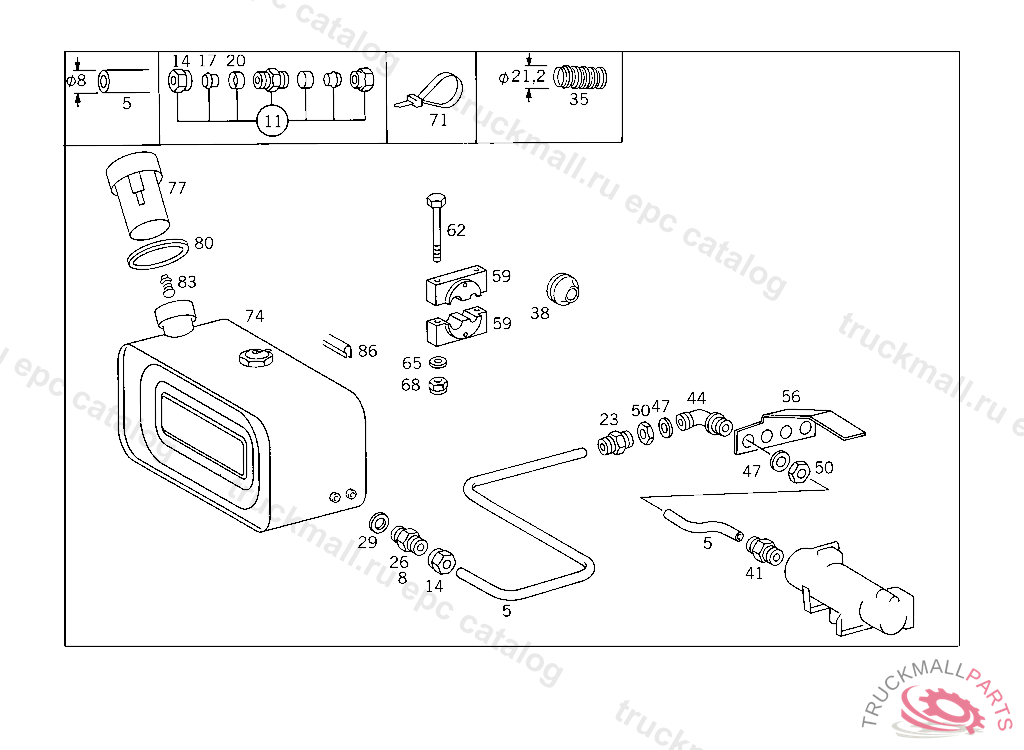

Поз.
Артикул
Описание
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
5
PLASTIC PIPE AERATION, ORDER BY THE METER
8
DOUBLE FITTING
11
FITTING (PARTS KIT),LINE RUPTURE
14
UNION NUT RETURN
14
UNION NUT LINE CONNECTION
17
GLAND LINE CONNECTION
20
SLEEVE LINE CONNECTION
23
FITTING RETURN LINE
29
SEAL RINGTO 000 553 03 05,000 553 18 05,
38
GROMMET
62
SCREW APPARATUS PLATE M 6X80
68
NUT PUMP TO BRACKET
68
NUT , Replaced By: N913004006001
71
LOOM TIE LINE MOUNTING
74
FUEL TANK (FUEL-OIL TANK)
77
FILLER CAP , TO BE ADAPTED DURING ASSEMBLY
80
GASKET
80
GASKET
83
VALVE FUEL TANK
