Поз.
Артикул
Описание

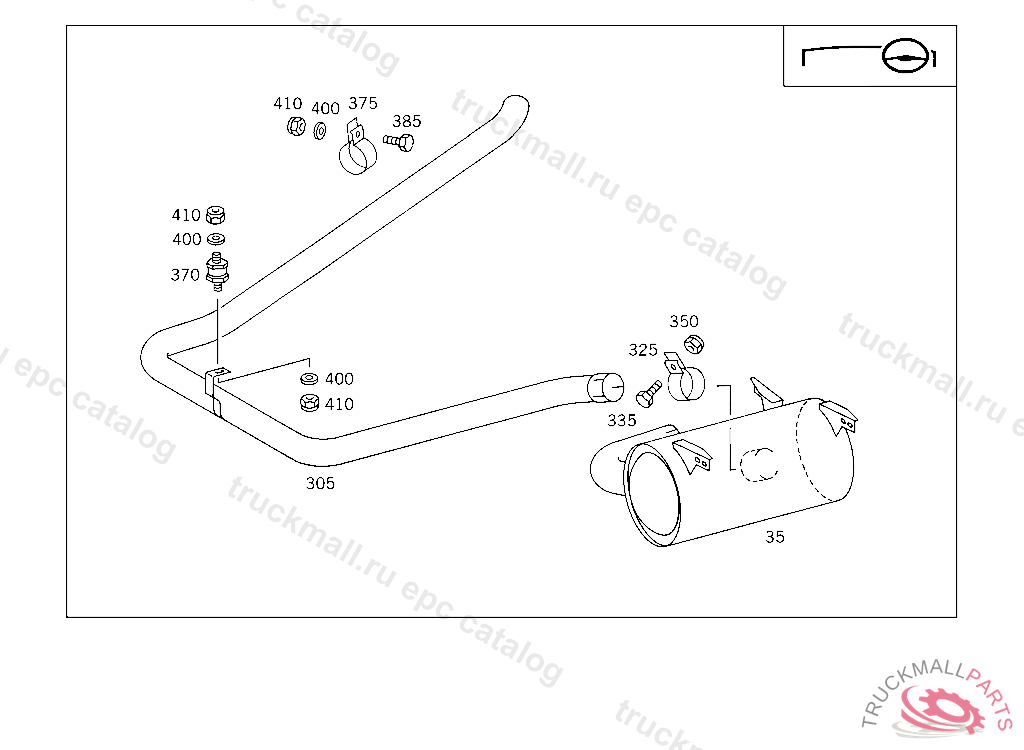

35
EXHAUST MUFFLER
305
EXHAUST PIPE (TAIL PIPE)
305
EXHAUST PIPE (TAIL PIPE)
325
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
325
CLAMP , Replaced By: N071555104501
335
SCREW END PIECE TO EXHAUST PIPE M 10X25
350
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
370
RUBBER BUFFER BRACKET TO SUPPORT
375
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
385
SCREW , Replaced By: N304017010002
385
SCREW BRACKET TO SIDE MEMBER
400
WASHER RADIATOR TO RUBBER MOUNTING
400
WASHER , Replaced By: N000125010532
410
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
999
INSULATION REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
EXHAUST PIPE REAR
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE (TAIL PIPE)
999
BRACKET
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE1273,1 MM,076650
999
BRACKET AT BRACKET
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE TAIL PIPE
999
END PIECE REAR EXHAUST PIPE
999
END PIECE REAR EXHAUST PIPE,076650
999
END PIECE REAR EXHAUST PIPE
999
END PIECE REAR EXHAUST PIPE,076650
999
DAMPING PAD , Replaced By: A0004920082
999
BRACKET
999
BRACKET
999
PROTECTIVE PLATE REAR EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE REAR
999
EXHAUST PIPE
999
EXHAUST MUFFLER
999
BRACKET EXHAUST PIPE TO SUPPORT
999
BRACKET REAR EXHAUST PIPE,079546
999
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
999
BUSHING EXHAUST PIPE TO BRACKET
999
REAR EXHAUST PIPE
999
EXHAUST PIPE (TAIL PIPE), NOT USED
999
RUBBER BUFFER COVERING TO FRAME
999
DAMPING PAD EXHAUST MUFFLER TO SUBSTRUCTURE,047203
