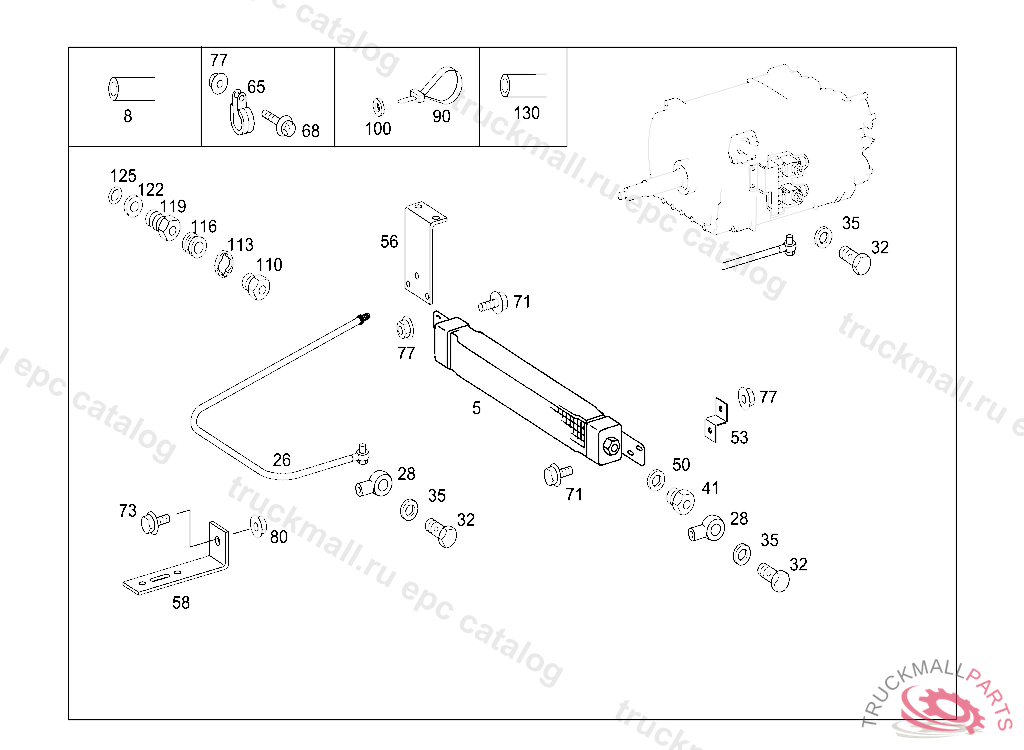

Поз.
Артикул
Описание
5
OIL COOLER
5
OIL COOLER (OIL COOLER)
8
PLASTIC PIPE FRONT AXLE PNEUMATIC SUSPENSION 12X9 MM, ORDER BY THE METER
8
PLASTIC PIPE8X6 MM, ORDER BY THE METER
8
PLASTIC PIPE AERATION, ORDER BY THE METER
28
BANJO UNION10/14
28
BANJO UNION HOSE WIDTH, / I.D., 10/16 MM
32
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
32
HOLLOW SCREW
32
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
35
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
35
SEAL RING FUEL LINE TO FEED PUMP
41
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
50
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
53
BRACKET OIL COOLER TO RADIATOR
58
BRACKET FUEL LINE TO SIDE MEMBER
58
BRACKET LEFT SIDE MEMBER,D 030553
65
CLAMP LINES TO BRACKET
65
CLAMP , Replaced By: N916016010211
65
CLAMP BRAKE HOSE BRACKET
68
SCREW. HEXALOBULAR BOLT BRACKET TO RIGHT FRONT FENDER M8X30
68
SCREW GUIDE TUBE TO BRACKET M6X16,*0354969
71
SCREW , Replaced By: N910143008002
73
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
73
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
77
NUT , Replaced By: N913023006001
77
NUT HORN TO BRACKET M8
80
NUT HORN TO BRACKET M8
90
LOOM TIE ELECTRIC CABLE MOUNTING
130
INSULATING HOSE CHECK VALVE,CONNECTION "2"
130
INSULATING HOSE , ORDER BY THE METER
